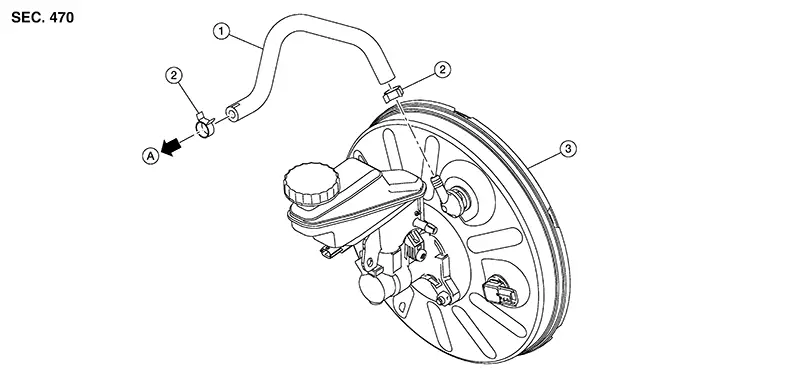

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Vacuum hose |
2. |
Hose clamp |
3. |
Brake booster |
|
A. |
To vacuum pump. Refer to Exploded View. |
Vacuum Lines
...
Removal and Installation
Removal and Installation
REMOVAL
Separate
the vacuum hose from the brake booster. Refer to Exploded View.
Remove the
vacuum hose from the vacuum pump.
INSTALLATION
Installation i ...
