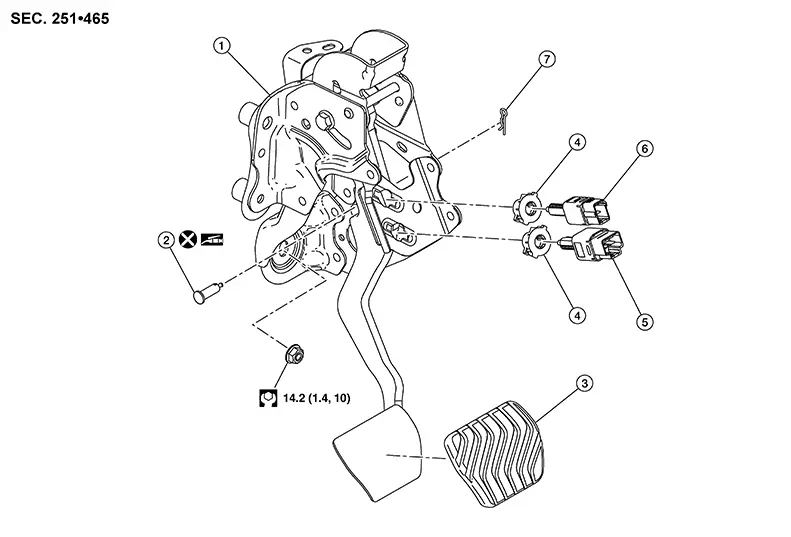

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Brake pedal assembly |
2. |
Clevis pin |
3. |
Brake pedal pad |
|
4. |
Clip |
5. |
Stop lamp switch |
6. |
Brake pedal position switch |
|
7. |
Snap pin |
The CVT brake pedal assembly is shown. The 6MT brake pedal assembly is similar.
Brake Pedal
...
Removal and Installation
Removal and Installation
REMOVAL
Remove the
bolts and separate the accelerator pedal assembly from the brake
pedal assembly. Refer to Exploded View. Note:
Leave the harness connecto ...
