Nissan Sentra B18 (2020-2025) Service Manual: Exploded View

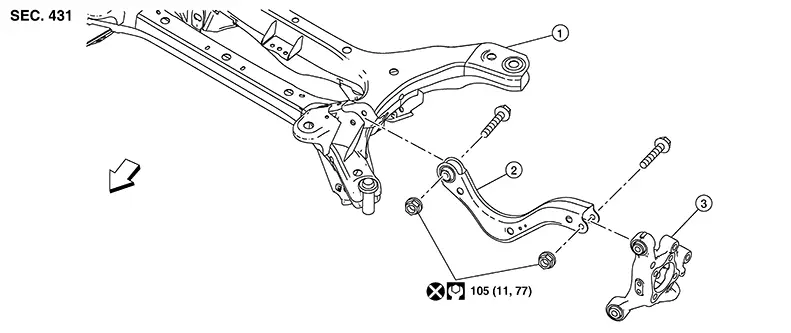

With Drum Brake
|
1. |
Rear suspension member |
2. |
Rear suspension arm |
3. |
Rear knuckle |
|
|
Front |

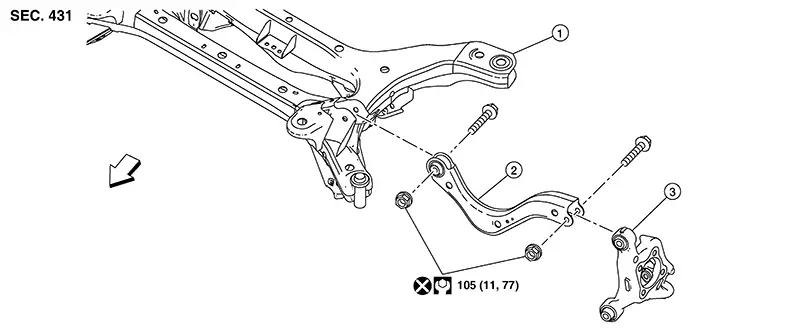

With Disc Brake
|
1. |
Rear suspension member |
2. |
Rear suspension arm |
3. |
Rear knuckle |
|
|
Front |
Radius Rod
...
Removal and Installation
Removal and Installation
Removal
Remove rear
suspension member. Refer to Removal and Installation.
Remove the
suspension arm from the knuckle using power tool.
Remove the
sus ...
