Nissan Sentra B18 (2020-2025) Service Manual: Exploded View

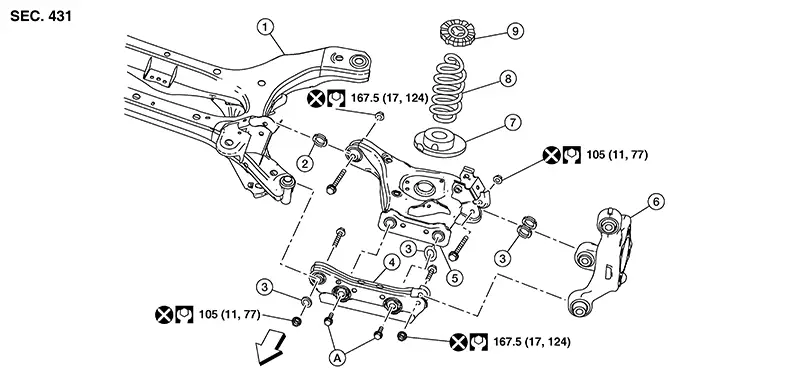

With Drum Brake
|
1. |
Rear suspension member |
2. |
Washer |
3. |
Washer |
|
4. |
Front lower link |
5. |
Rear lower link |
6. |
Rear knuckle |
|
7. |
Lower seat |
8. |
Spring |
9. |
Upper seat |
|
|
Front |
With Disc Brake
|
1. |
Rear suspension member |
2. |
Washer |
3. |
Washer |
|
4. |
Front lower link |
5. |
Rear lower link |
6. |
Rear knuckle |
|
7. |
Lower seat |
8. |
Spring |
9. |
Upper seat |
|
|
Front |
Rear Lower Link
...
Removal and Installation
Removal and Installation
REMOVAL
Remove rear
suspension member. Refer to Removal and Installation.
Remove the
front and rear lower link nut and bolt from the rear suspension
membe ...
