Nissan Sentra Owners Manual: Engine compartment check locations

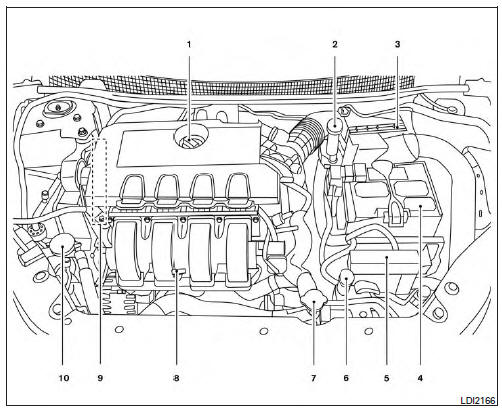

MRA8DE engine
- Engine oil filler cap
- Brake and clutch (if so equipped) fluid reservoir
- Air cleaner
- Battery
- Fuse/fusible link box
- Engine coolant reservoir
- Radiator cap
- Engine oil dipstick
- Drive belt location
- Windshield-washer fluid reservoir
