Nissan Sentra B18 (2020-2025) Service Manual: Drive Belt Auto Tensioner

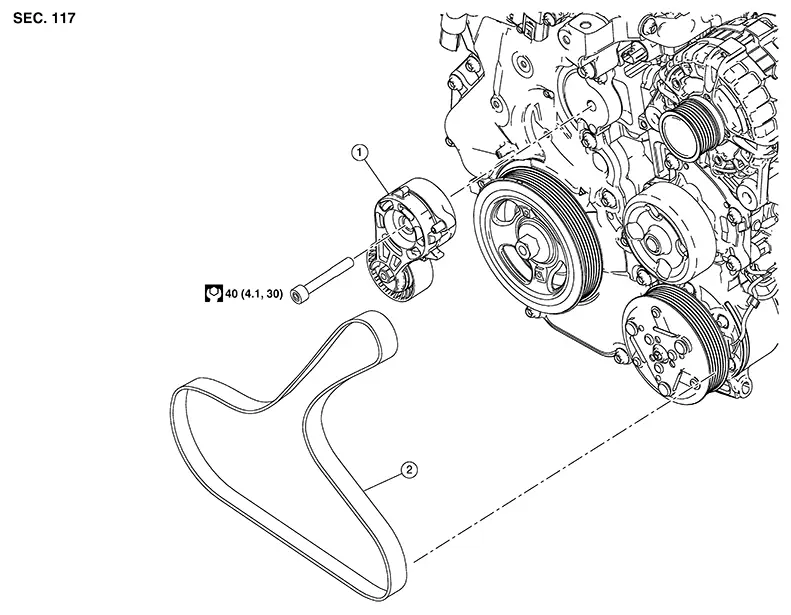

Exploded View

Exploded View

1.

Drive belt auto tensioner

2.

Drive belt

Removal and Installation

Removal and Installation

REMOVAL

Remove the drive belt. Refer to Removal and Installation.

Separate the exhaust front tube from the exhaust manifold. Refer to Exploded View.

Remove the front under cover. Refer to Removal and Installation.

Support the engine and transaxle assembly using a suitable jack.

CAUTION:

Do not damage oil pan (lower) or transaxle oil pan when supporting engine.

  • Place a piece of wood or equivalent between the suitable jack and supporting surface and secure in a stable condition.

Remove the bolts securing the engine mounting insulator (RH) to the engine assembly. Refer to Exploded View.

Align drive belt auto tensioner bolt with hole in front side member and remove drive belt auto tensioner bolt.

Remove drive belt auto tensioner.

INSTALLATION

Installation is in the reverse order of removal.
