Nissan Sentra B18 (2020-2025) Service Manual: Connector Information

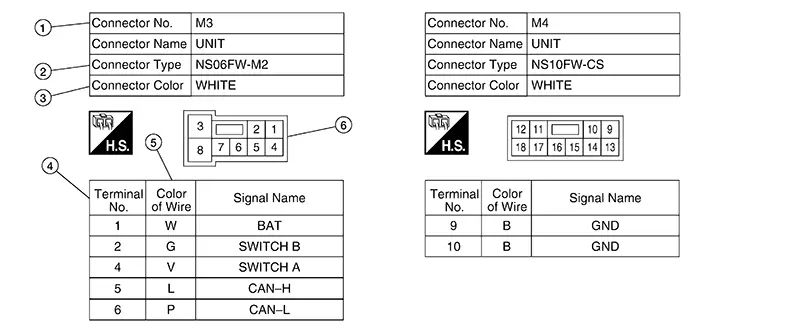

1

Connector number

• Alphabetic characters show to which harness the connector is placed.

• Numeric characters show the identification number of connectors.

2

Connector type

: Connector model

: Cavity

: Male (M) and female (F) terminals

: Connector color

: Special type

3

Connector color

• This means the color of a connector.

4

Terminal number

• This means the terminal number of a connector.

5

Wire color

• This shows a code for the color of the wire.

B = Black

W = White

R = Red

G = Green

L = Blue

Y = Yellow

LG = Light Green

BG or BE = Beige

BR = Brown

LA = Lavender

OR or O = Orange

P = Pink

PU or V (Violet) = Purple

GY or GR = Gray

SB = Sky Blue

CH = Dark Brown

DG = Dark Green

• When the wire color is striped, the base color is given first followed by the stripe color as shown below:

  Example: L/W = Blue with White Stripe

6

Connector

• This means the connector information.

• This unit-side is described by the connector symbols.
