Nissan Sentra B18 (2020-2025) Service Manual: Air Cleaner Filter

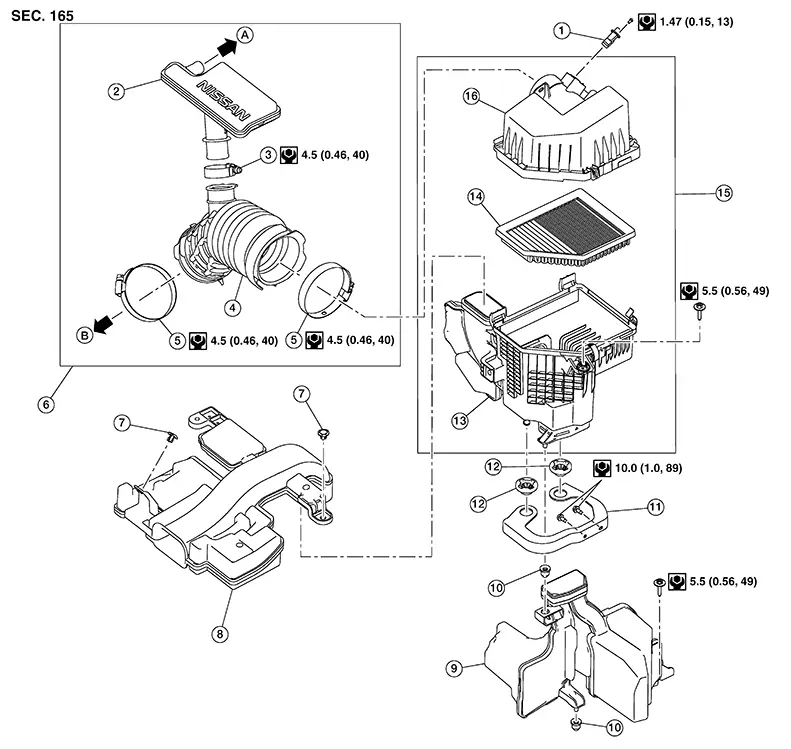

Exploded View
|
1. |
Mass air flow sensor |
2. |
Resonator duct |
3. |
Clamp |
|
4. |
Air duct |
5. |
Clamp |
6. |
Air duct and resonator assembly |
|
7. |
Clip |
8. |
Air inlet duct |
9. |
Resonator |
|
10. |
Mounting rubber |
11. |
Air cleaner bracket |
12. |
Grommet |
|
13. |
Air cleaner case (lower) |
14. |
Air cleaner filter |
15. |
Air cleaner assembly |
|
16. |
Air cleaner case (upper) |
A. |
To blow-by hose. Refer to Exploded View. |
B. |
To electric throttle control actuator. Refer to Exploded View. |
Removal and Installation
REMOVAL
Release clips and separate the air cleaner case (upper) from the air cleaner case (lower).
Remove the air cleaner filter.
INSTALLATION
Installation is in the reverse order of removal.
Inspection (viscous Paper Type)
INSPECTION AFTER REMOVAL
Examine with eyes that there is no stain, clogging, or damage on air cleaner filter.
-
Remove dusts (such as dead leafs) on air cleaner filter surface and inside cleaner case.
-
If clogging or damage is observed, replace the air cleaner filter.
CAUTION:
Do not clean the viscous paper type air cleaner filter by blowing as there is a risk of deterioration of its performance
MAINTENANCE INTERVAL
Refer to Introduction of Periodic Maintenance.
