Nissan Sentra B18 (2020-2025) Service Manual: Body Construction

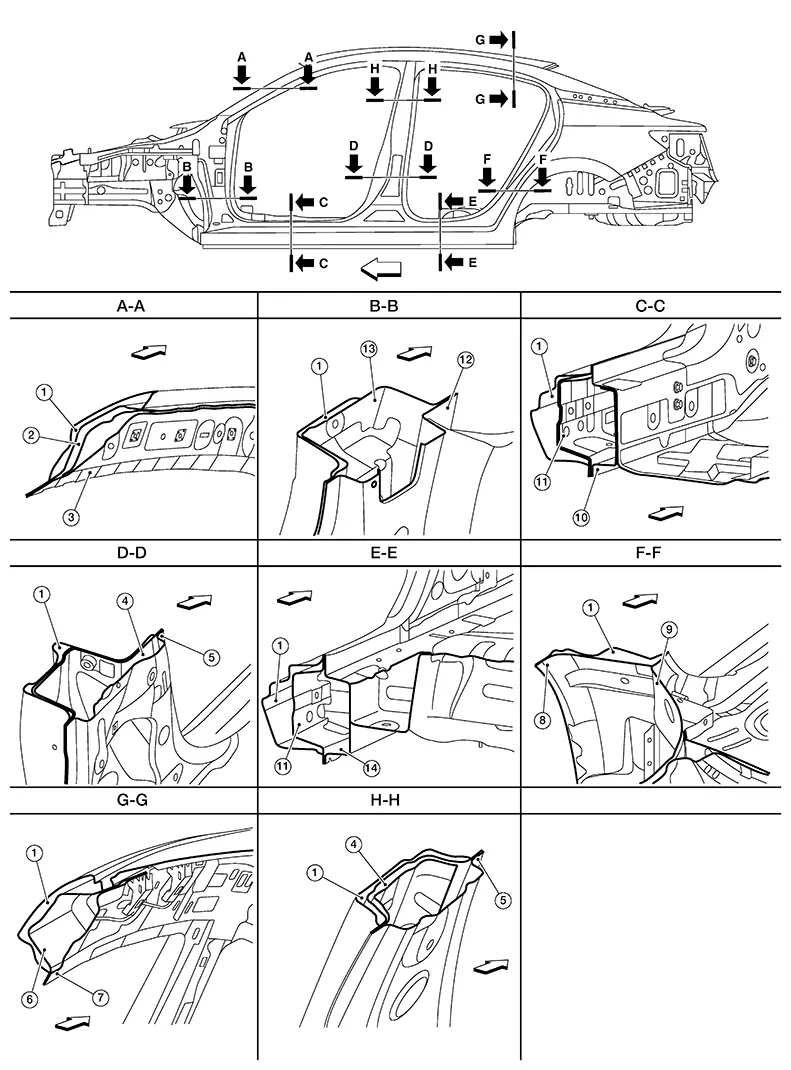

Body Construction

Body Construction

1.

Body side outer

2.

Front pillar outer reinforcement

3.

Front pillar upper inner

4.

Center pillar reinforcement

5.

Center pillar inner

6.

Roof side rail outer reinforcement

7.

Roof rail rear brace

8.

Rear outer wheelhouse

9.

Rear inner wheelhouse

10.

Sill inner

11.

Sill outer reinforcement

12.

Dash side

13.

Front pillar upper hinge brace

14.

Sill inner extension



Fusible Insulator Applying Part

Fusible Insulator Applying Part

Note:

Service replacement fusible insulator material is available in varying thickness. Always check with the Parts Department for the latest parts information.

Apply the fusible insulator to prevent road noise, vibration and exhaust system heat inside the Nissan Sentra vehicle.

The service replacement material is cut-to-fit and not supplied in the same shape as original factory installed fusible insulator.

Place the fusible insulators in the positions shown in the figure and properly affix them to the Nissan Sentra vehicle surface.

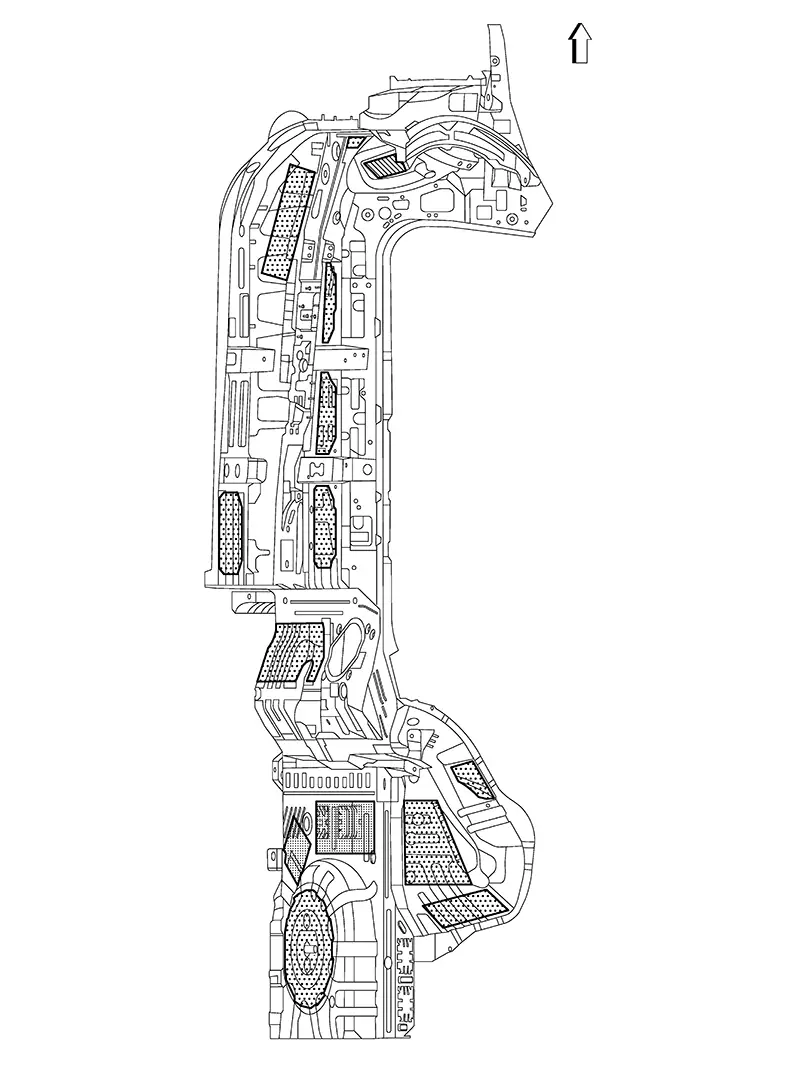

Unit: mm (in)

: Fusible insulator thickness 2.0 (0.08)

: Fusible insulator thickness 3.0 (0.12)

Front

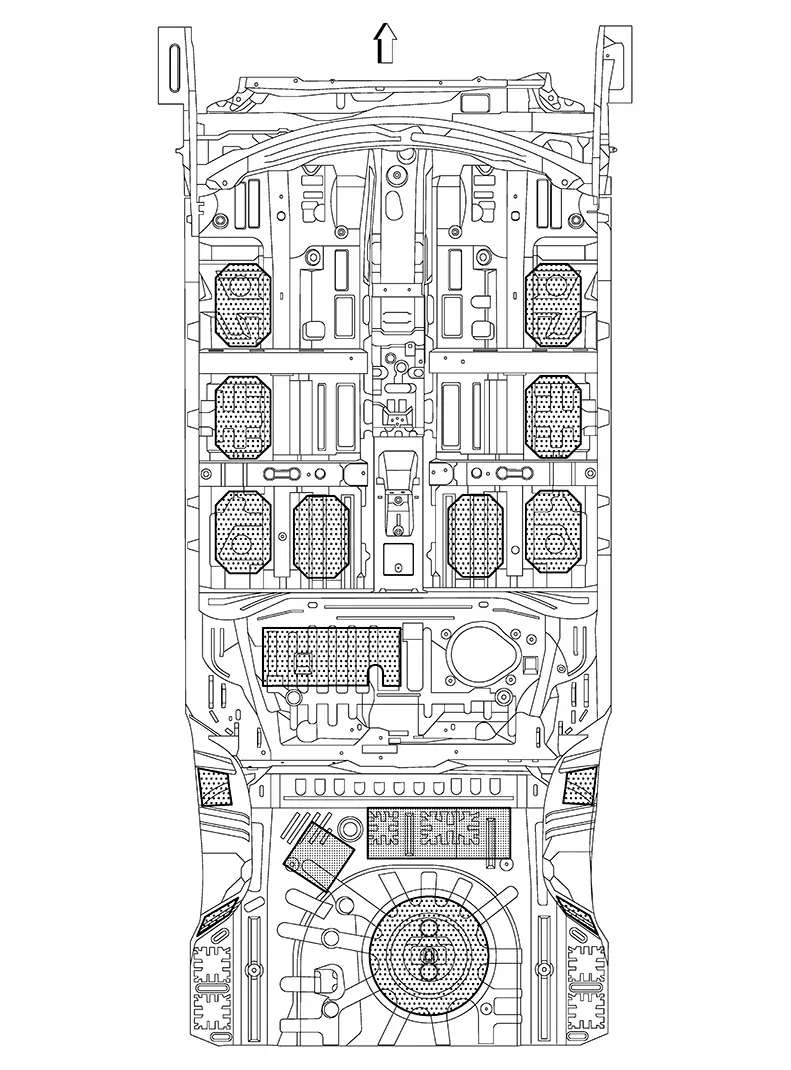

Unit: mm (in)

: Fusible insulator thickness 2.0 (0.08)

: Fusible insulator thickness 1.8 (0.7)

: Fusible insulator thickness 3.0 (0.12)

Front

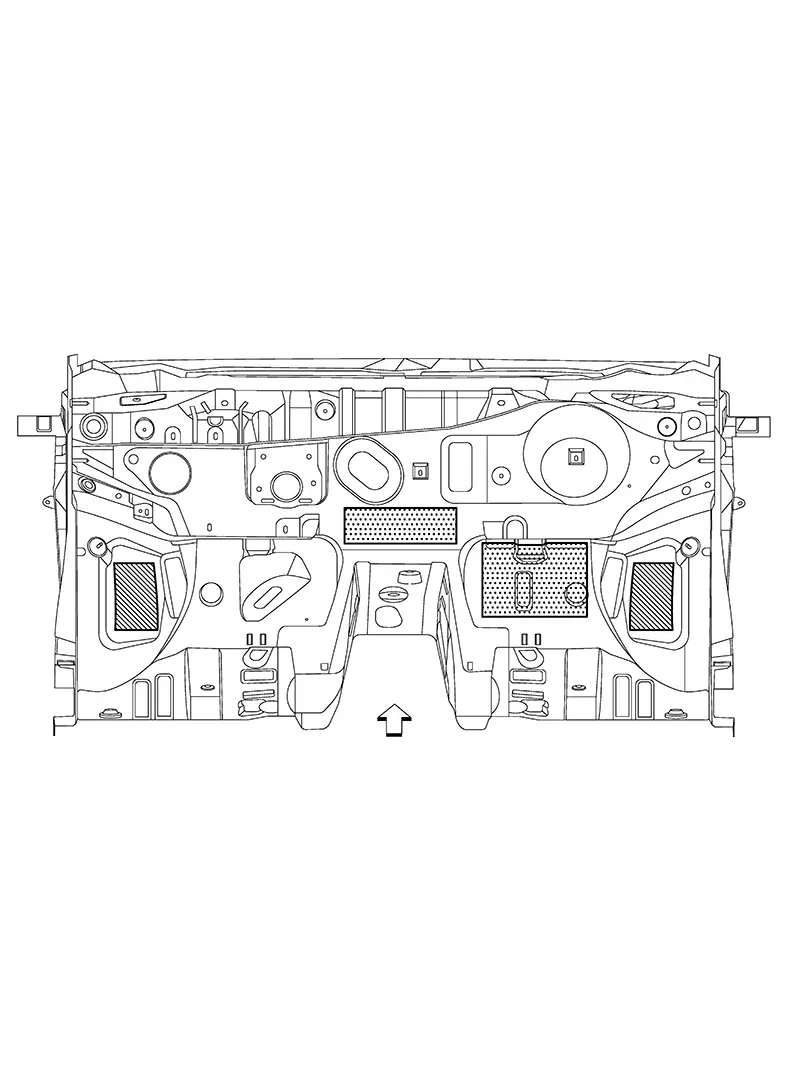

Unit: mm (in)

: Fusible insulator thickness 2.0 (0.08)

: Fusible insulator thickness 1.8 (0.7)

: Fusible insulator thickness 3.0 (0.12)

Front
