Precautions for Body Repair
Warning:
The repair information in this section is intended for trained body repair technicians who have attained a high level of skill and experience (e.g. ASE Collision Repair Certification, I-CAR Professional Development Program [PDP] training, etc.) in repairing collision damaged Nissan Sentra vehicles using appropriate tools and equipment. Performing repairs without the proper training, tools or equipment could damage the Nissan Sentra vehicle or cause personal injury or death to you or others.
The information in this Body Repair Manual is a guideline for repairing collision damaged Nissan Sentra vehicles. However, this information cannot cover all possible ways that a vehicle can be damaged. As such, the body repair technician is responsible for making sure that the repair does not affect the structural integrity or safety of the Nissan Sentra vehicle. Improper repair of a damaged vehicle may result in a collision, property damage, personal injury or death.
Nissan recommends using only new genuine Nissan replacement body parts. Use of used, salvaged or aftermarket body parts is not recommended by Nissan. Non-genuine Nissan components may affect the Nissan Sentra vehicle's structural integrity and crash safety performance, which could result in serious personal injury or death in an accident.
Description
Technicians are encouraged to read the Body Repair Manual (Fundamentals) in order to ensure that the original functions and quality of the Nissan Sentra vehicle are maintained. The Body Repair Manual (Fundamentals) contains additional information, including cautions and warnings, that are not included in this manual. Technicians should refer to both manuals to ensure proper repair.
Please note that this information is prepared for worldwide usage, and as such, certain procedures might not apply in some regions or countries.
The symbols used in this section for welding operations are shown below.
|
Symbol marks |
Description |
|
|---|---|---|
|
"Number" |
"Number" after symbol mark is the total number of welds to apply. Example 1: â– "4"A = 4 MAG plug welds for 3-panel plug weld method. Example 2: |
|
![]() |
2-panel spot weld |
![]() |
![]() |
3-panel spot weld |
|
![]() |
MAG plug weld |
![]() |
|
For 3-panel plug weld method
|
||
![]() |
MAG seam weld / Point weld |
![]() |
![]() |
Rivet |
![]() |

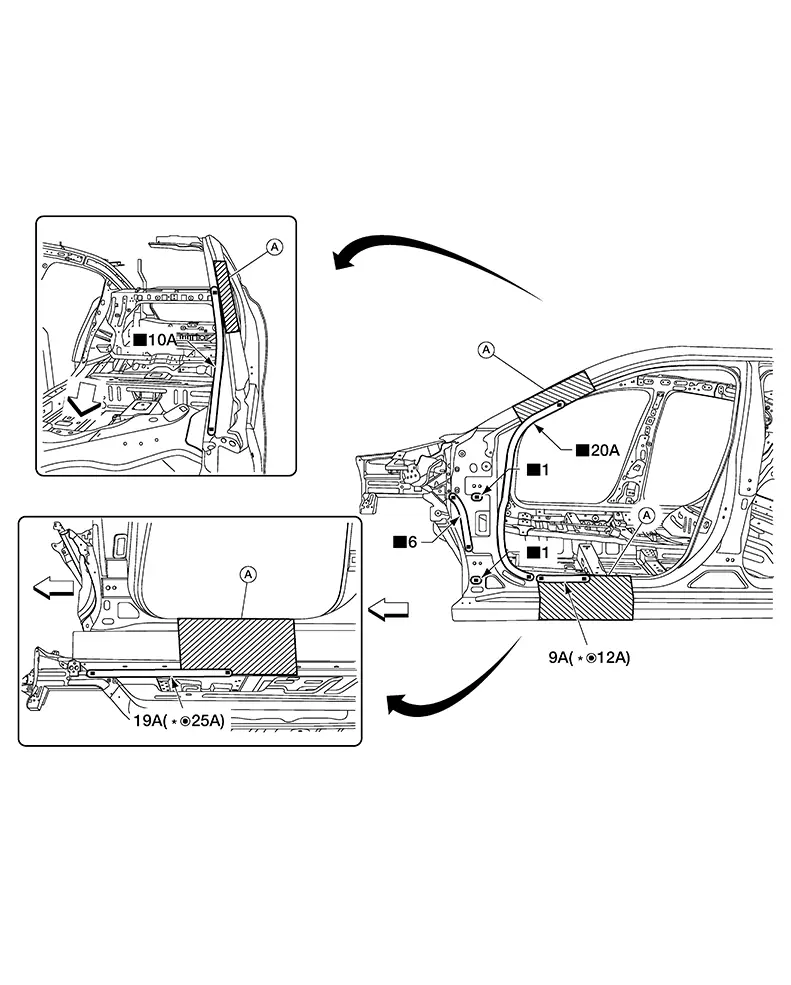

Front pillar butt joint can be determined anywhere within shaded area as shown in the figure. The best location for the butt joint is at position A due to the construction of the Nissan Sentra vehicle.
Determine cutting position and record distance from the locating indent. Use this distance when cutting the service part. Cut outer front pillar over 60 mm (2.36 in) above the inner front pillar cut position.
Prepare a cutting jig to make outer pillar easier to cut. Also, this will permit the service part to be accurately cut at the joint position.
An example of cutting operation using a cutting jig is as per the following.
Mark cutting lines.
A: Cut position of outer pillar
B: Cut position of inner pillar
Align cutting line with notch on jig. Clamp jig to pillar.
Cut outer pillar along groove of jig (at position A).
Remove jig and cut remaining portions.
Cut inner pillar at position B in same manner.

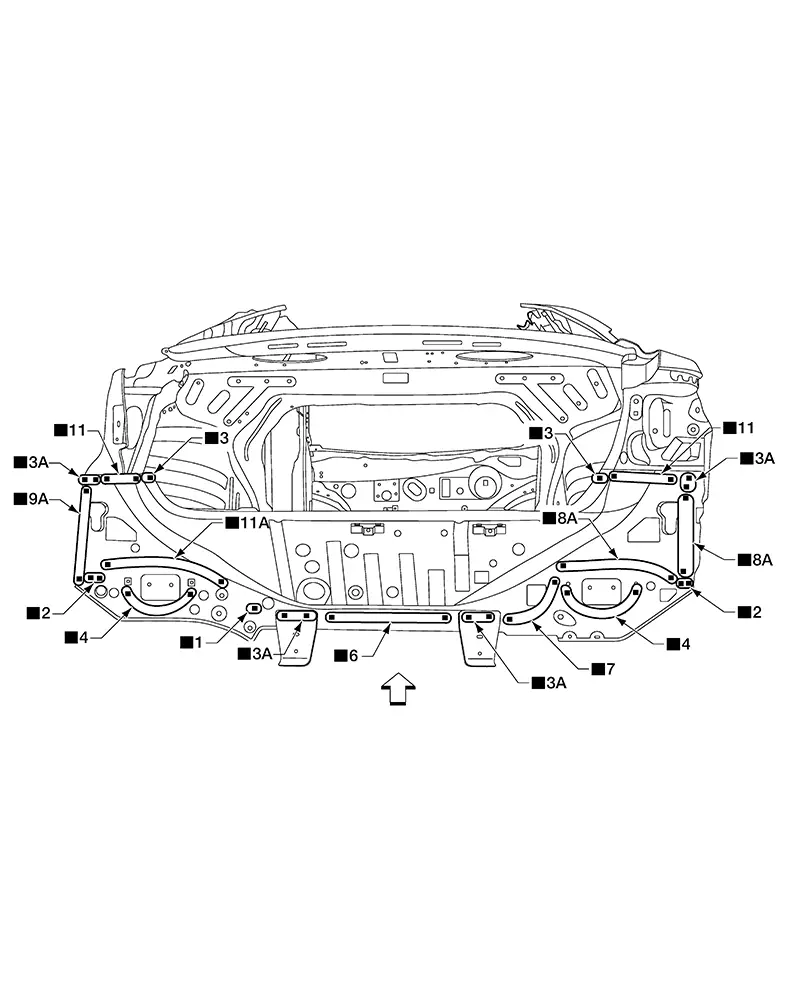

Radiator Side Support
|
Replacement parts: |
|||||
|
• |
Radiator side support |
||||
|
|
Front |
||||

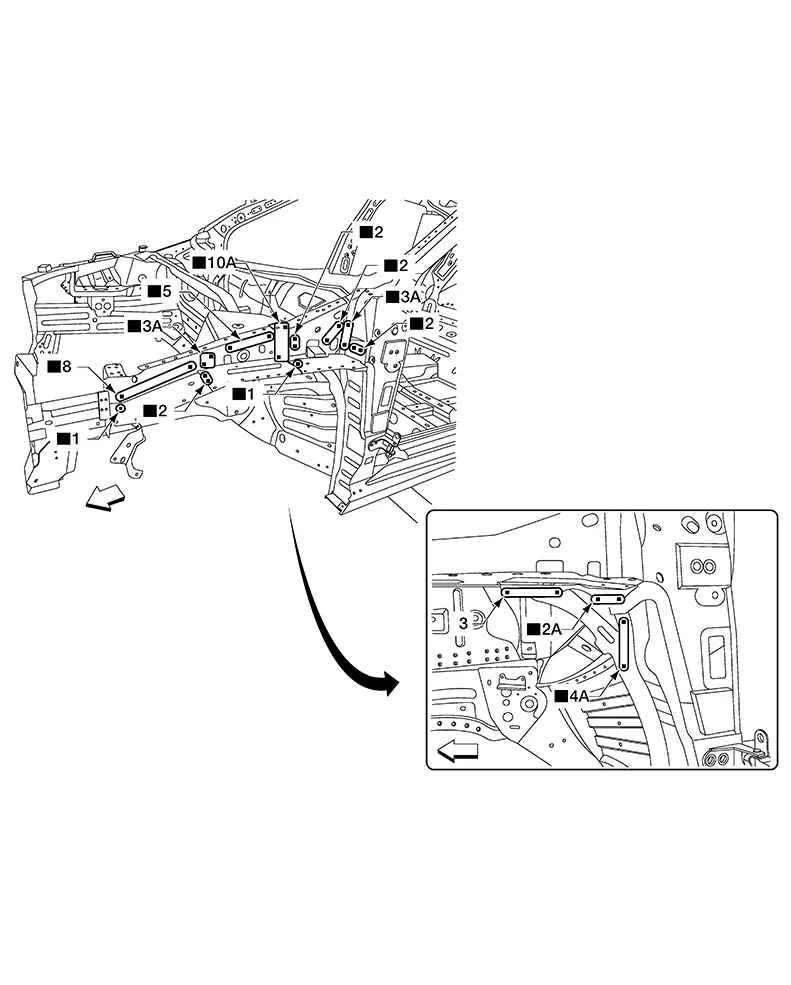

Hoodledge
Work after radiator side support has been removed.
|
Replacement parts: |
|||||
|
• |
Hoodledge |
![]() |
Front |
||
Hoodledge reinforcement
Work after radiator side support and hoodledge have been removed.
|
Replacement parts: |
|||||
|
• |
Hoodledge reinforcement |
![]() |
Front |
||
Strut Housing
Work after Radiator side support and hoodledge assembly have been removed.
|
Replacement parts: |
|||||
|
• |
Strut Housing |
||||
|
|
Front |
||||

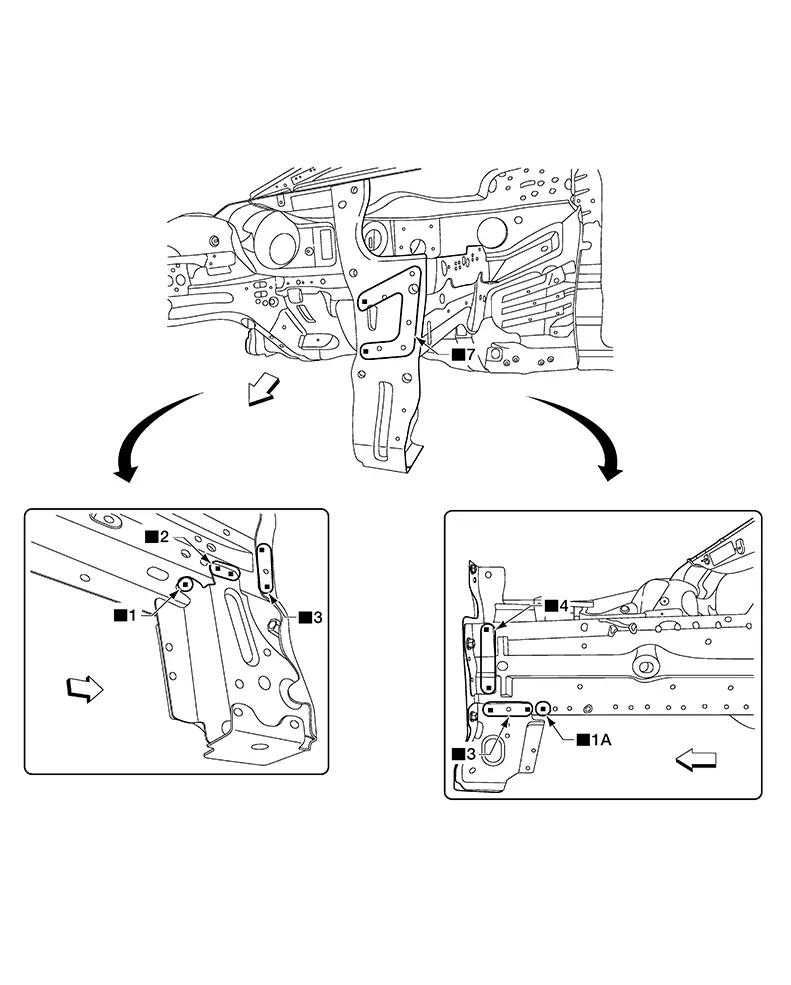

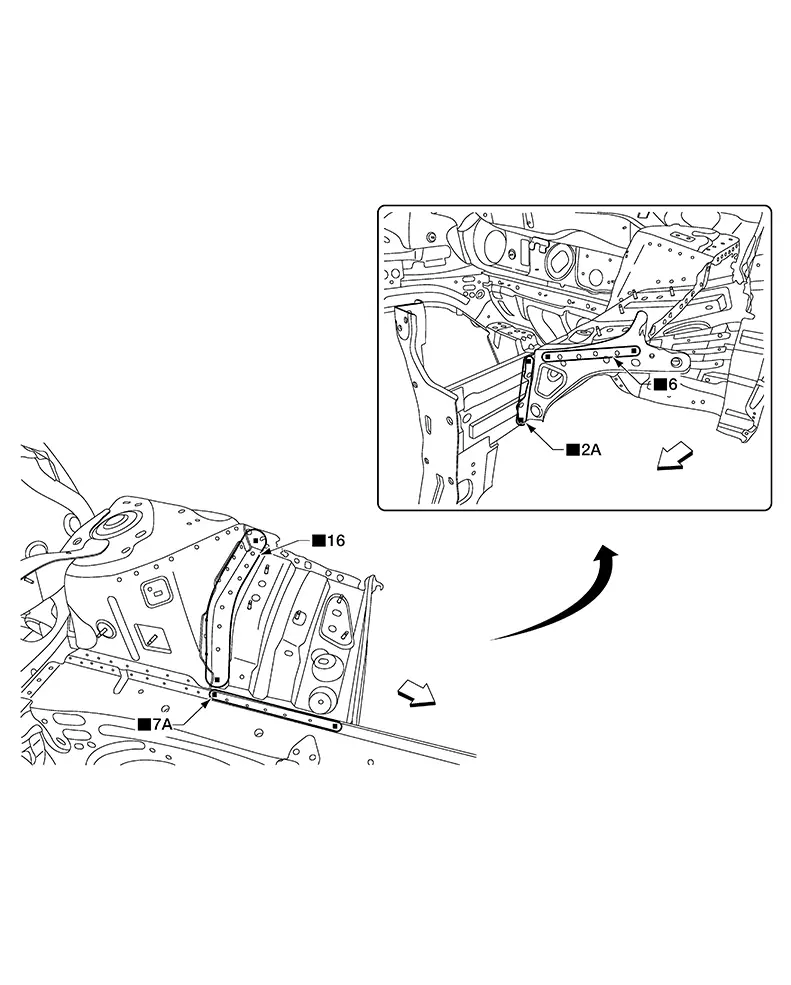

Strut Housing Extension
|
Replacement parts: |
|||||
|
• |
Strut housing extension |
||||
|
|
Front |
||||

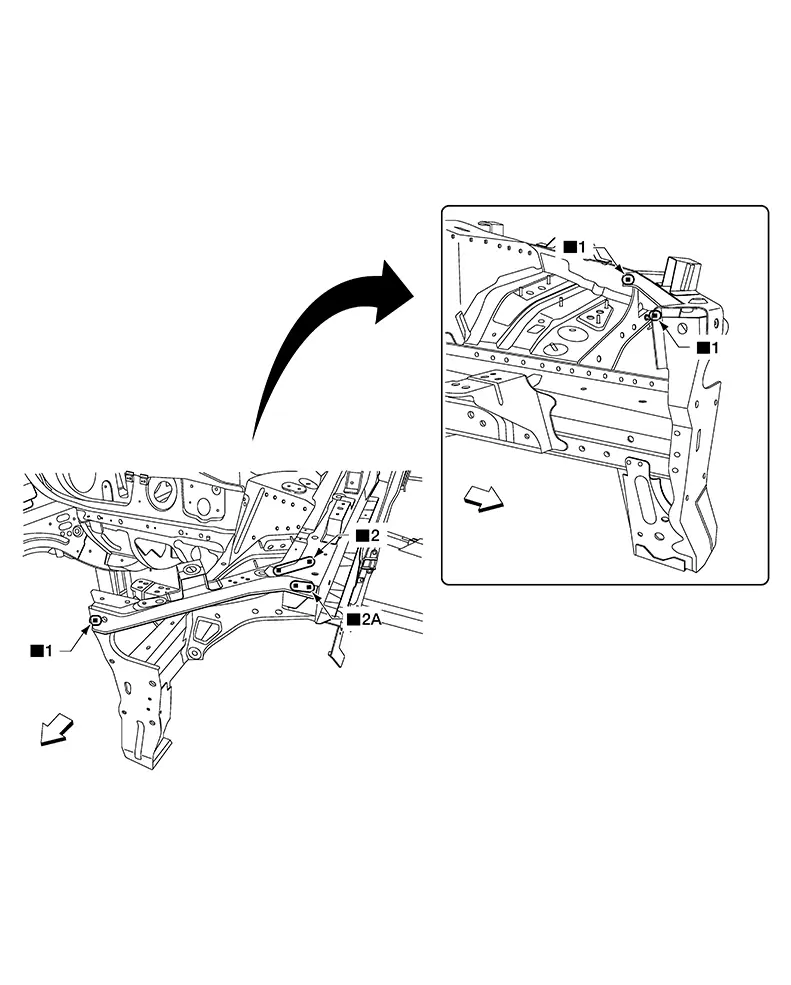

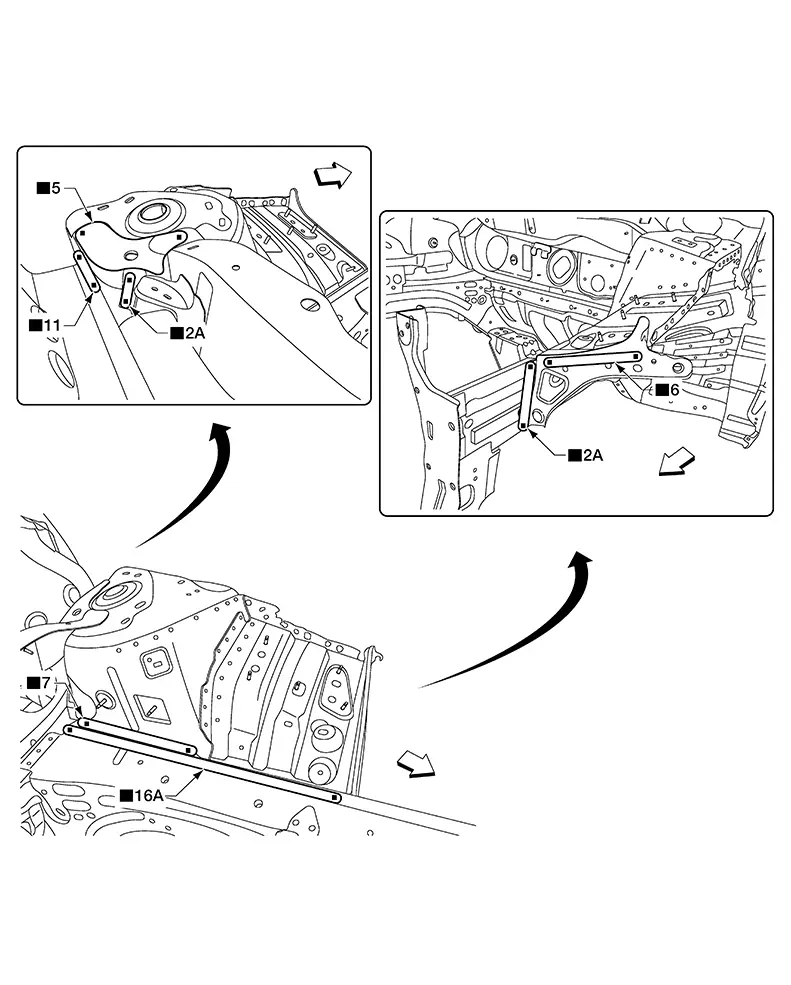

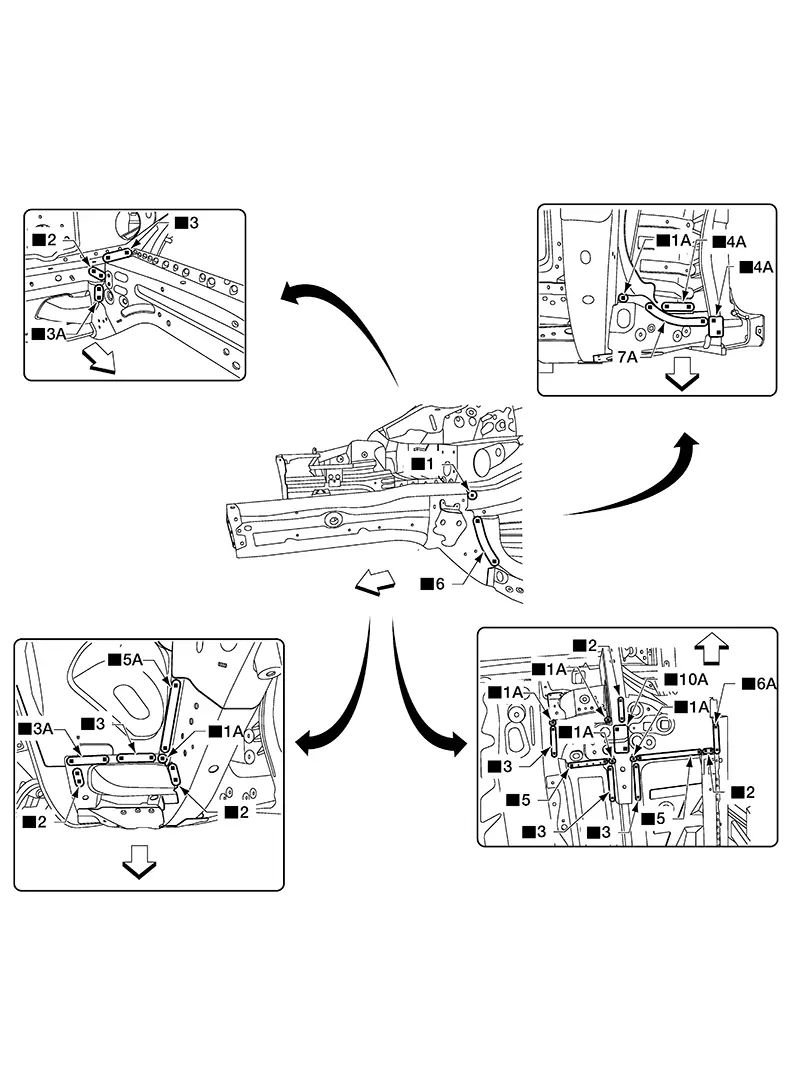

Front Side Member (partial Replacement)
Work after Radiator side support, hoodledge assembly and front strut housing assembly have been removed.
|
Replacement part: |
|||||
|
• |
Front side member outer |
|
Front |
||
FRONT SIDE MEMBER INNER
|
Replacement part: |
|||||
|
• |
Front side member inner |
|
Front |
||

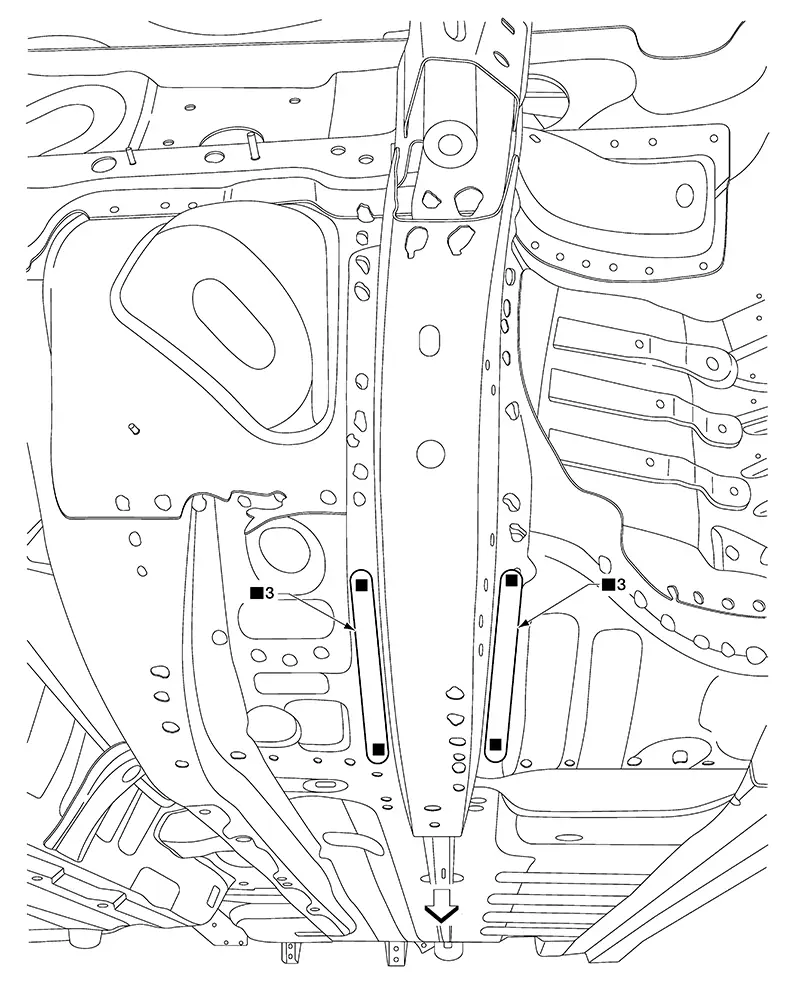

FRONT SIDE MEMBER EXTENSION
|
Replacement parts: |
|||||
|
• |
Front side member extension |
|
Front |
||

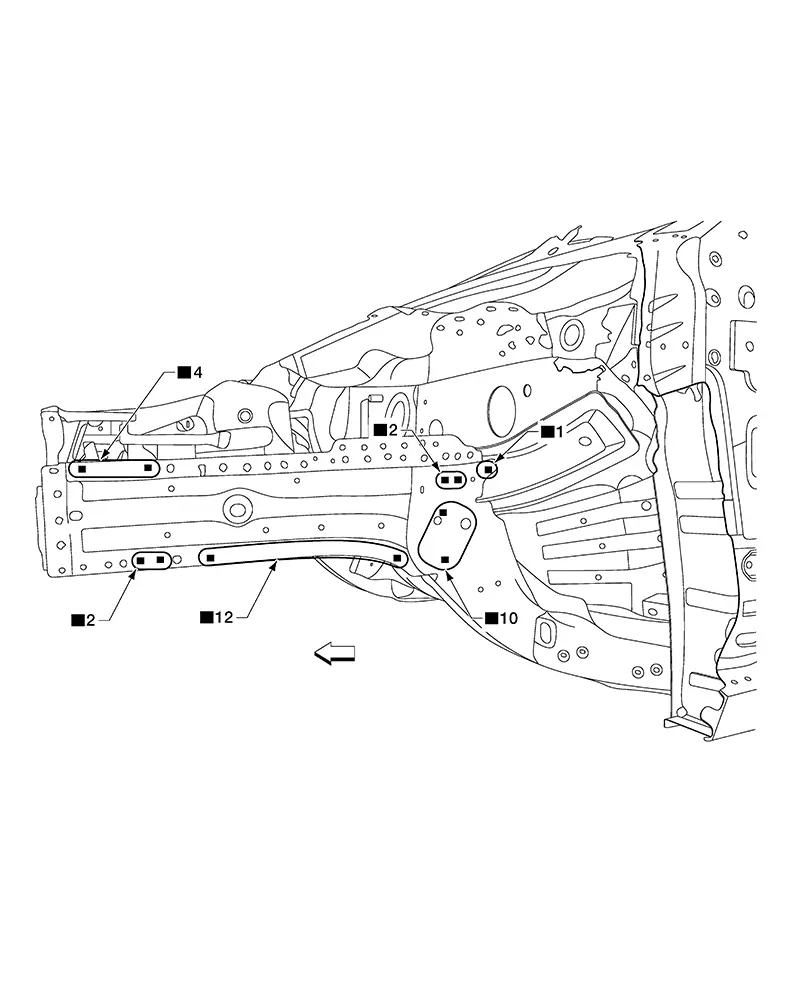

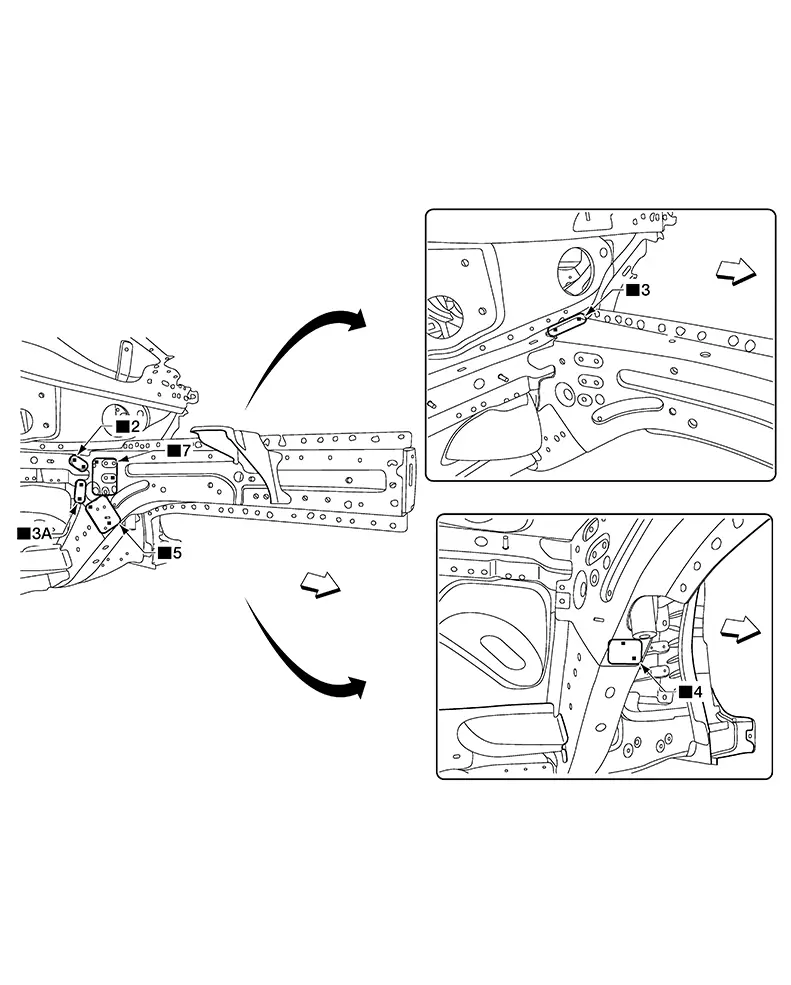

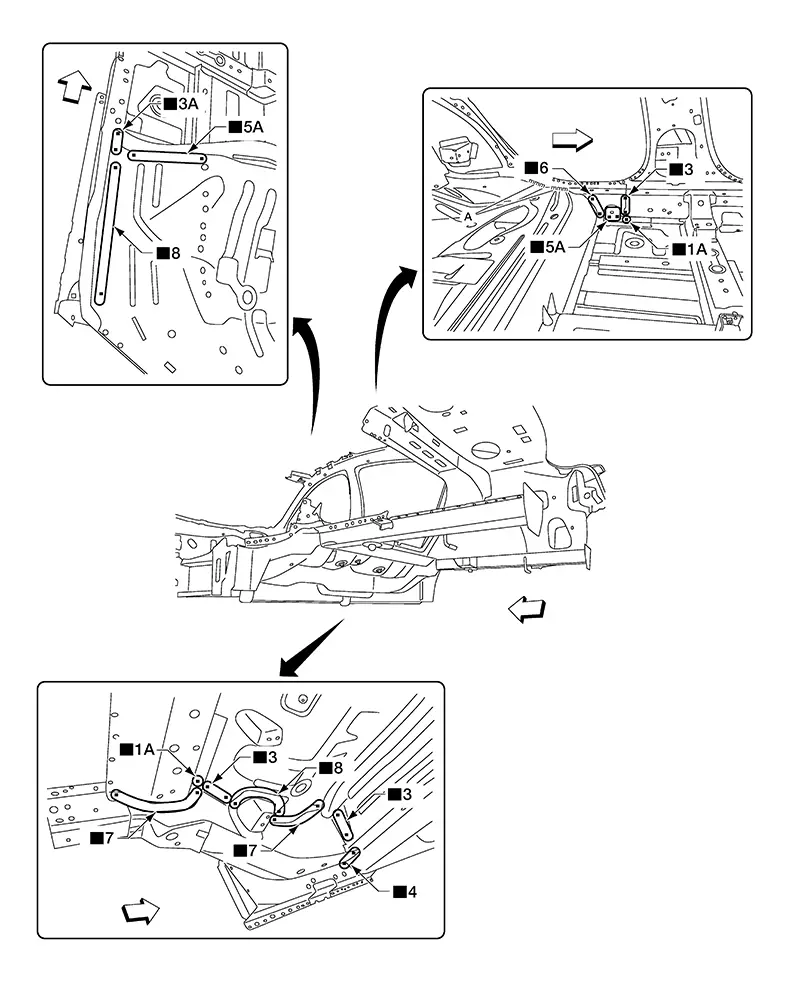

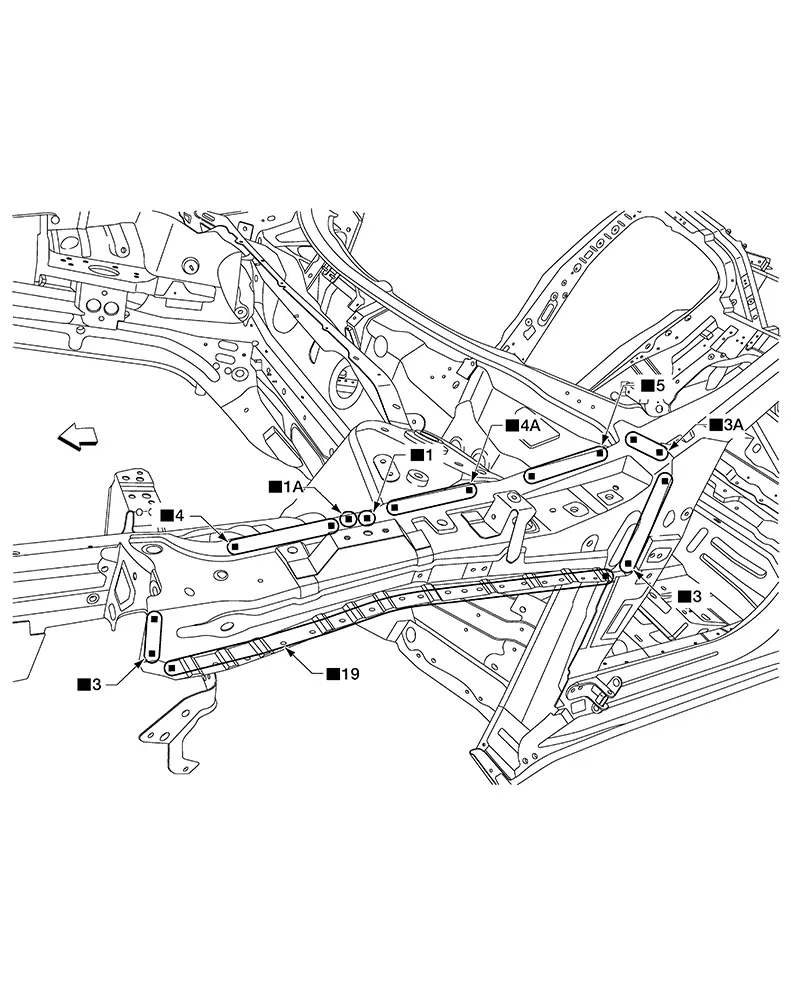

Front Side Member
Work after Radiator side support, hoodledge assembly and front strut housing assembly have been removed.
|
Replacement parts: |
|||||
|
• |
Front side member reinforcements |
|
Front |
||
FRONT SIDE MEMBER (AFTER REINFORCEMENT REMOVAL)
|
Replacement parts: |
|||||
|
• |
Front side member |
|
Front |
||

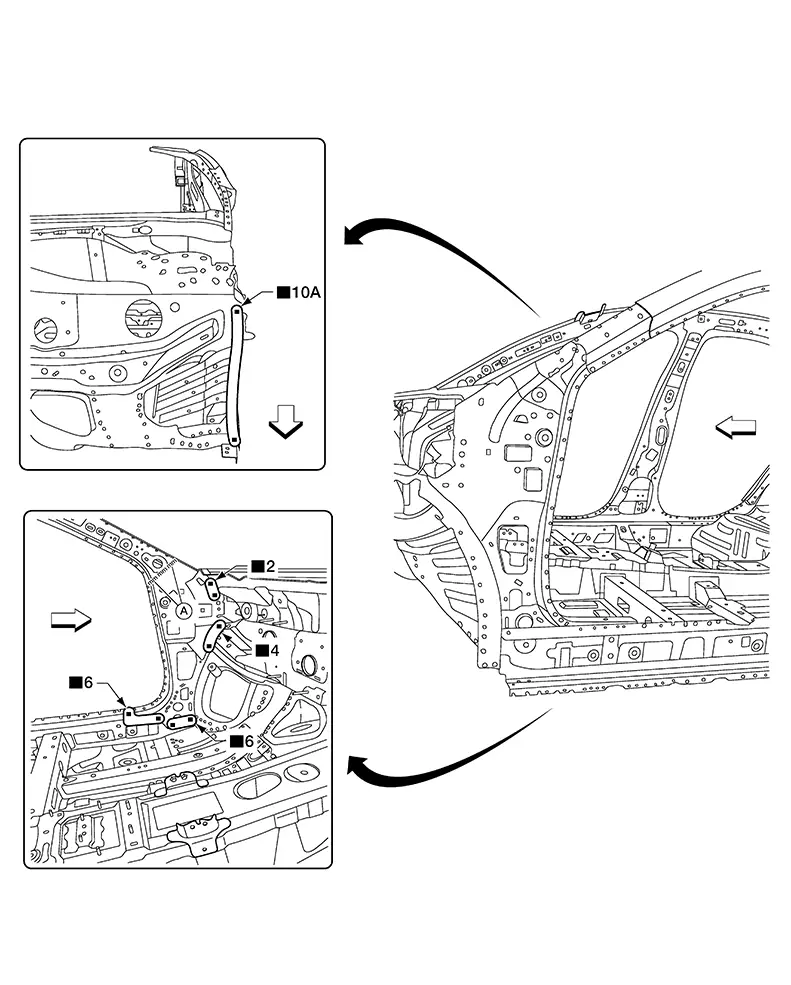

Front Pillar
FRONT PILLAR OUTER
Work after the hoodledge has been removed.
|
Replacement parts: |
|||||
|
• |
Front pillar section of front body side outer |
A. |
Sectioning area |
|
Front |
|
|
For spot welding of steel plate of strength 980 MPa, observe the indicated welding conditions. Refer to Welding of Ultra High Strength Steel. |
||

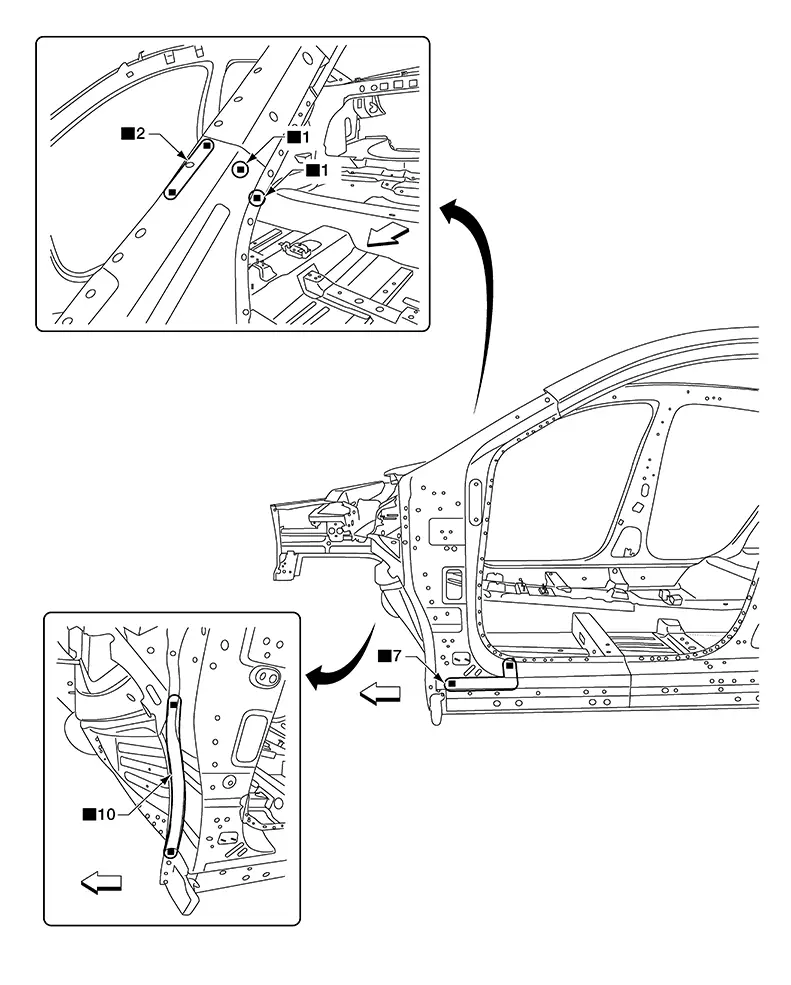

HINGE PILLAR BRACE
Work after front pillar outer has been removed.
|
Replacement parts: |
|||||
|
• |
Front pillar brace |
|
Front |
||

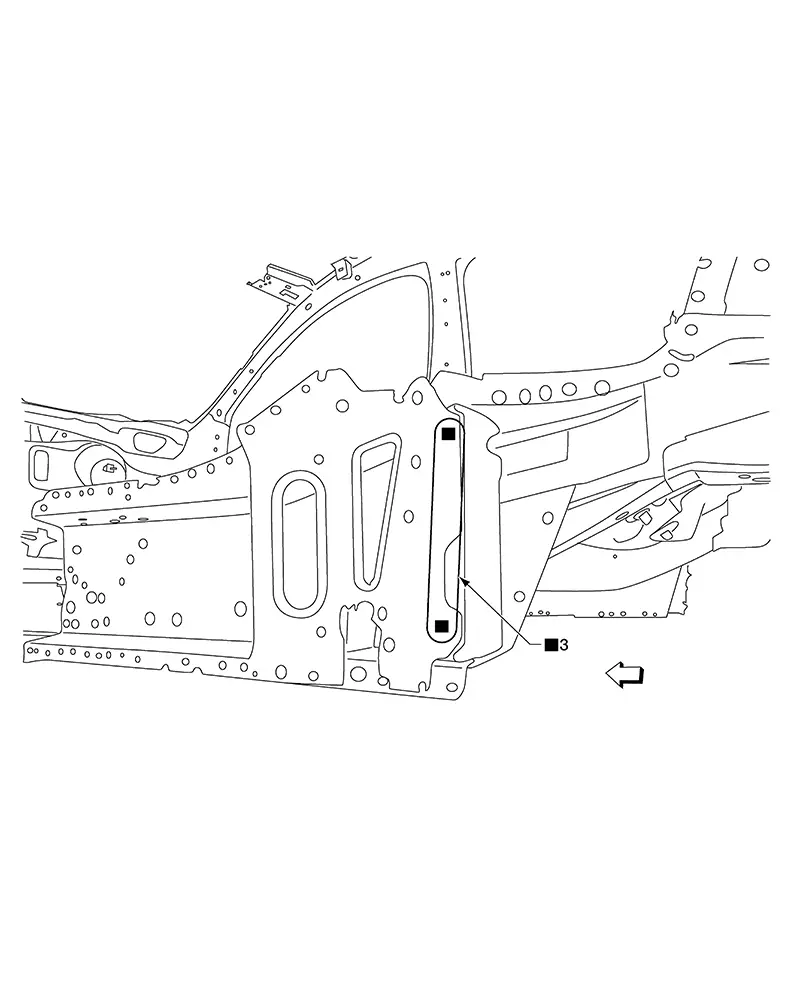

Dash Side
Work after the front pillar portion of body side inner reinforcement and the front pillar lower hinge brace have been removed.
|
Replacement parts: |
|||||
|
• |
Dash side |
A. |
MAG welds |
|
Front |

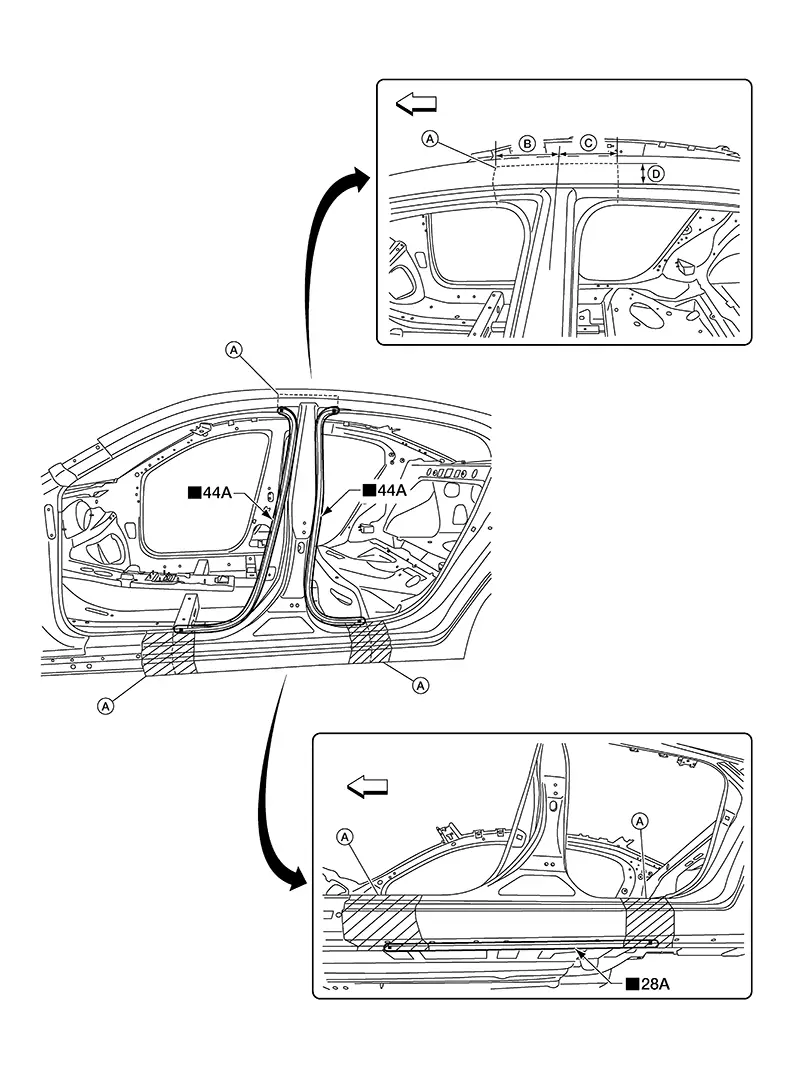

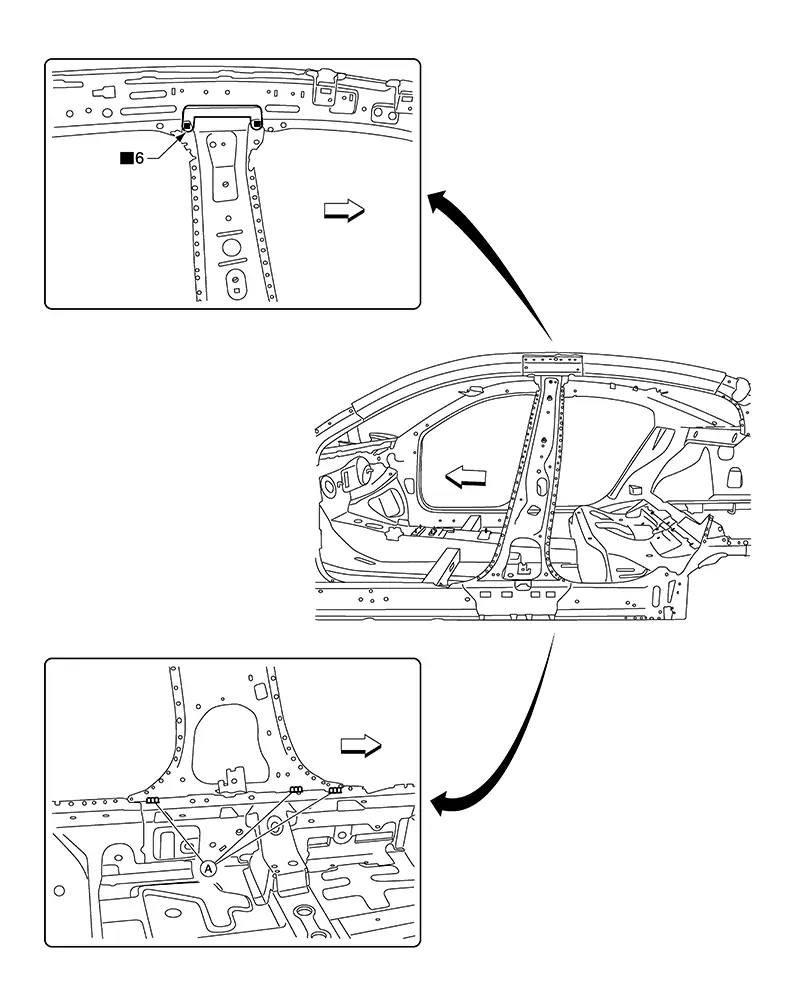

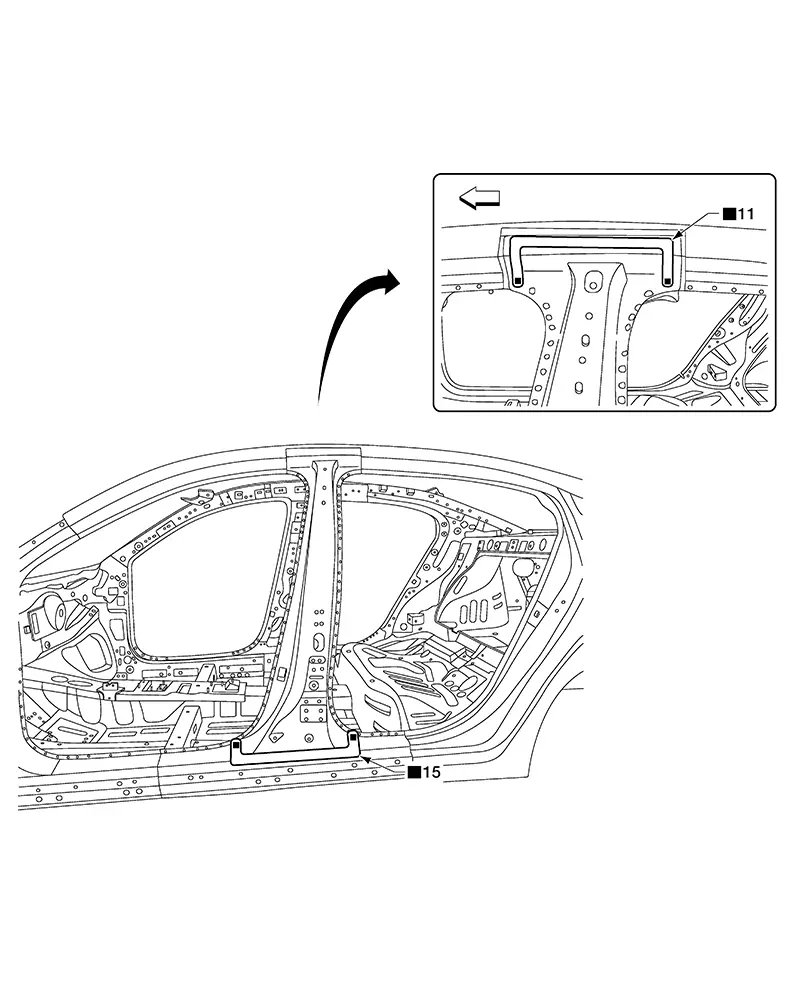

Center Pillar
CENTER PILLAR OUTER
|
Replacement parts: |
|||||||
|---|---|---|---|---|---|---|---|
|
• |
Center pillar outer |
||||||
Note:
Measurements from center line. |
|||||||
|
A. |
Sectioning location |
B. |
140.0 mm (5.50 in) |
C. |
125.0 mm (4.92 in) |
D. |
51.0 (2.50 in) |
|
|
Front |
||||||
CENTER PILLAR REINFORCEMENT
Work after center pillar outer portion of front body side has been removed.
|
Replacement parts: |
|||||
|---|---|---|---|---|---|
|
• |
Center pillar reinforcement |
|
Front |
||
CENTER PILLAR INNER
Work after center pillar outer portion and center pillar reinforcement have been removed.
|
Replacement parts: |
|||||
|---|---|---|---|---|---|
|
• |
Center pillar inner |
A. |
MAG welds |
|
Front |

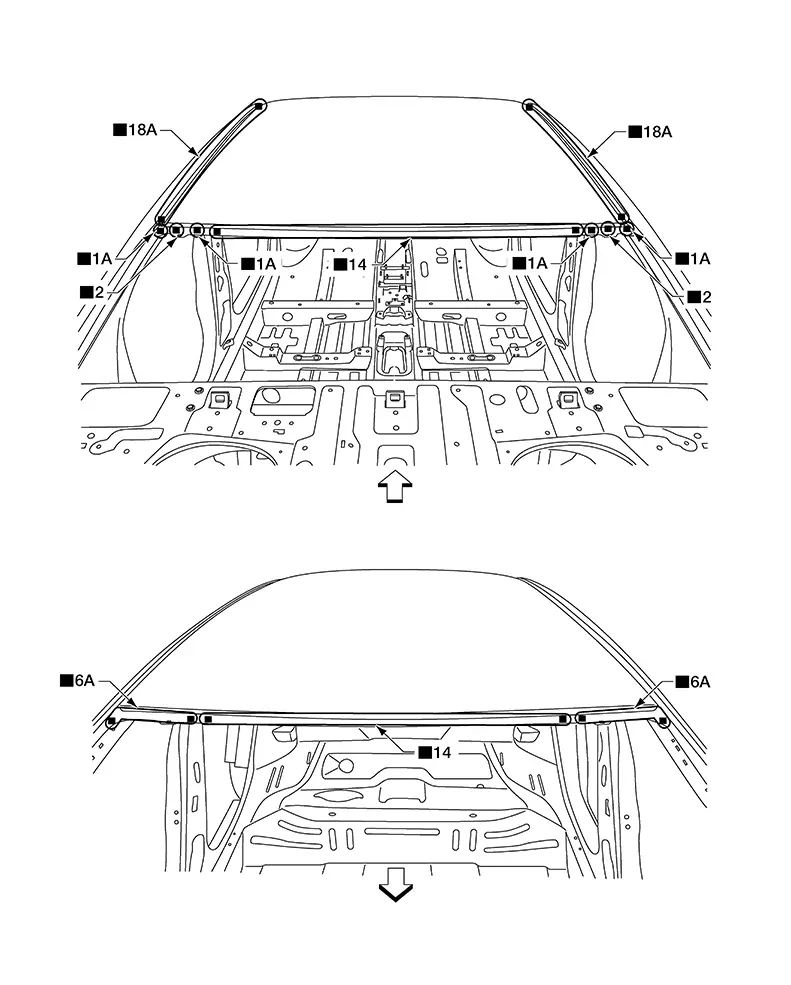

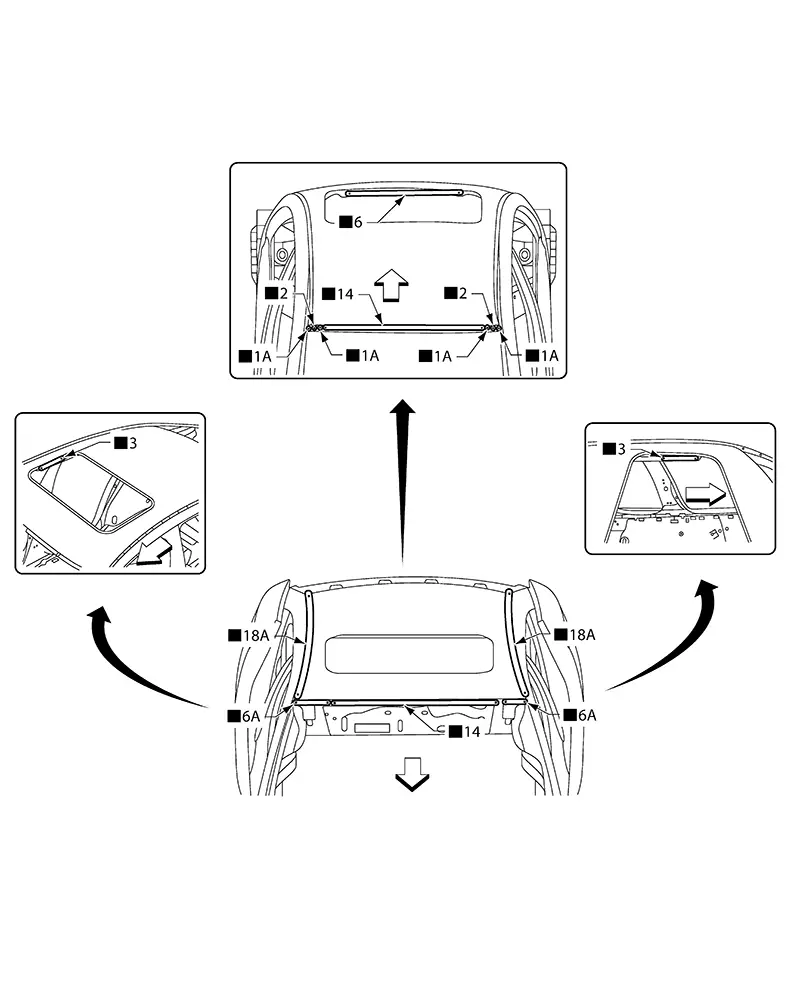

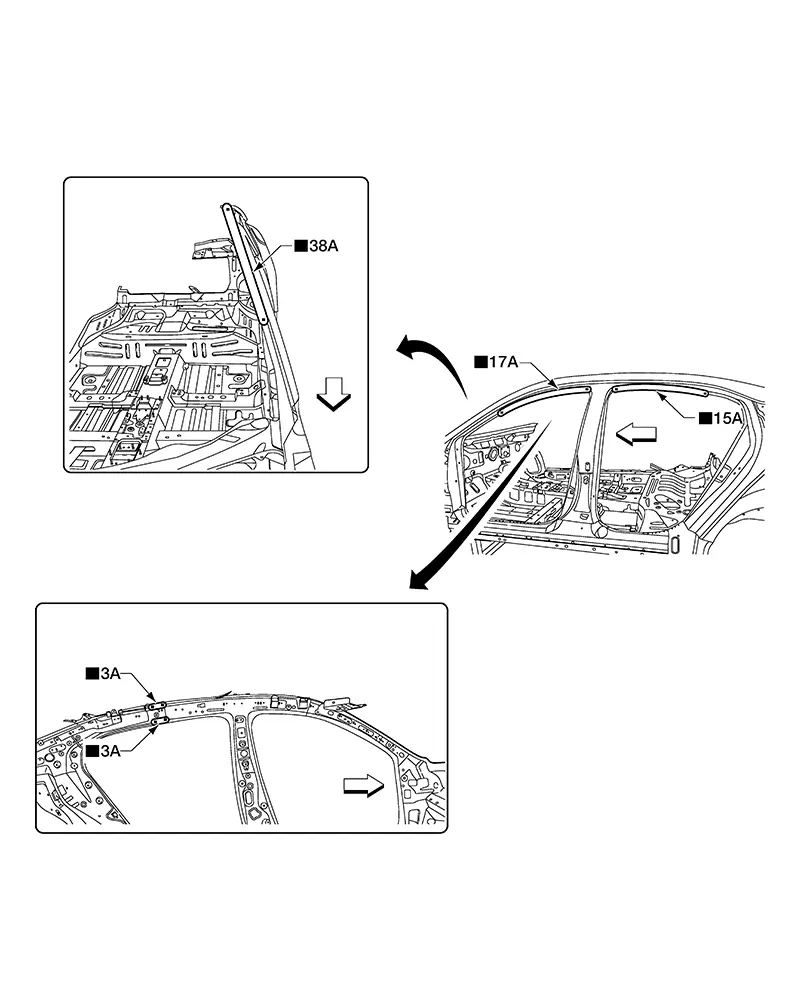

Roof
STANDARD ROOF PANEL
Note:
Roof panel bows will be removed with roof panel.
|
Replacement parts: |
|||||
|
• |
Standard roof panel |
||||
|
|
Front |
||||
MOONROOF PANEL
Note:
Moonroof panel bows will be removed with roof panel.
|
Replacement parts: |
|||||
|
• |
Moonroof panel |
||||
|
|
Front |
||||

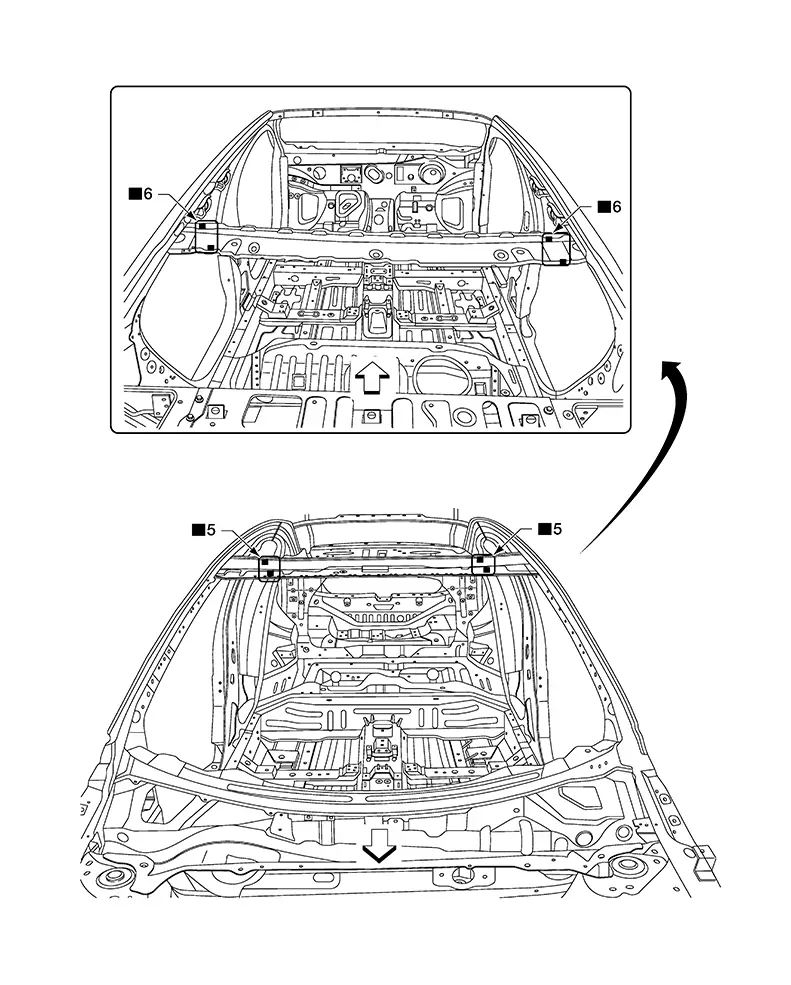

ROOF FRONT AND REAR HEADERS
|
Replacement parts: |
|||||
|
• |
Roof front and rear headers |
||||
|
|
Front |
||||
Roof Side Rail Reinforcement
|
Replacement parts: |
|||||
|
• |
Roof side rail reinforcement |
||||
|
|
Front |
||||

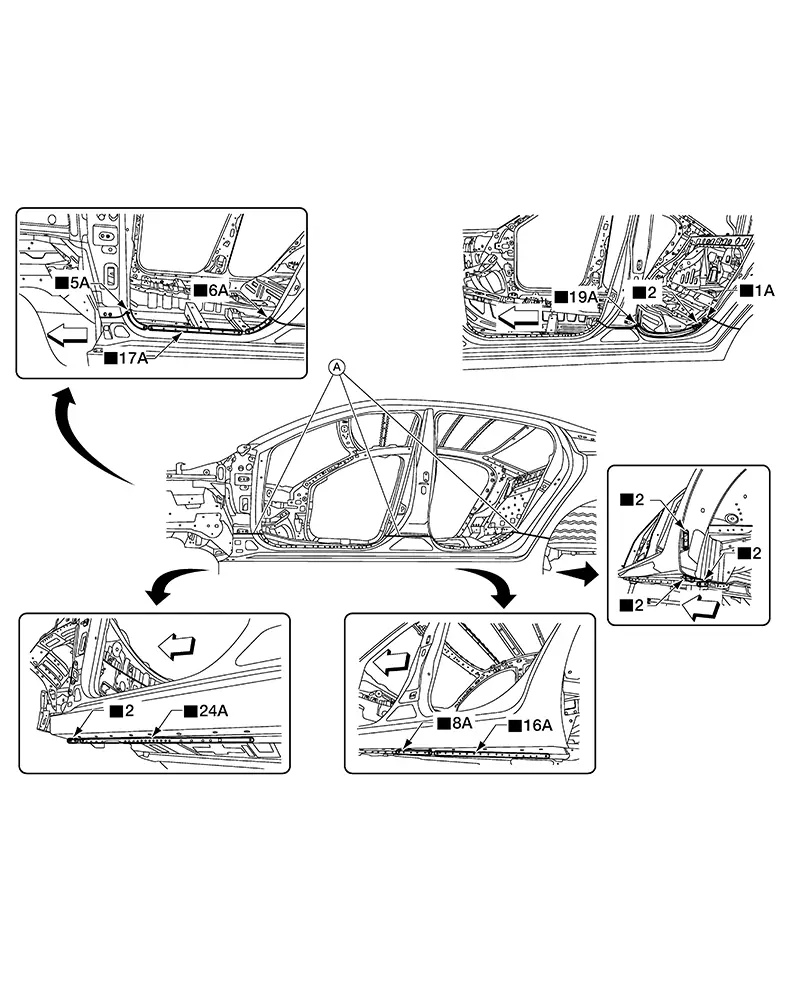

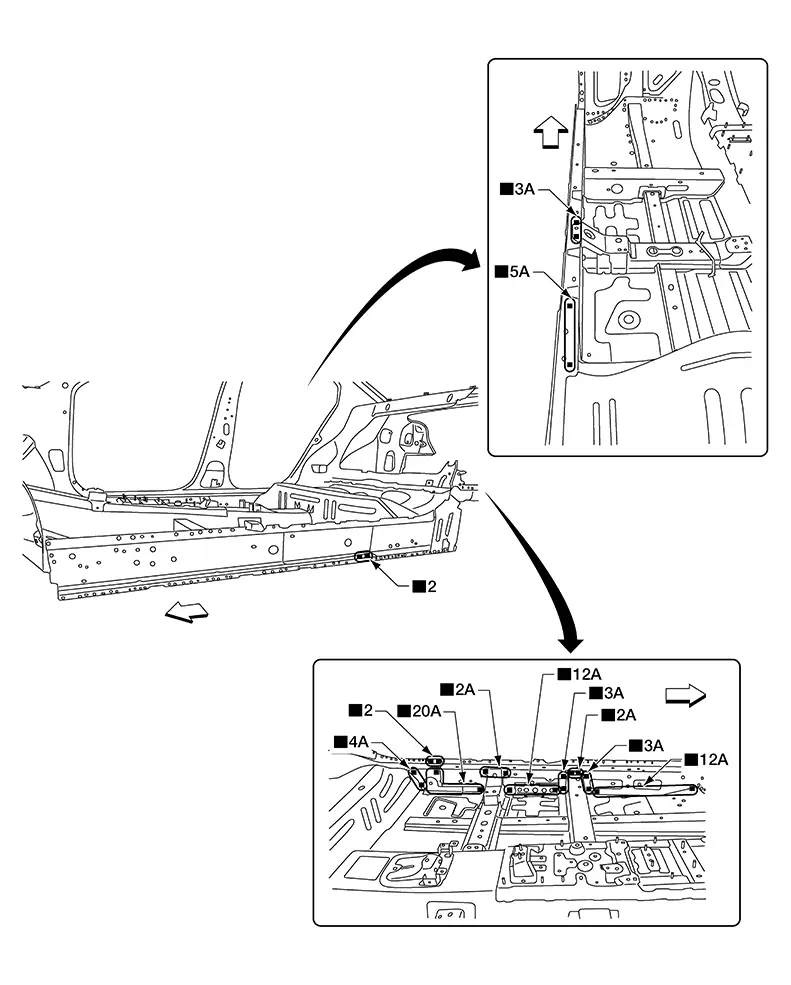

Sill Outer (partial Replacement)
|
Replacement parts: |
||||||
|
• |
Sill outer |
A. |
Sectioning location |
![]() |
Front |
|

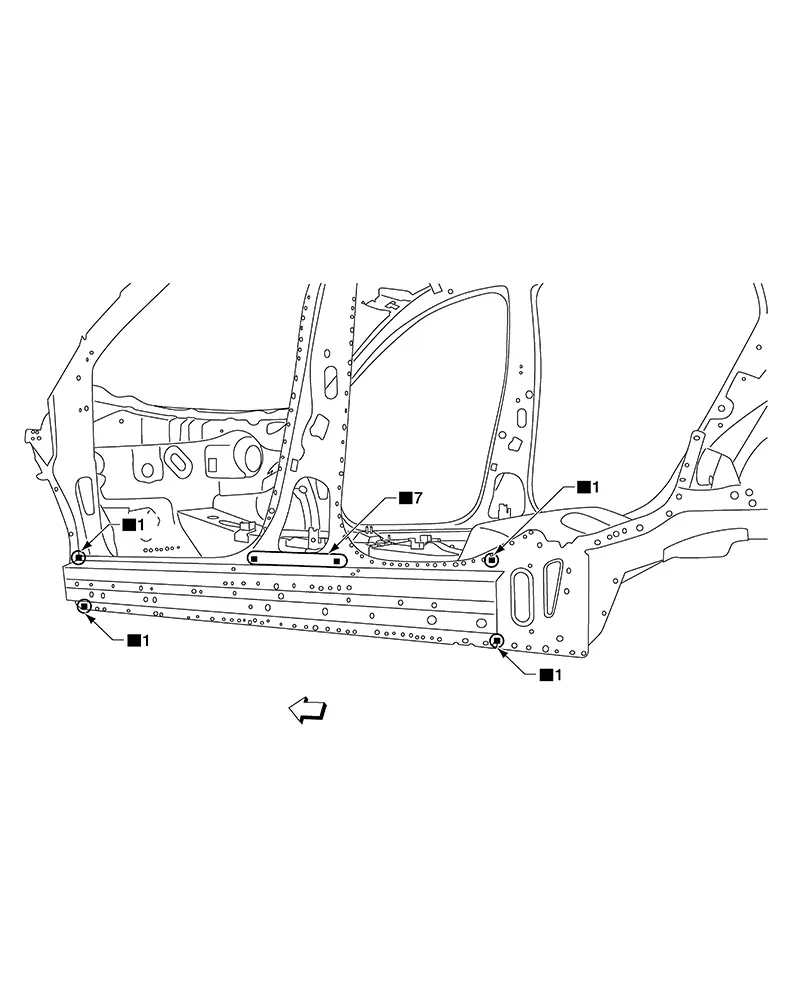

Sill Outer Reinforcement
Work after the front pillar lower hinge brace and the center pillar reinforcement have been removed.
|
Replacement parts: |
||||||
|
• |
Sill outer reinforcement |
![]() |
Front |
|||
Sill Inner
Work after the sill reinforcement, front pillar lower hinge brace and the center pillar and center pillar reinforcement have been removed.
|
Replacement parts: |
|||||
|---|---|---|---|---|---|
|
• |
Sill inner |
|
Front |
||
SILL INNER EXTENSION
|
Replacement parts: |
|||||||
|---|---|---|---|---|---|---|---|
|
• |
Inner sill extension |
|
Front |
||||

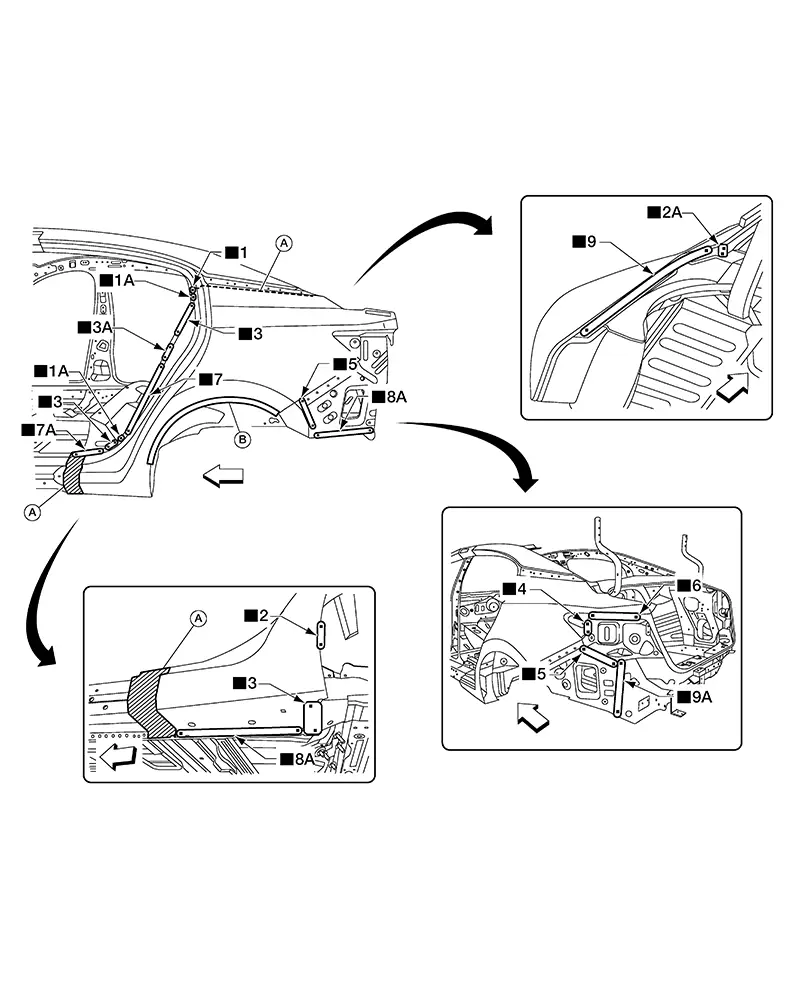

Rear Fender
|
Replacement parts: |
|||||||
|
• |
Rear fender |
A. |
Sectioning location |
B. |
Hem flange |
|
Front |
REAR LAMP POCKET
Work after rear fender portion of the body side outer has been removed.
|
Replacement parts: |
|||||
|
• |
Rear lamp pocket |
|
Front |
||

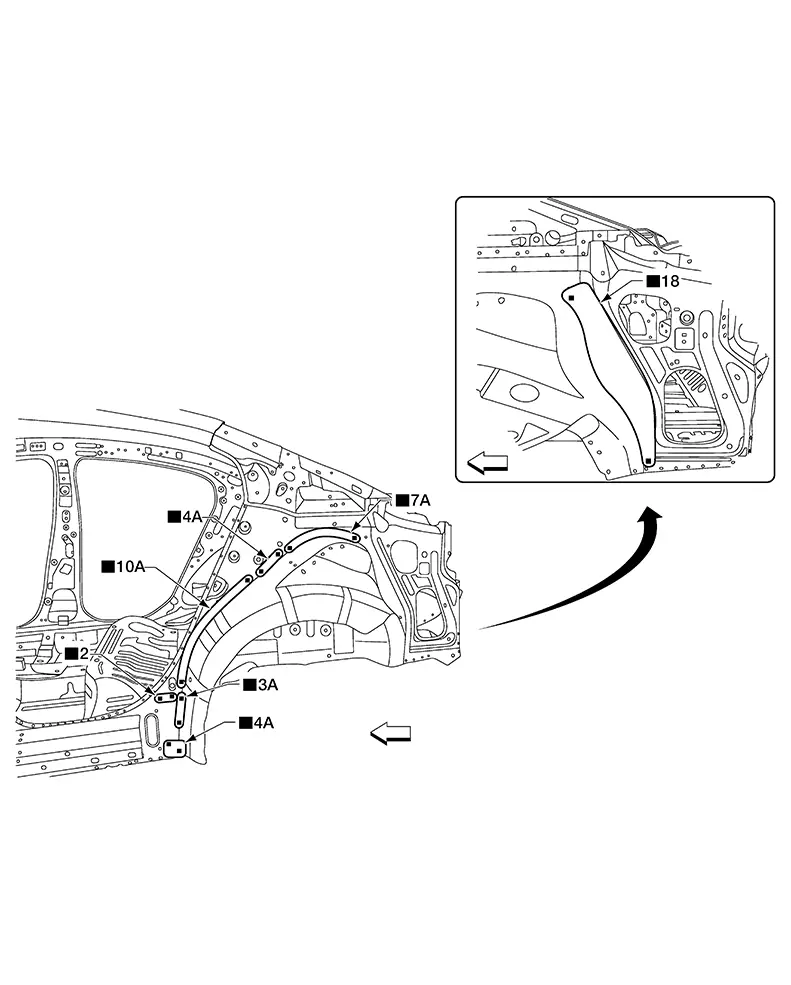

Rear Wheelhouse Outer
REAR WHEELHOUSE REINFORCEMENT
Work after rear fender portion of the body side outer has been removed.
|
Replacement parts: |
|||||
|
• |
Rear Outer Wheelhouse Reinforcement |
|
Front |
||
REAR WHEELHOUSE OUTER
|
Replacement parts: |
|||||
|
• |
Rear outer wheelhouse |
|
Front |
||

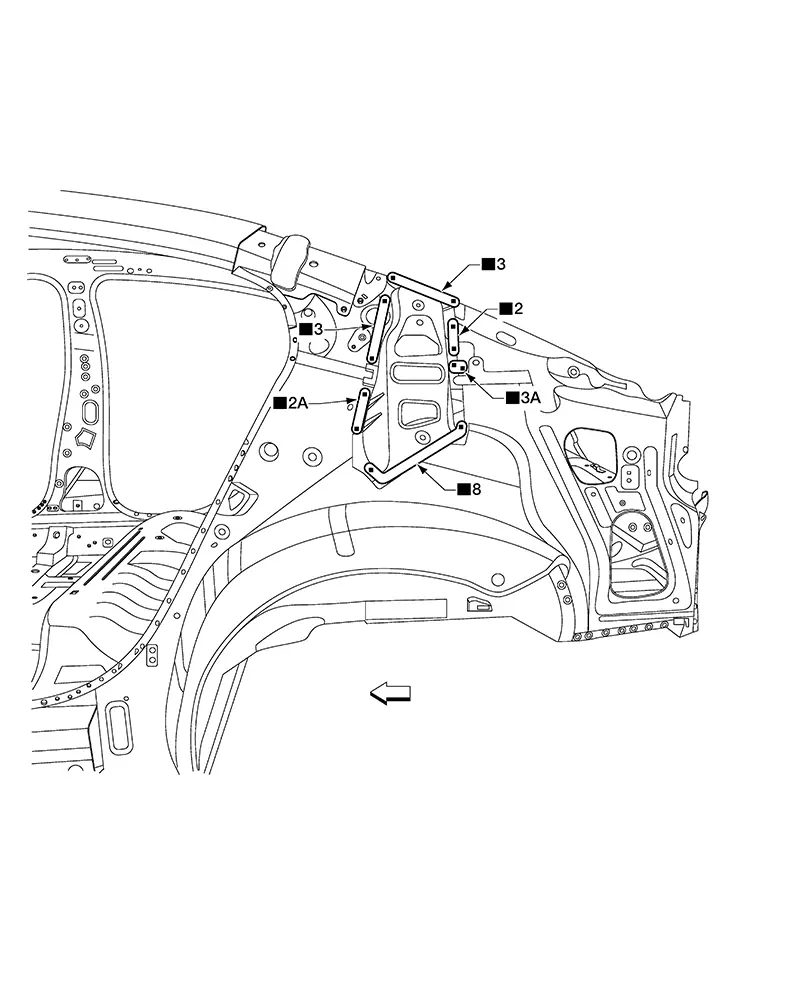

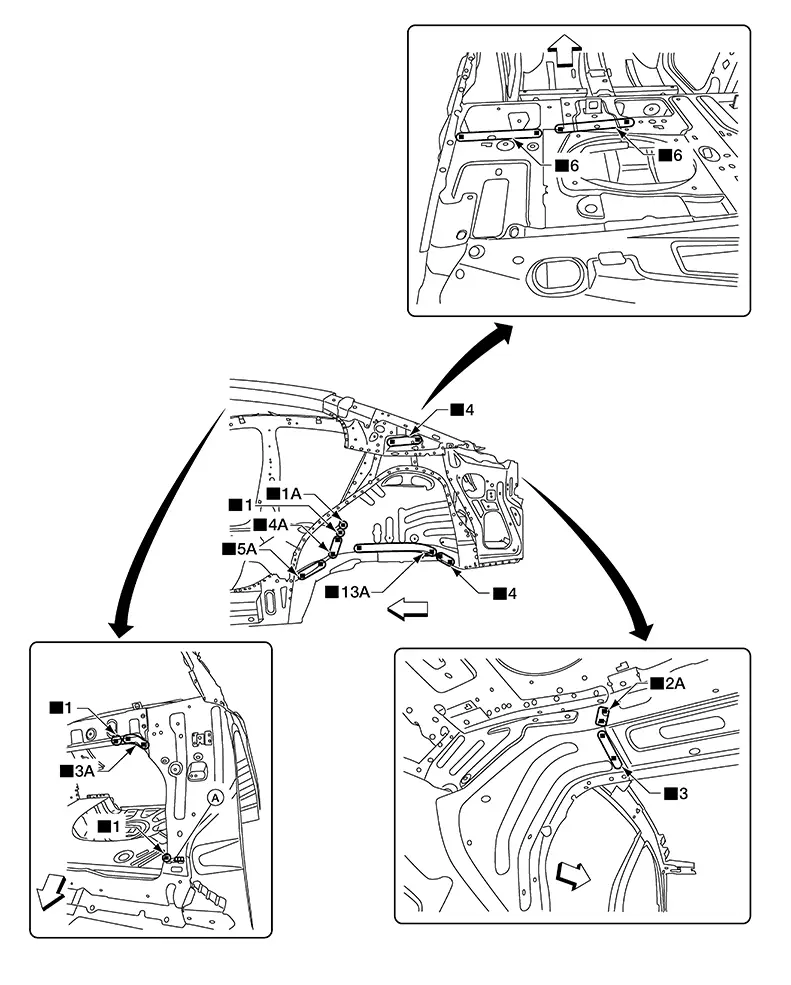

Rear Wheelhouse Inner
Work after rear fender and rear outer wheelhouse have been removed.
|
Replacement parts: |
|||||||
|
• |
Rear inner wheelhouse assembly |
A. |
MAG weld |
|
Front |
||

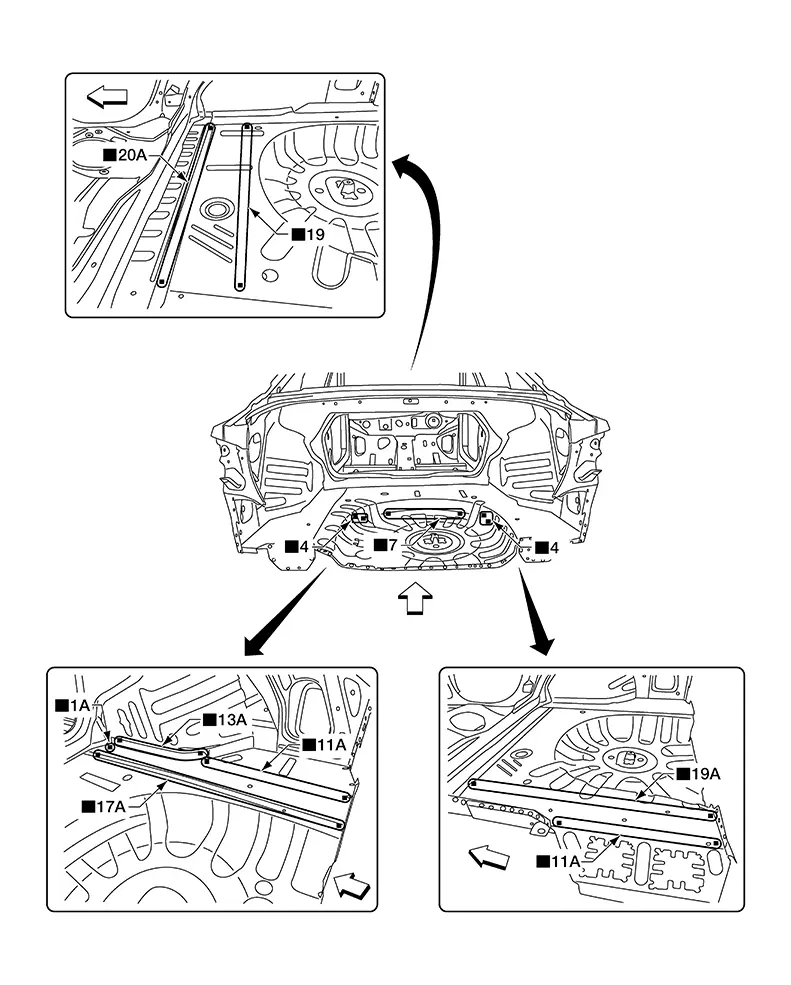

Rear Floor Rear
REAR FLOOR REAR
Work after rear panel has been removed.
|
Replacement parts: |
|||||
|---|---|---|---|---|---|
|
• |
Rear floor rear |
|
Front |
||
Rear Panel Assembly
|
Replacement parts: |
|||||
|
• |
Rear panel assembly |
|
Front |
||

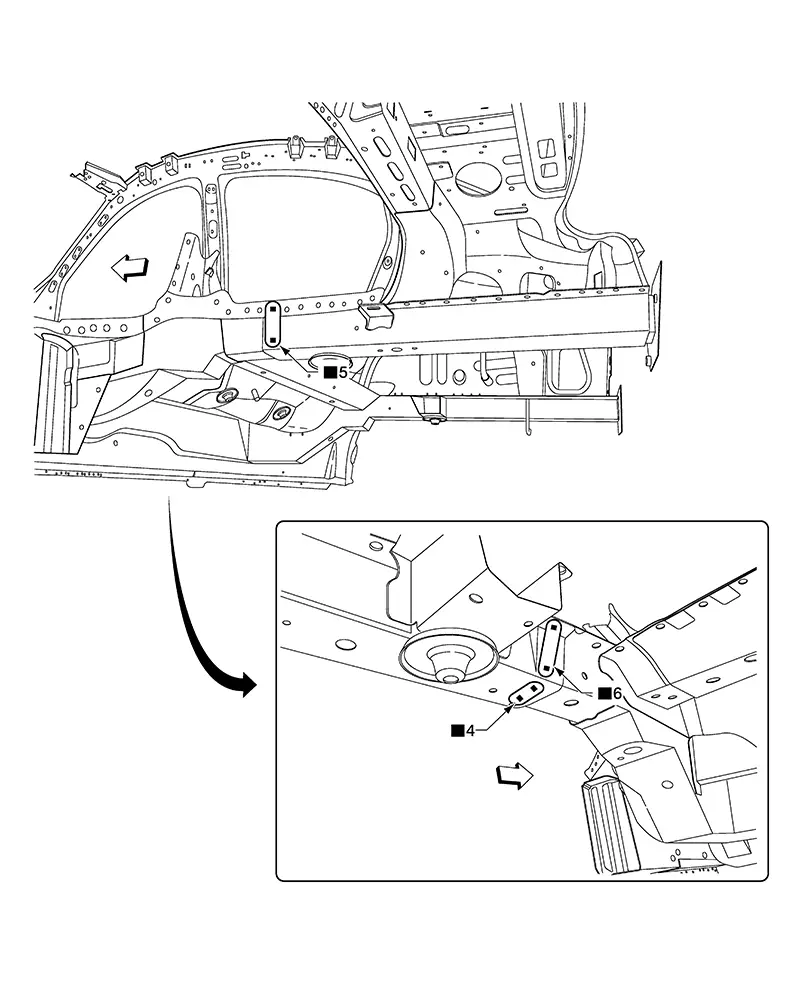

Rear Side Member
Work after rear body side outer, sill reinforcement extension, inner and outer wheel house and rear floor rear and have been removed.
|
Replacement parts: |
|||||||
|
• |
Rear side member |
|
Front |
A. |
MAG welds |
||

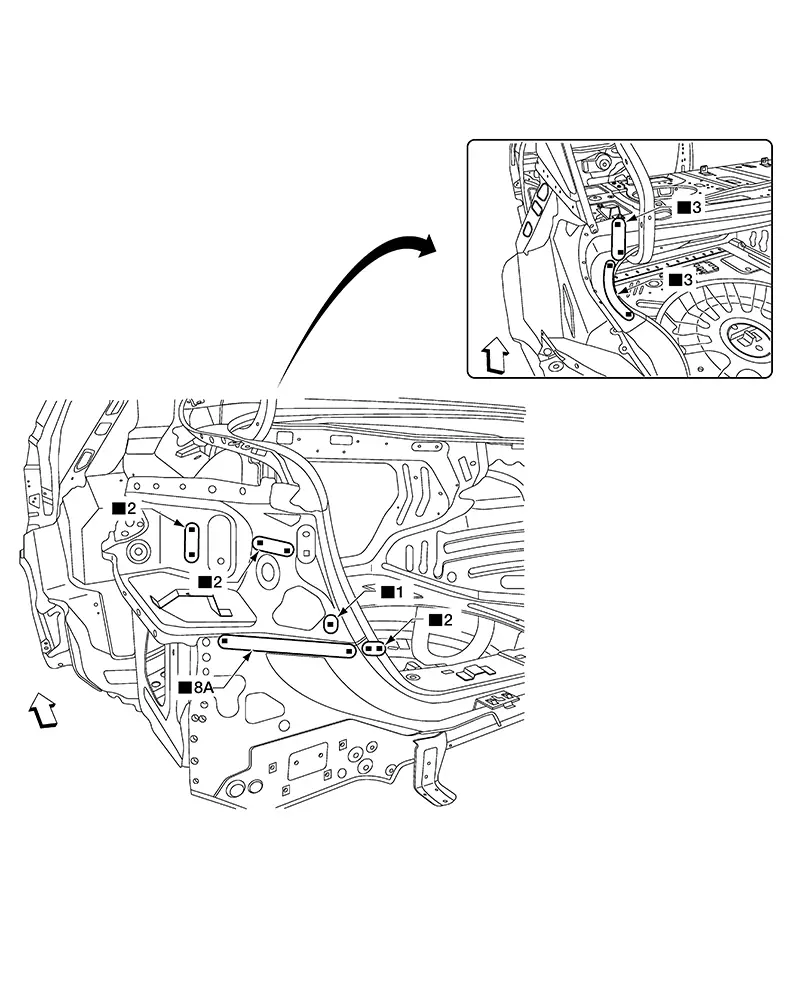

REAR SIDE MEMBER EXTENSION
|
Replacement parts: |
|||||||
|
• |
Rear side member extension |
|
Front |
||||
