Nissan Sentra B18 (2020-2025) Service Manual: Body Sealing

Description

Description

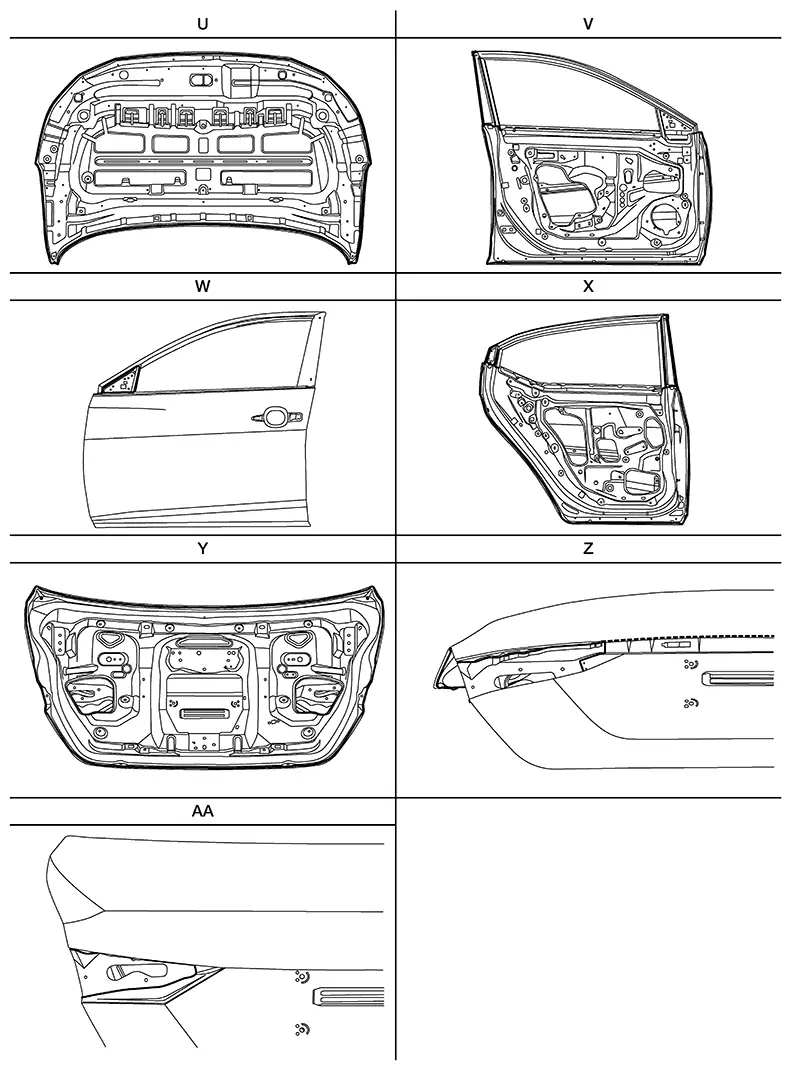

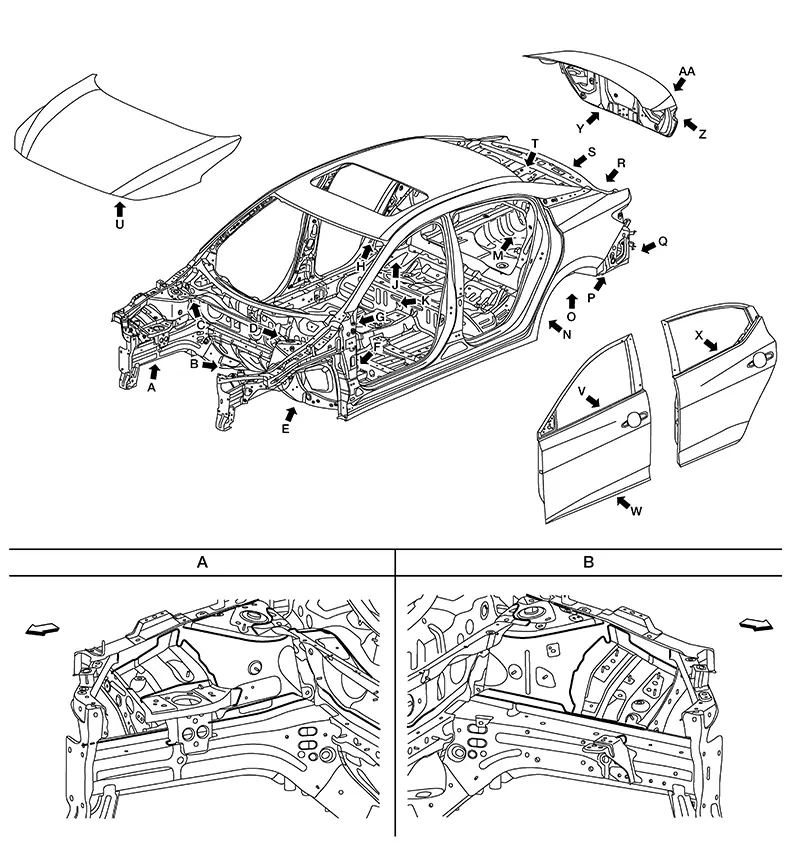

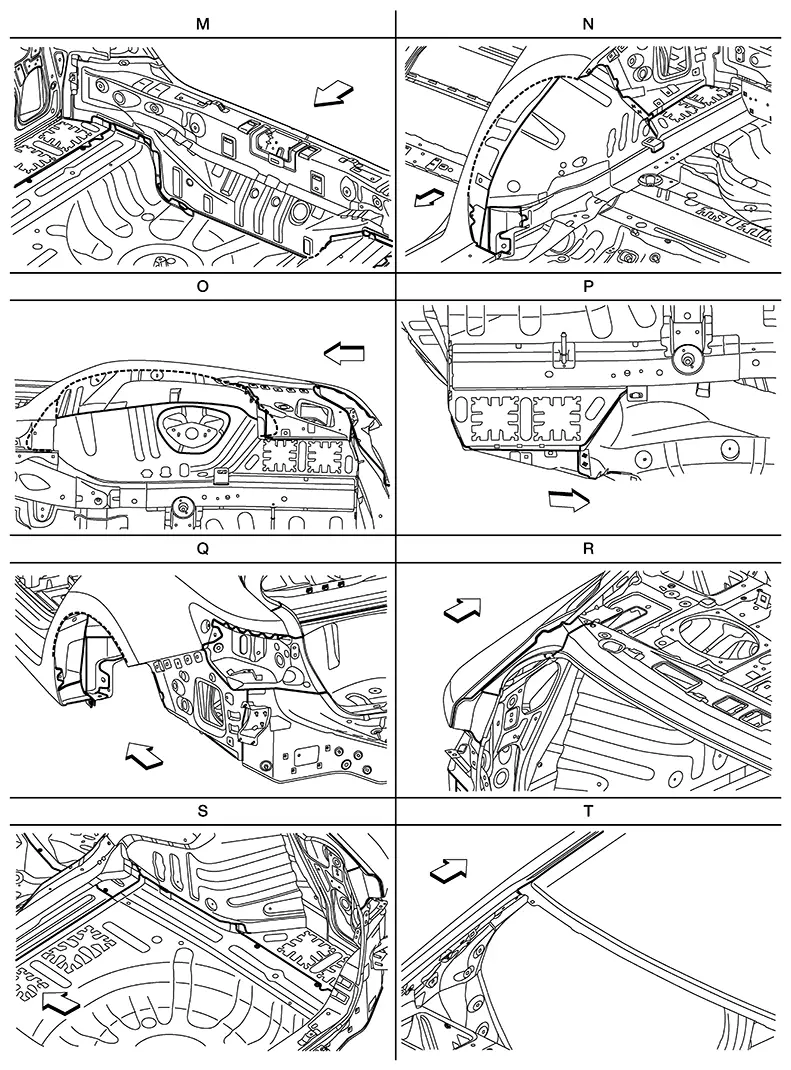

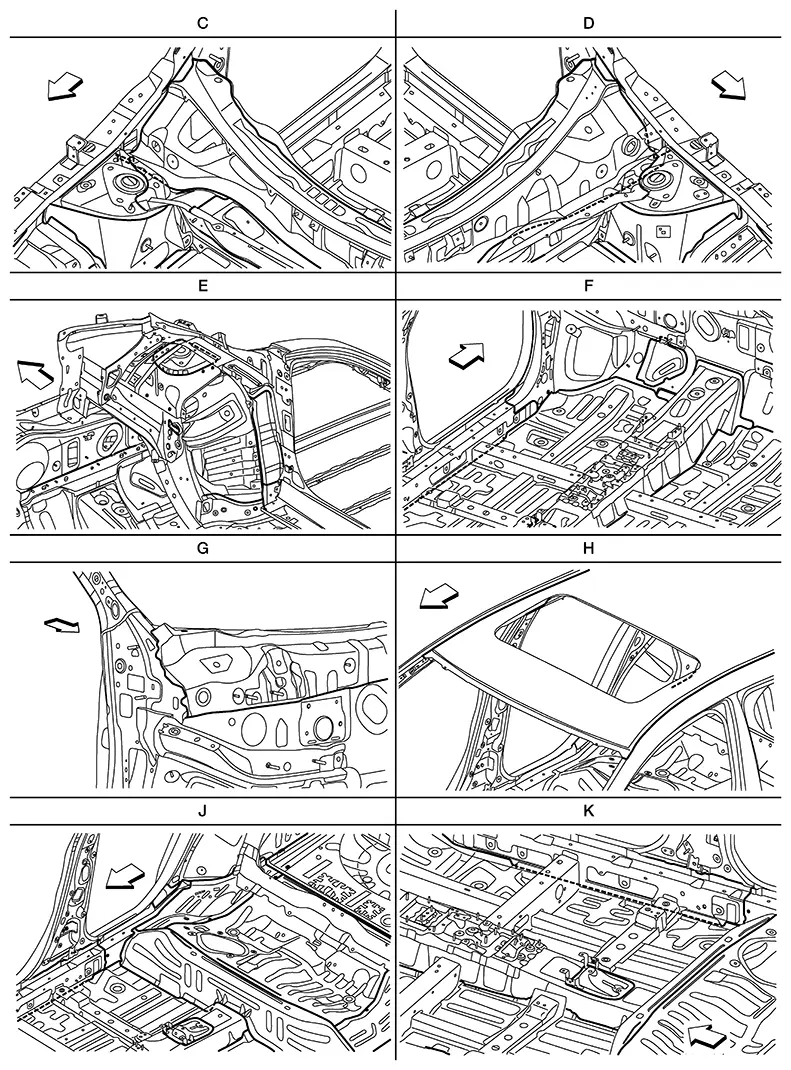

The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of sealant and not to allow other unaffected parts to come into contact with the sealant.

Front

Front

Front

Front
