Nissan Sentra B18 (2020-2025) Service Manual: Air Breather Hose

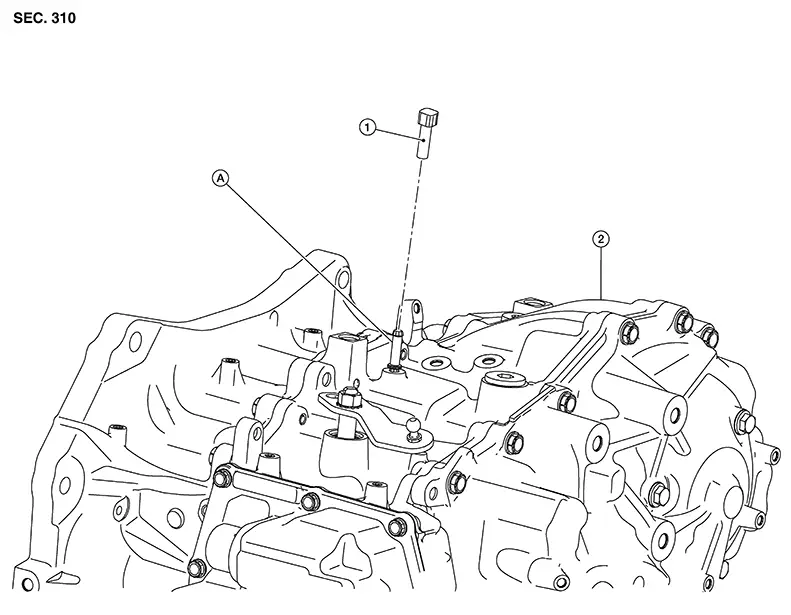

Exploded View

Exploded View

1.

Air breather hose

2.

Transaxle assembly

A.

Air breather tube

Removal and Installation

Removal and Installation

REMOVAL

Remove battery. Refer to Removal and Installation (Battery).

Remove air breather hose from air breather tube.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

  • Do not bend the air breather hose to prevent damage to the hose.

  • Insert air breather hose to air breather tube all the way to the base of the tube.
