Nissan Sentra Service Manual: Wiring diagram

Display audio with bose

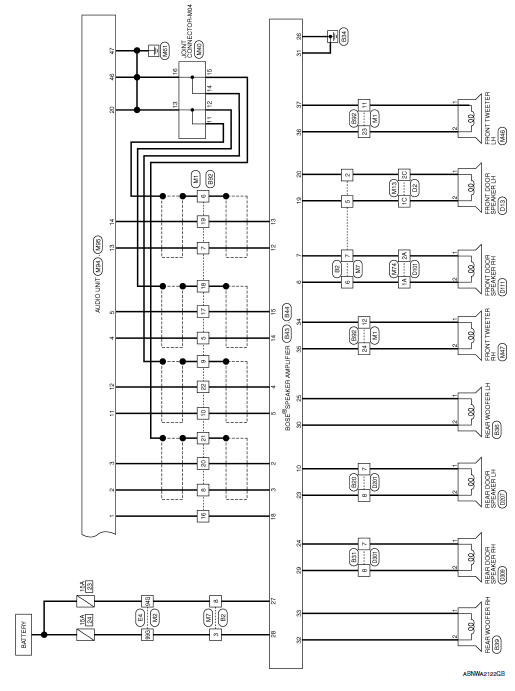

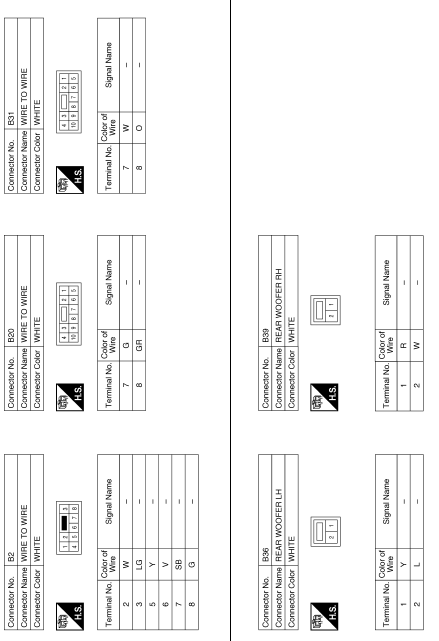

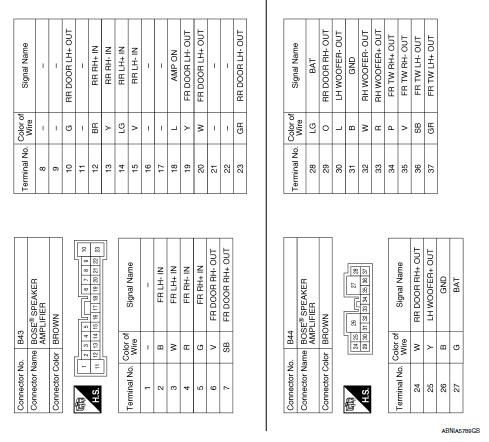

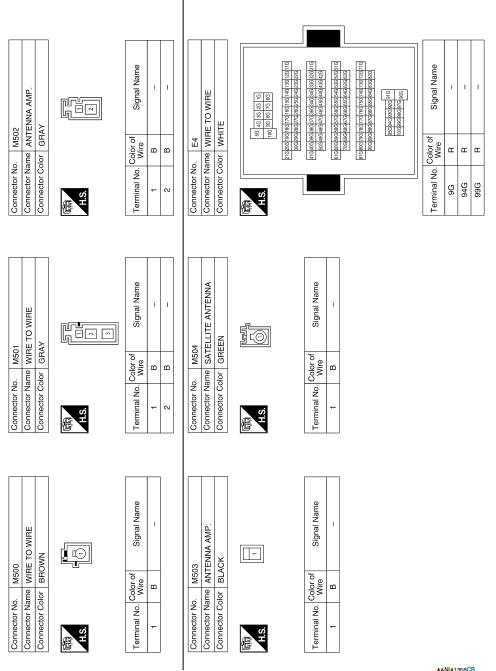

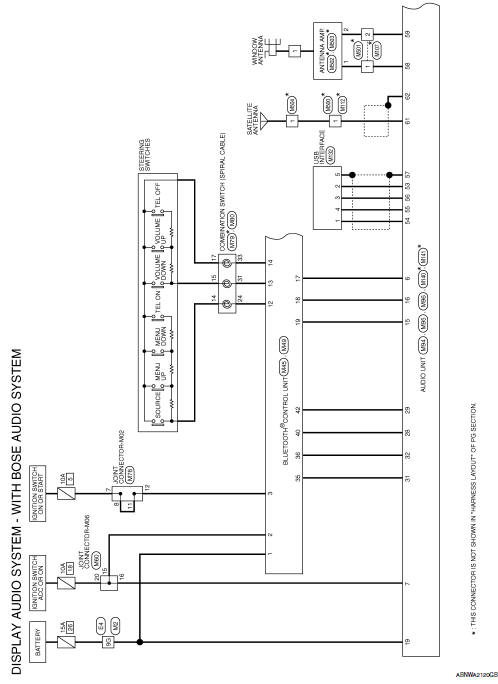

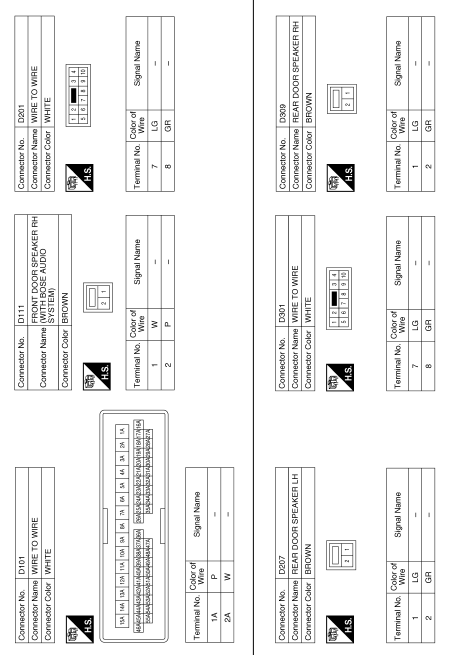

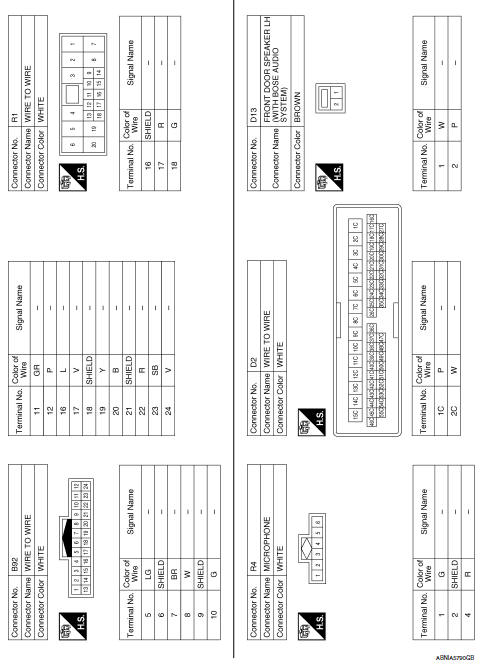

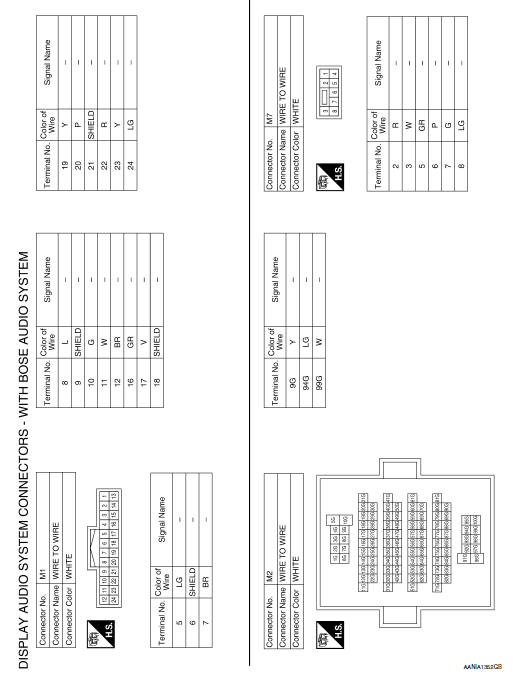

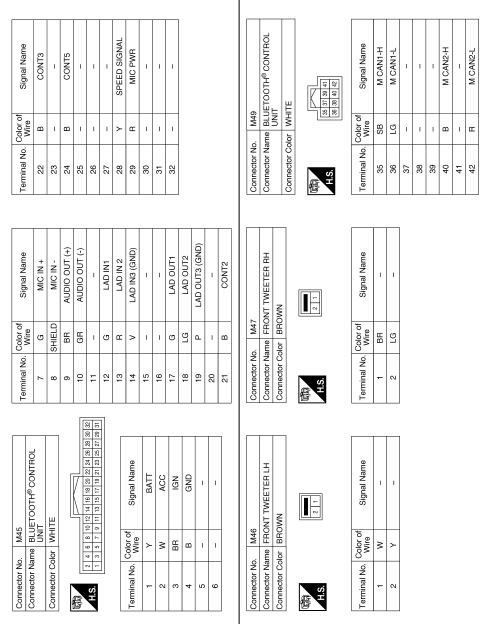

Wiring diagram














Basic inspection


Ecu diagnosis information

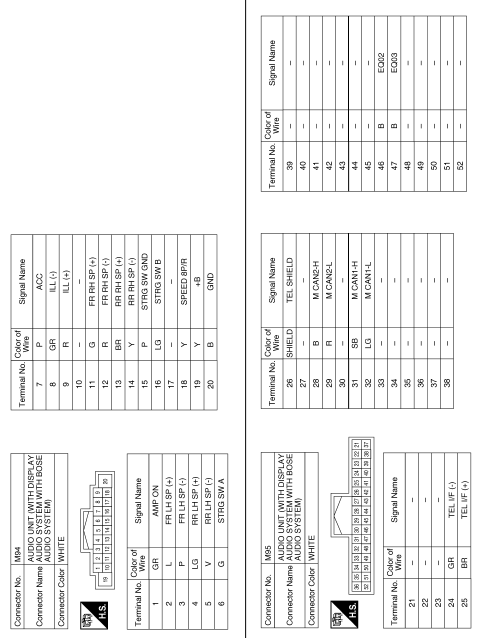

Audio unit Reference value TERMINAL LAYOUT PHYSICAL VALUES Bose speaker amp Reference value TERMINAL LAYOUT PHYSICAL VALUES BluetoothВ® control unit Reference value ...

Basic inspection
Diagnosis and repair workflow Work flow Overall sequence Detailed flow 1.Get information for symptom Get detailed information from the customer about the symptom (the condition and the envi ...
