Nissan Sentra Service Manual: Ecu diagnosis information

Audio unit

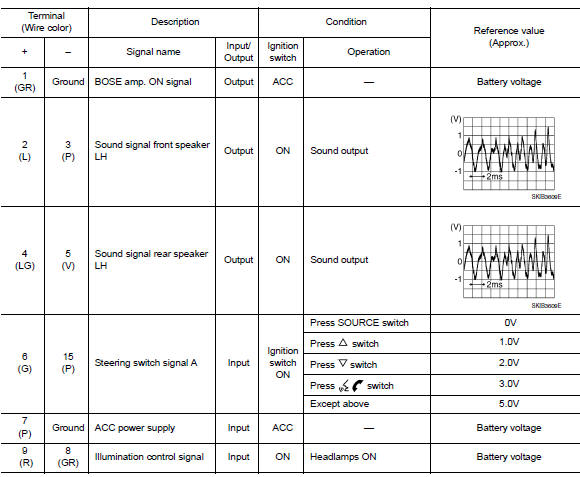

Reference value

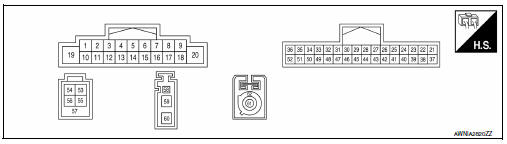

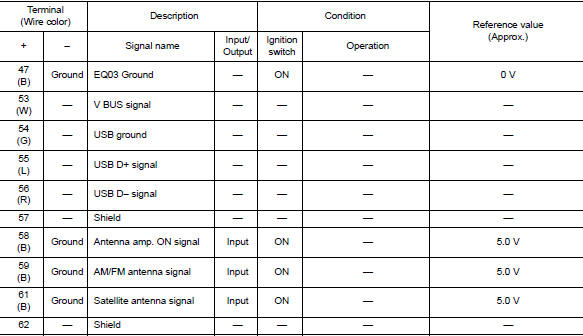

TERMINAL LAYOUT

PHYSICAL VALUES


PHYSICAL VALUES



Bose speaker amp


Bose speaker amp

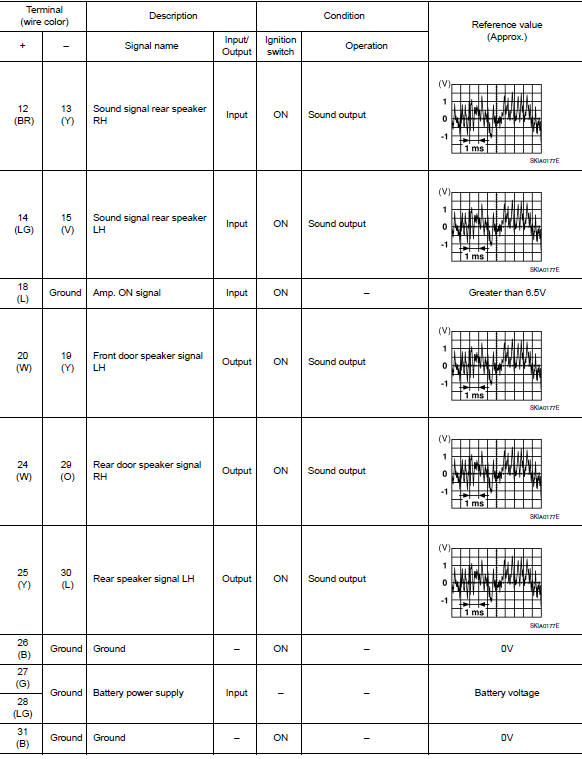

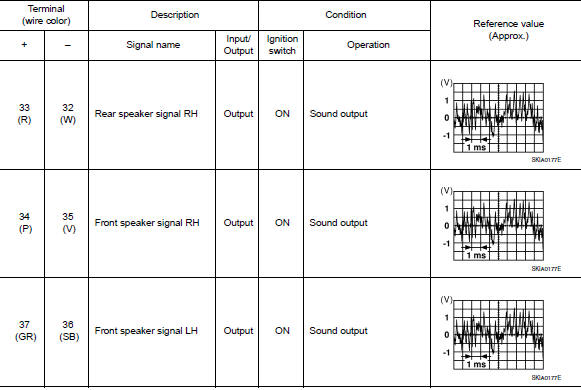

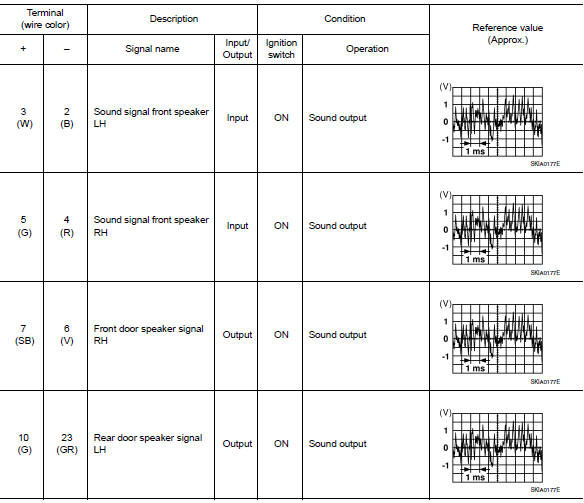

Reference value

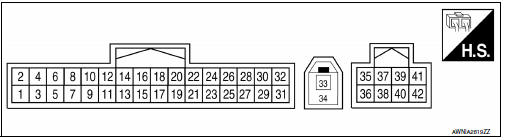

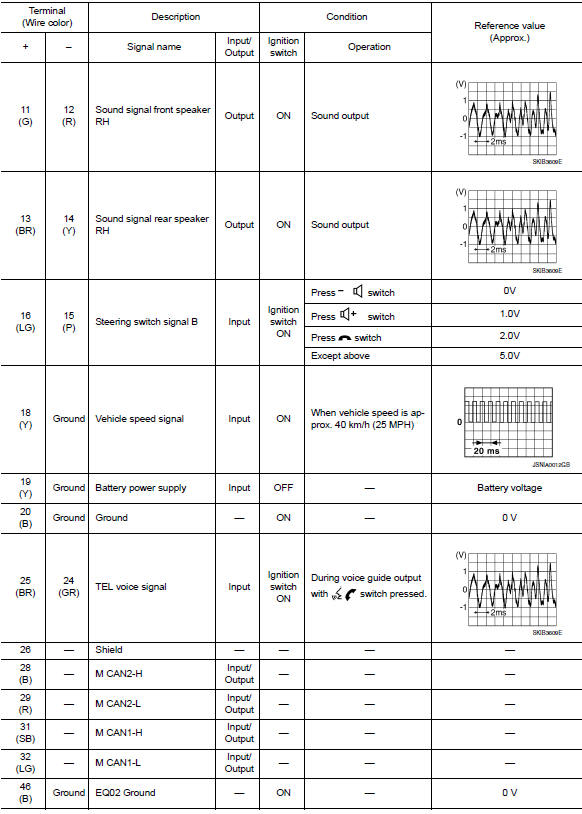

TERMINAL LAYOUT

PHYSICAL VALUES


PHYSICAL VALUES



BluetoothВ® control unit


BluetoothВ® control unit

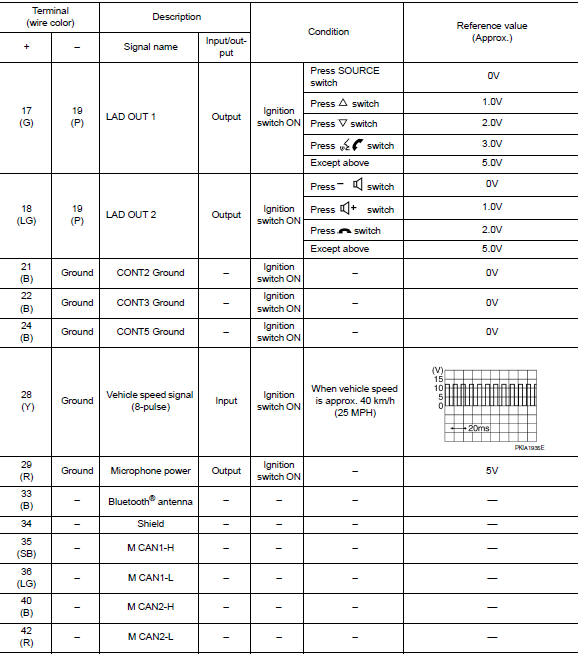

Reference value

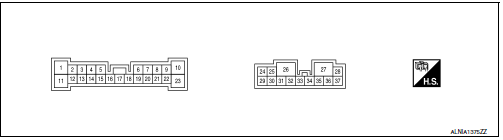

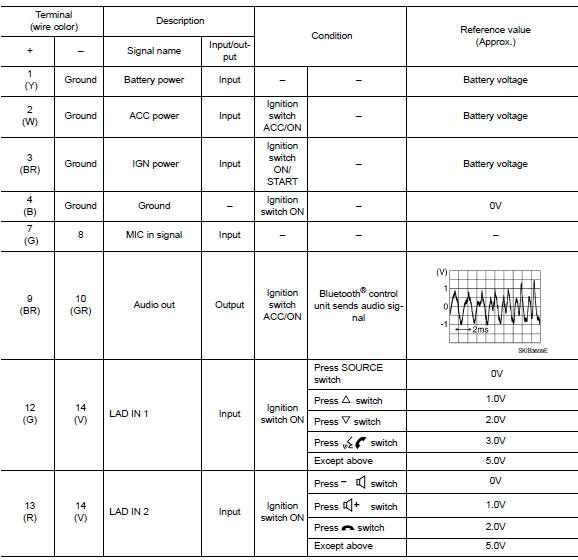

TERMINAL LAYOUT

PHYSICAL VALUES


PHYSICAL VALUES


Wiring diagram


System description
Component parts Component parts location Front tweeter LH Steering switches Audio unit Front tweeter RH Microphone Front door speaker LH Front door speaker RH Rear door speaker ...

Wiring diagram
Display audio with bose Wiring diagram ...
