Toyota Camry Owner's Manual (2023): Tire inflation pressure

Tire inflation pressure

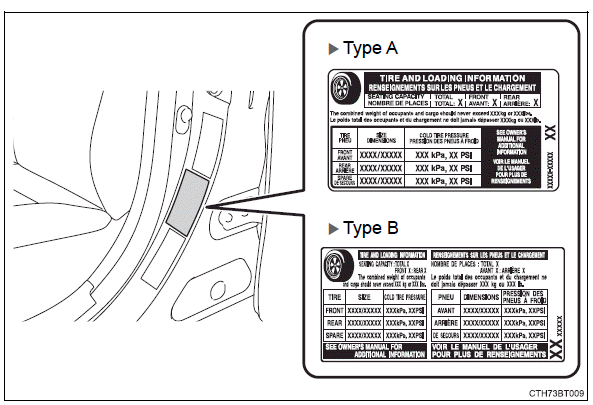

The recommended cold tire inflation pressure and tire size are displayed on the tire and loading information label.

Do-it-yourself maintenance

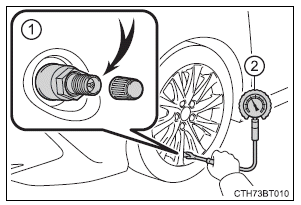

Inspection and adjustment procedure

  1. Tire valve
  2. Tire pressure gauge

Do-it-yourself maintenance

1. Remove the tire valve cap.

2. Press the tip of the tire pressure gauge onto the tire valve.

3. Read the pressure using the gauge gradations.

4. If the tire inflation pressure is not at the recommended level, adjust the pressure.

If you add too much air, press the center of the valve to deflate.

5. After completing the tire inflation pressure measurement and adjustment, apply soapy water to the valve and check for leakage.

6. Put the tire valve cap back on.

■Tire inflation pressure check interval

You should check tire inflation pressure every two weeks, or at least once a month.

Do not forget to check the spare.

■Effects of incorrect tire inflation pressure

Driving with incorrect tire inflation pressure may result in the following:

If a tire needs frequent inflating, have it checked by your Toyota dealer.

■Instructions for checking tire inflation pressure

When checking tire inflation pressure, observe the following:

WARNING

■Proper inflation is critical to save tire performance

Keep your tires properly inflated.

If the tires are not properly inflated, the following conditions may occur which could lead to an accident resulting in death or serious injury:

NOTICE

■When inspecting and adjusting tire inflation pressure

Be sure to put the tire valve caps back on.

If a valve cap is not installed, dirt or moisture may get into the valve and cause an air leak, resulting in decreased tire inflation pressure.

Tire pressure warning system
Your vehicle is equipped with a tire pressure warning system that uses tire pressure warning valve and transmitters to detect low tire inflation pressure before serious problems arise. Vehicles wit ...

Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced. Otherwise, the tire may separate from the wheel or cause a loss of handling control. Wheel selection When replacing wheels, ...
