Nissan Sentra Service Manual: Symptom diagnosis

Combination switch system symptoms

Symptom Table

  1. Perform the data monitor of consult to check for any malfunctioning item.

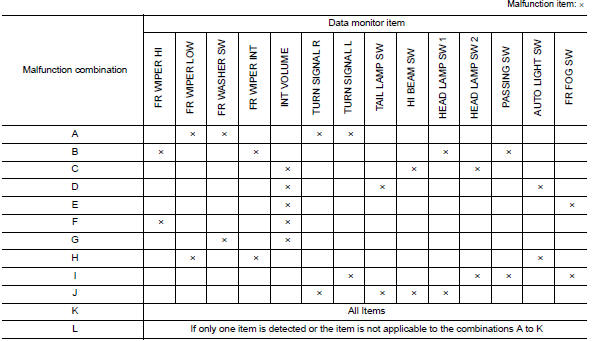

  2. Check the malfunction combinations.

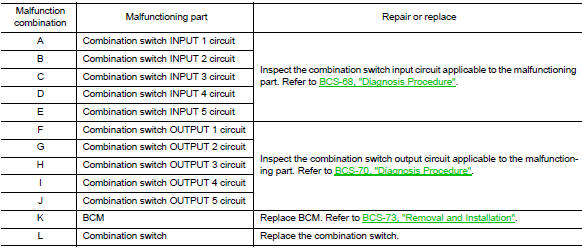

  1. Identify the malfunctioning part from the agreed combination and repair or replace the part.
