Nissan Sentra B18 (2020-2025) Service Manual: Steering Switches

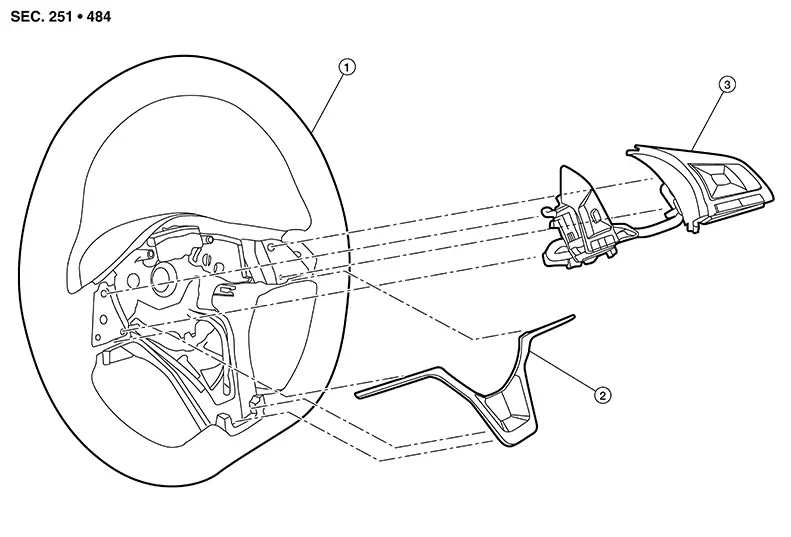

Exploded View
|
1. |
Steering wheel |
2. |
Steering wheel finisher |
3. |
Steering switches |
Removal and Installation
REMOVAL
Note:
The steering switches are serviced as an assembly.
Remove driver air bag. Refer to Removal and Installation.
Using a
suitable tool, release pawls on the steering wheel front finisher
(1) using suitable tool and remove from the steering wheel.
|
|
: Pawl |
Using a
suitable tool, release pawls on the steering switches (1) using
suitable tool and remove from the steering wheel.
|
|
: Pawl |
Disconnect steering switch connector from spiral cable and remove from Nissan Sentra vehicle.
INSTALLATION
Installation is in the reverse order of removal.
