Nissan Sentra B18 (2020-2025) Service Manual: Seat Belt Warning Lamp System
System Description
SYSTEM DIAGRAM
System Description

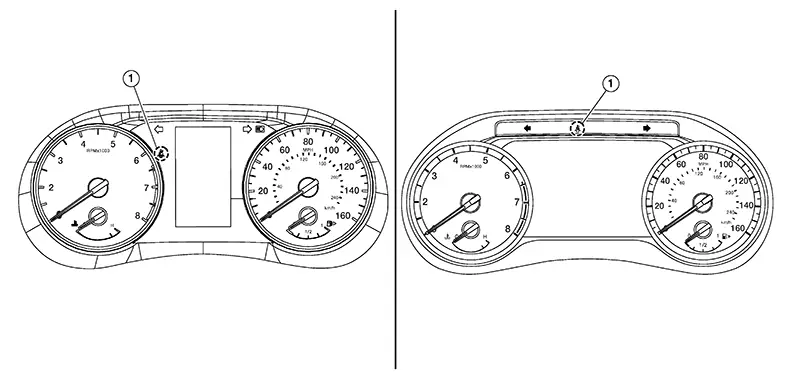

The seat belt warning lamp (1) will remind the driver if the driver or front passenger seat belt should be buckled. The system works in conjunction with the occupant classification system. Refer to System Description.
|
Driver seat status (Ignition switch ON) |
Passenger seat status |
Front seat belt buckle switch LH status |
Front seat belt buckle switch RH status |
Seat belt warning lamp |
|---|---|---|---|---|
|
Seat occupied |
Seat occupied |
Buckled |
Buckled |
Off |
|
Unbuckled |
On |
|||
|
Seat unoccupied |
— |
Off |
||
|
— |
Unbuckled |
On |
Occupant Classification System
System Description
System Description
SYSTEM DIAGRAM
System Description
The occupant classification system (OCS)
identifies different size occupants, out of position occupants, and
...
