Removal and Installation

CAUTION:

Rear bumper fascia is made of resin. Use care when handling to prevent damage. Avoid contact with oily substances.

REMOVAL

Remove rear combination lamp (body side) (LH/RH). Refer to Removal and Installation (Halogen Headlamp), or Removal and Installation (LED Headlamp).

Remove clip (A) and bolt (B) (LH/RH).

Remove screw [A (LH/RH)].

Remove screw [A (LH/RH)].

Remove clips (A).

Disconnect rear bumper harness connector.

To release pawls, pull rear bumper fascia outward in the sequence shown (LH/RH).

: Pawl

Remove rear bumper fascia from Nissan Sentra vehicle.

CAUTION:

When removing rear bumper fascia, two workers are required to prevent damage.

Remove rear bumper energy absorbers.

Remove nuts and rear bumper reinforcement. Refer to Exploded View.

Remove bolts and rear bumper reinforcement support (LH/RH). Refer to Exploded View.

Remove rear bumper side bracket (LH/RH) (if necessary).

Remove the following parts after removing rear bumper fascia (if necessary):

INSTALLATION

Installation is in the reverse order of removal.

Note:

After installation, perform the following action tests to confirm proper system operation:

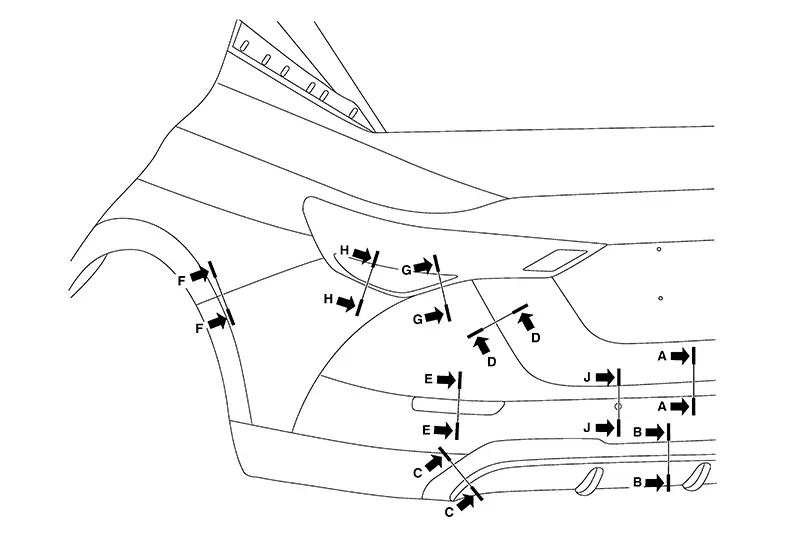

Note: EXCEPT FOR SR Unit: mm (in)

Section

Measurement

Minimum

Target Value

Maximum

A-A

Clearance

4.8-4.9 (0.189-0.193)

7.0-7.1 (0.276-0.280)

9.2-9.3 (0.362-0.366)

B-B

Clearance

0.3-0.4 (0.012-0.016)

1.3-1.4 (0.051-0.055)

2.3-2.4 (0.091-0.094)

C-C

Clearance

0.0-0.2 (0.0-0.008)

1.2-1.4 (0.047-0.055)

2.4-2.6 (0.094-0.102)

D-D

Clearance

2.1-2.2 (0.083-0.087)

4.1-4.2 (0.161-0.165)

6.1-6.2 (0.240-0.244)

E-E

Clearance

0.5-0.6 (0.020-0.024)

1.5-1.6 (0.059-0.063)

2.5-2.6 (0.098-0.102)

F-F

Clearance

0.0 (0.0)

0.3 (0.012)

1.1 (0.043)

F-F

Surface height

-0.3 (-0.01)

0.7 (0.028)

1.7 (0.067)

G-G

Clearance

0.3 (0.012)

2.0 (0.079)

3.9 (0.154)

H-H

Clearance

0.2 (0.008)

1.9 (0.075)

3.8 (0.150)

J-J

Clearance

0.0-0.1 (0.0-0.004)

0.5-0.6 (0.020-0.024)

1.0-1.1 (0.039-0.043)

J-J

Surface height

0.0-0.1 (0.0-0.004)

0.5-0.6 (0.020-0.024)

1.0-1.1 (0.039-0.043)

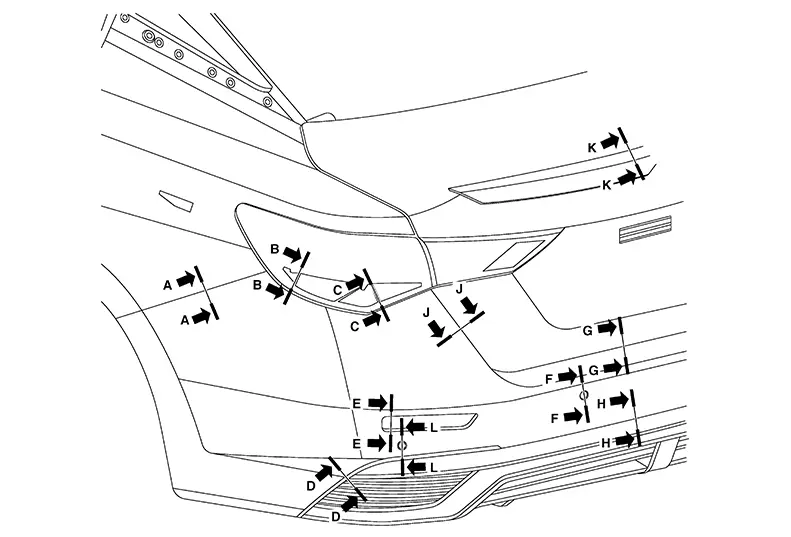

Note: FOR SR Unit: mm (in)

Section

Measurement

Minimum

Target Value

Maximum

A-A

Clearance

0.0 (0.0)

0.3 (0.012)

1.1 (0.043)

Surface height

-0.3 (-0.01)

0.7 (0.028)

1.7 (0.067)

B-B

Clearance

0.3 (0.012)

2.0 (0.079)

3.9 (0.154)

C-C

Clearance

0.3 (0.012)

2.0 (0.079)

3.9 (0.154)

D-D

Clearance

0.3 (0.012)

1.3 (0.051)

2.3 (0.091)

E-E

Clearance

0.5 (0.020)

1.5-1.6 (0.059-0.063)

2.6 (0.102)

F-F

Clearance

0.0 (0.0)

0.5 (0.020)

1.0 (0.039)

Surface height

-0.5 (-0.02)

0.0-0.5 (0.0-0.020)

1.0 (0.039)

G-G

Clearance

4.8 (0.189)

7.0-7.1 (0.276-0.280)

9.3 (0.366)

H-H

Clearance

0.1 (0.004)

1.6 (0.063)

3.1 (0.22)

J-J

Clearance

2.1 (0.083)

4.1-4.2 (0.161-0.165)

6.2 (0.244)

K-K

Clearance

0.1 (0.004)

1.0 (0.039)

1.9 (0.075)

L-L

Clearance

0.0 (0.0)

0.5 (0.020)

1.0 (0.039)

Surface height

-0.5 (-0.02)

0.0-0.5 (0.0-0.020)

1.0 (0.039)
