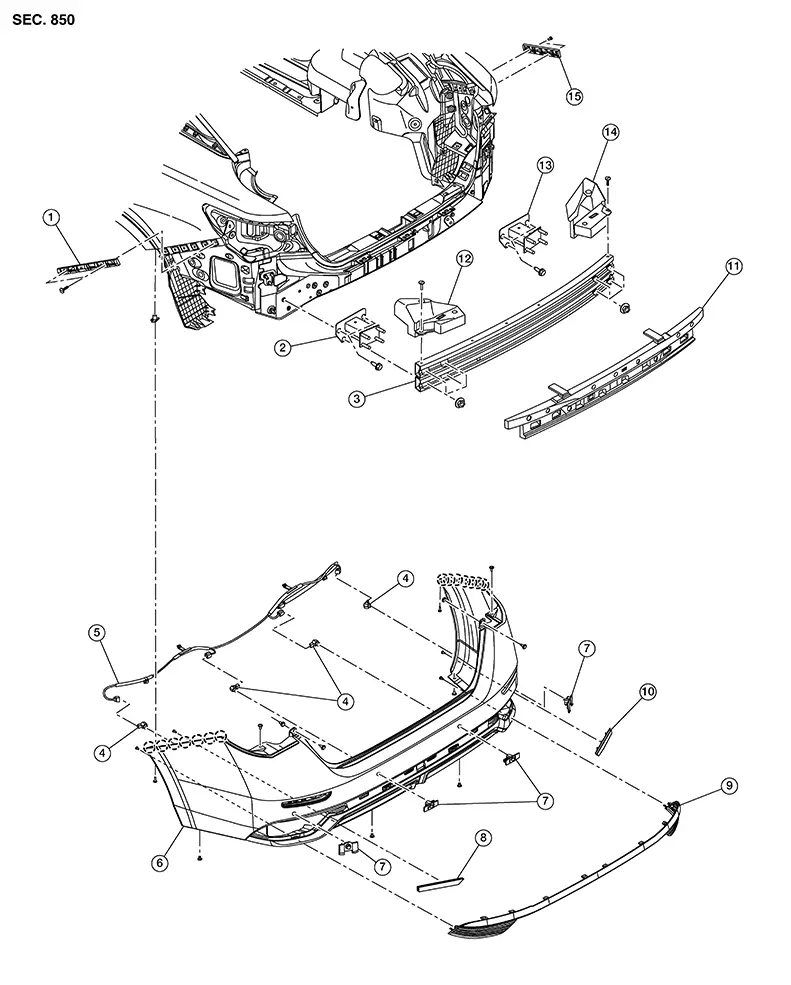

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Rear bumper side bracket (LH) |
2. |
Rear bumper reinforcement support (LH) |
3. |
Rear bumper reinforcement |
|
4. |
Sonar sensor |
5. |
Rear bumper harness |
6. |
Rear bumper fascia |
|
7. |
Exhaust finisher |
8. |
Sonar sensor |
9. |
Rear bumper fascia reflector (LH) |
|
10. |
Rear bumper finisher |
11. |
Rear bumper fascia reflector (RH) |
12. |
Rear bumper energy absorber |
|
13. |
Rear bumper energy absorber upper (LH) |
14. |
Rear bumper reinforcement support (RH) |
15. |
Rear bumper energy absorber upper (RH) |
|
16. |
Rear bumper side bracket (RH) |
|
Pawl |
|

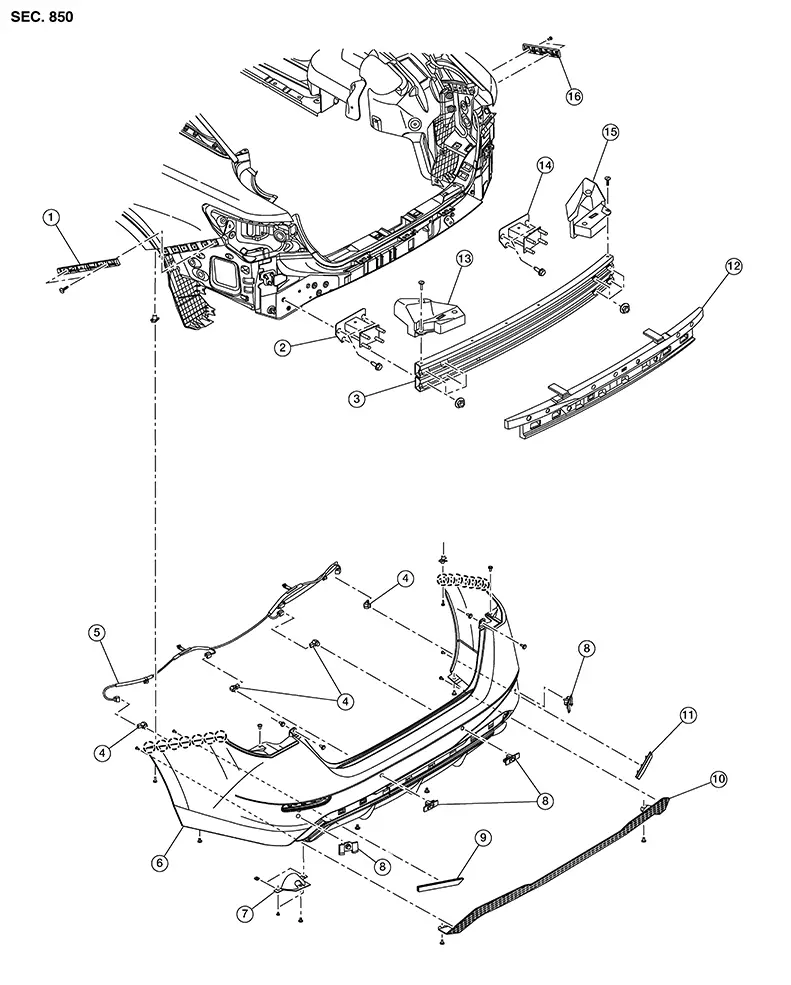

1. |
Rear bumper side bracket (LH) |
2. |
Rear bumper reinforcement support (LH) |
3. |
Rear bumper reinforcement |
|
4. |
Sonar sensor |
5. |
Rear bumper harness |
6. |
Rear bumper fascia |
|
7. |
Sonar sensor |
8. |
Rear bumper fascia reflector (LH) |
9. |
Rear bumper finisher |
|
10. |
Rear bumper fascia reflector (RH) |
11. |
Rear bumper energy absorber |
12. |
Rear bumper energy absorber upper (LH) |
|
13. |
Rear bumper reinforcement support (RH) |
14. |
Rear bumper energy absorber upper (RH) |
15. |
Rear bumper side bracket (RH) |
|
|
Pawl |
Rear Bumper
...
Removal and Installation
Removal and
Installation
CAUTION:
Rear bumper fascia is made of resin. Use care when
handling to prevent damage. Avoid contact with oily substances.
REMOVAL
Remove rear c ...
