Nissan Sentra B18 (2020-2025) Service Manual: Description
Engine Cooling System
-
The radiator adopts a side flow aluminum radiator core.
-
A drive belt is adopted for water pump operation.
-
A shallow bottom is adopted for the cylinder block water jacket for optimizing cooling performance.
-
An electric cooling fan is adopted. The cooling fan is controlled by signals from the ECM (engine control module).
|

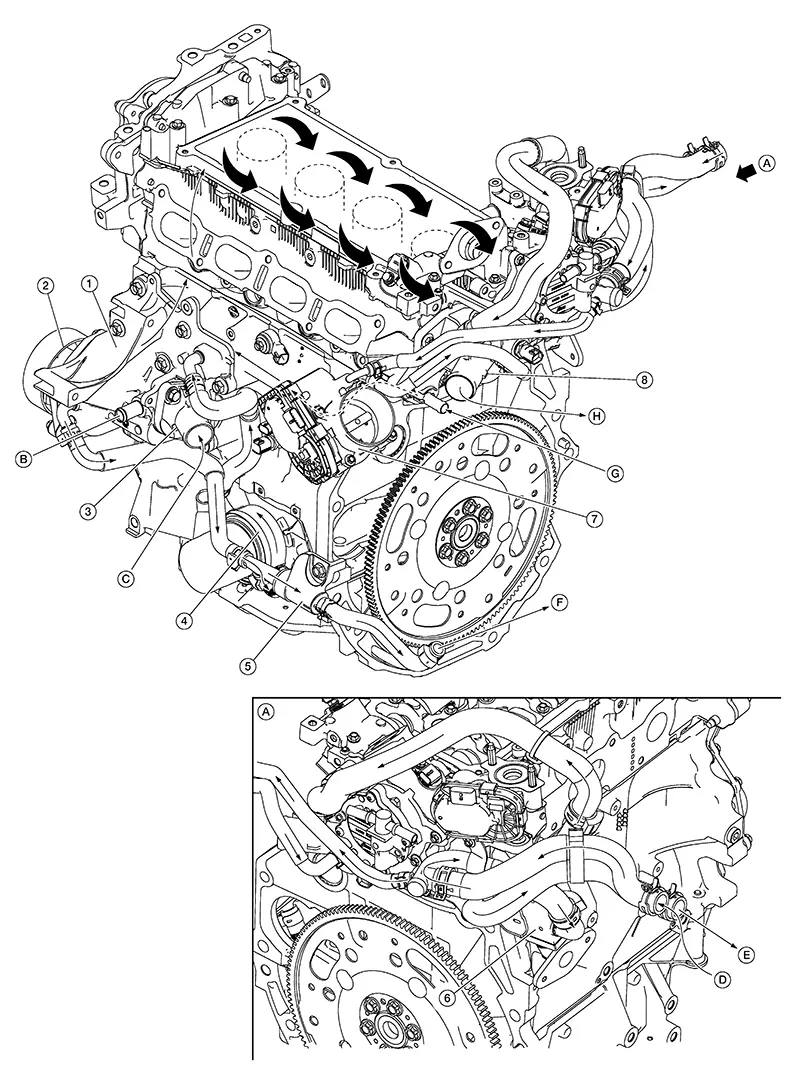

1. |
Water pump housing |
2. |
Water pump |
3. |
Water inlet |
|
4. |
Oil cooler |
5. |
Heater thermostat assembly (CVT models only) |
6. |
EGR cooler |
|
7. |
Electric throttle control actuator |
8. |
Water outlet |
A. |
View A |
|
B. |
From reservoir tank. Refer to Exploded View. |
C. |
From radiator. Refer to Exploded View. |
D. |
From heater core. Refer to Exploded View. |
|
E. |
To heater core. Refer to Exploded View. |
F. |
To CVT fluid warmer (CVT models only). Refer to Exploded View. |
G. |
From CVT fluid warmer (CVT models only). Refer to Exploded View. |
|
H. |
To radiator. Refer to Exploded View. |

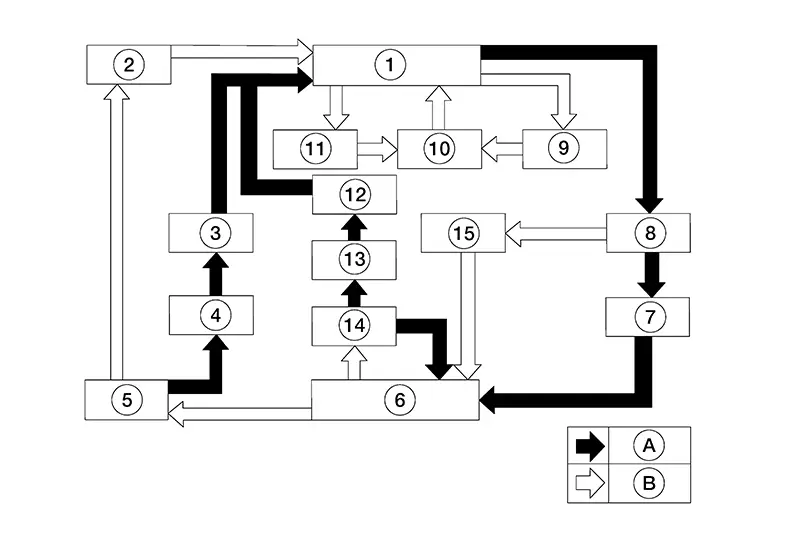

Engine Cooling System Schematic
|
1. |
Water outlet |
2. |
Cylinder head |
3. |
Water control valve |
|
4. |
Cylinder block |
5. |
Water pump |
6. |
Water pump housing |
|
7. |
Water inlet |
8. |
Radiator |
9. |
Electric throttle control actuator |
|
10. |
EGR cooler |
11. |
Heater core |
12. |
CVT fluid warmer |
|
13. |
Heater thermostat assembly |
14. |
Oil cooler |
15. |
Reservoir tank |
|
A. |
High temperature |
B. |
Normal temperature |
|
1. |
Water outlet |
2. |
Cylinder head |
3. |
Water control valve |
|
4. |
Cylinder block |
5. |
Water pump |
6. |
Water pump housing |
|
7. |
Water inlet |
8. |
Radiator |
9. |
Electric throttle control actuator |
|
10. |
EGR cooler |
11. |
Heater core |
12. |
Reservoir tank |
|
13. |
Oil cooler |
A. |
High temperature |
B. |
Normal temperature |
