Nissan Sentra B18 (2020-2025) Service Manual: Removal and Installation
REMOVAL
Note:
RH front door panel shown; LH side similar.
Remove the front door finisher. Refer to Removal and Installation.
Remove the vapor barrier.
CAUTION:
Use care to not damage or tear vapor barrier during removal.
Temporarily reconnect the main power window and door lock/unlock switch (LH door) or power window and door lock/unlock switch (RH door) to raise/lower the door glass until the door glass bolts can be seen through the access holes.

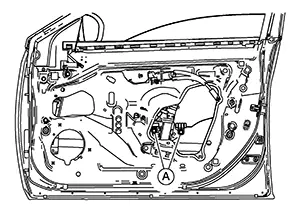

Remove the
front door regulator to glass bolts (A).
Raise the
front door glass and hold with a suitable tool (A).
Disconnect the harness connector from the front power window motor.

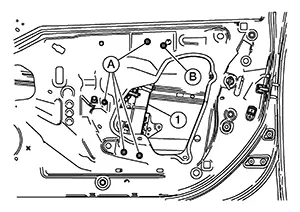

Remove
bolts (A) then loosen bolt (B) from the front regulator (1).
Remove the front regulator.
INSPECTION AFTER REMOVAL
Check the front door glass regulator for the following items.
-
Wire wear.
-
Regulator deformation.
-
Grease condition for each sliding part.
If a malfunction is detected, replace or grease it using multi-purpose grease as shown.
INSTALLATION
Installation is in the reverse order of removal.
Exploded View
Exploded View
1.
Door glass rubber
run
2.
...
Inspection and Adjustment
Inspection and Adjustment
SYSTEM INITIALIZATION (IF NECESSARY)
If any of
the following occur, system initialization must be
performed.
Electric power supply to power windo ...
