Nissan Sentra B18 (2020-2025) Service Manual: Removal and Installation
CAUTION:
When removing radiator core support upper, be careful not to damage the painted surface.
REMOVAL
Disconnect the battery. Refer to Battery Disconnect.
Remove front bumper fascia. Refer to Exploded View.
Remove crash zone sensor bracket bolts and place crash zone sensor with bracket aside. Refer to Exploded View.
Remove hood lock bolts and place hood lock aside.
Release hood lock harness retainer.
Remove the air cleaner inlet duct. Refer to Exploded View.
Release hood lock release cable clip.

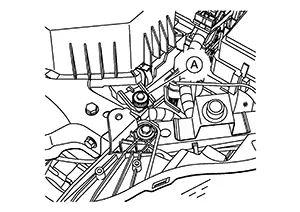

Remove the
air cleaner upper bolt (A).
Remove horn bolt and place horn aside. Refer to Exploded View.
Remove air guide (upper). Refer to Exploded View.
Remove air guide (LH/RH) upper clips. Refer to Exploded View.
Remove upper radiator pin locators. Refer to Exploded View.
Remove bolts and radiator core support upper.
INSTALLATION
Installation is in the reverse order of removal.
Exploded View
Exploded View
1.
Radiator core support upper
...
Front Fender
...
