Nissan Sentra B18 (2020-2025) Service Manual: Door Motor

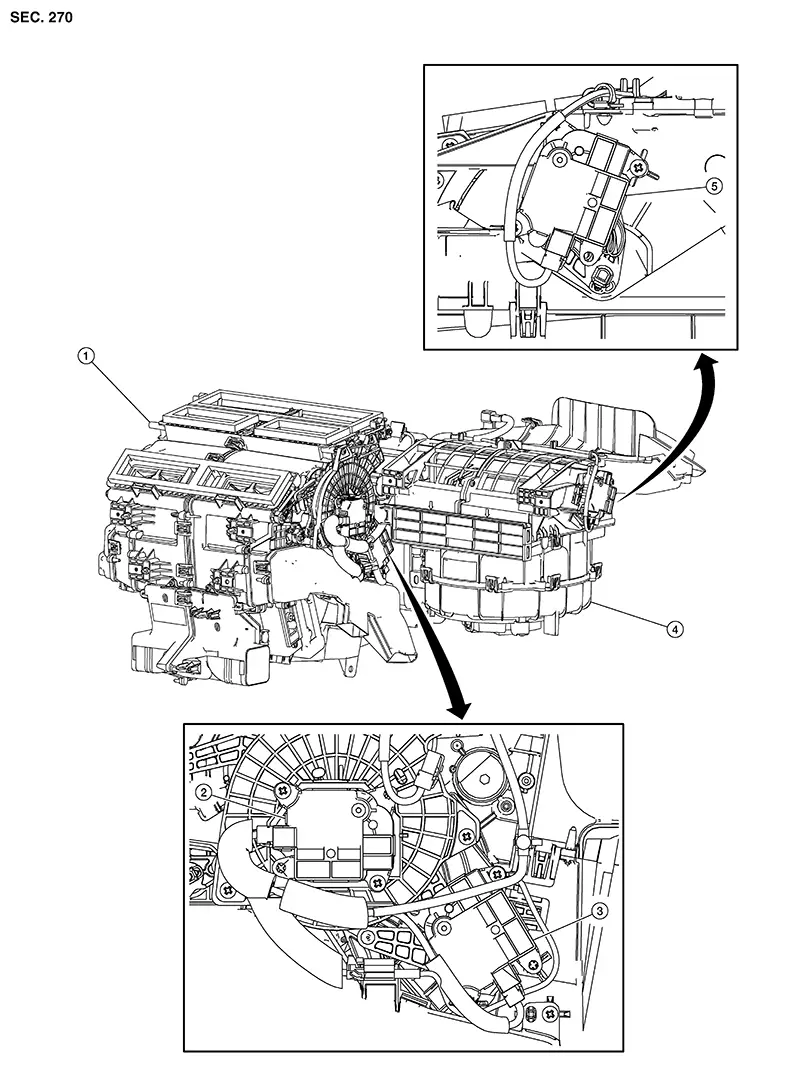

Exploded View
|
1. |
Heating and cooling unit assembly |
2. |
Mode door motor |
3. |
Air mix door motor |
|
4. |
Blower motor unit |
5. |
Intake door motor |
Intake Door Motor
Removal and Installation
REMOVAL
Remove heating and cooling unit assembly. Refer to Removal and Installation.
Disconnect harness connector from intake door motor.
Remove intake door motor screws and the intake door motor.
INSTALLATION
Installation is in the reverse order of removal.
Mode Door Motor
Removal and Installation
REMOVAL
Remove knee air bag module RH. Refer to Removal and Installation.
Disconnect the harness connector from the mode door motor.
Remove the mode door motor screws and the mode door motor.
INSTALLATION
Installation is in the reverse order of removal.
Air Mix Door Motor
Removal and Installation
REMOVAL
Remove knee air bag module RH. Refer to Removal and Installation.
Disconnect the harness connector from the air mix door motor.
Remove the air mix door motor screws and the air mix door motor.
INSTALLATION
Installation is in the reverse order of removal.
Refrigerant Pressure Sensor
Removal and Installation
Removal and Installation
The
refrigerant pressure sensor is an integral part of the high
pressure pipe.
If
replacement of the refrigerant pressure sen ...
