Nissan Sentra B18 (2020-2025) Service Manual: Relation Between Illustrations and Descriptions

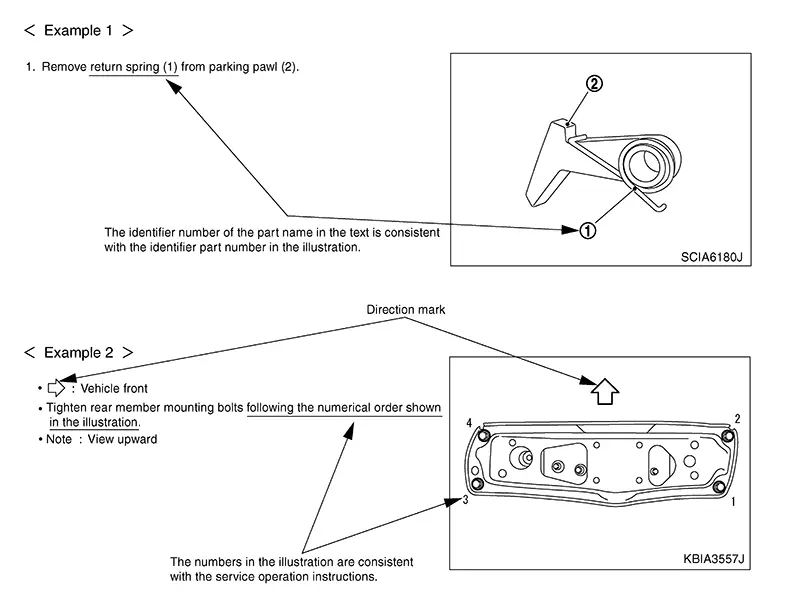

The following sample explains the relationship between the part description in an illustration, the part name in the text and the service procedures.
Contents
Contents
THE CONTENTS are listed on the first page
of each section.
THE TITLE is indicated on the upper
portion of each page and shows the part or system. ...
Components
Components
THE LARGE ILLUSTRATIONS are exploded views
(see the following) and contain tightening torques, lubrication
points, section number of the PARTS CATALOG (e.g. SE ...
