Nissan Sentra B18 (2020-2025) Service Manual: Rear Seat Belt Buckle
Removal and Installation
Rear Seat Belt Buckle (RH/Center)
REMOVAL
Warning:
-
Before servicing the SRS, place the ignition switch in the OFF position, disconnect both battery terminals then wait at least three minutes.
Remove rear pillar lower finisher. Refer to Removal and Installation – Rear Pillar Lower Finisher.
Disconnect
the harness connector (A) and release the harness from
attachments.
|
|
: Front |
Take note of harness routing and attachment locations for correct installation.

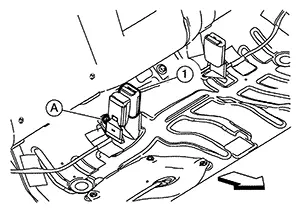

Remove bolt
(A) and the rear seat belt buckle (1) from Nissan Sentra vehicle.
|
|
: Front |
INSTALLATION
Installation is in the reverse order of removal.
-
Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to Inspection.
-
Tighten the rear seat belt buckle anchor bolt to specification. Refer to Exploded View.
Rear Seat Belt Buckle (LH)
REMOVAL
Warning:
-
Before servicing the SRS, place the ignition switch in the OFF position, disconnect both battery terminals then wait at least three minutes.
Remove rear pillar lower finisher. Refer to Removal and Installation – Rear Pillar Lower Finisher.
Disconnect
the harness connector (A) and release the harness from
attachments.
Note:
Take note of harness routing and attachment locations for correct installation.
|
|
: Front |
Remove bolt
(A) and the rear seat belt buckle (1) from Nissan Sentra vehicle.
|
|
: Front |
INSTALLATION
Installation is in the reverse order of removal.
-
Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to Inspection.
-
Tighten the rear seat belt buckle anchor bolt to specification. Refer to Exploded View.
Rear Seat Belt Retractor
Removal and Installation
Removal and Installation
Rear Seat Belt Retractor (LH/RH)
REMOVAL
Warning:
Before servicing the SRS, place the ignition
switch in the ...
