Toyota Camry Owner's Manual (2023): Outside rear view mirrors

Adjustment procedure

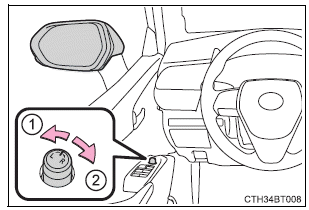

1. To select a mirror to adjust, turn the switch.

  1. Left
  2. Right

Adjusting the steering wheel and mirrors

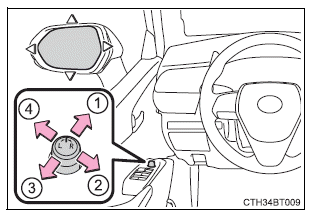

2. To adjust the mirror, operate the switch.

  1. Up
  2. Right
  3. Down
  4. Left

Adjusting the steering wheel and mirrors

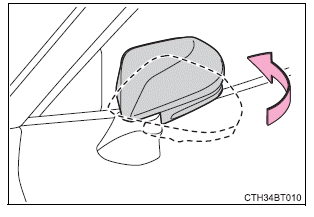

Folding the mirrors

Push the mirror back in the direction of the vehicle's rear.

Adjusting the steering wheel and mirrors

■Mirror angle can be adjusted when

Vehicles without a smart key system

The engine switch is in the "ACC" or "ON" position.

Vehicles with a smart key system

The engine switch is in ACCESSORY or IGNITION ON mode.

■When the mirrors are fogged up (vehicles with outside rear view mirror defoggers)

The outside rear view mirrors can be cleared using the mirror defoggers. Turn on the rear window defogger to turn on the outside rear view mirror defoggers.

WARNING

■Important points while driving

Observe the following precautions while driving.

Failure to do so may result in loss of control of the vehicle and cause an accident, resulting in death or serious injury.

■When a mirror is moving

To avoid personal injury and mirror malfunction, be careful not to get your hand caught by the moving mirror.

■When the mirror defoggers are operating (vehicles with outside rear view mirror defoggers)

Do not touch the rear view mirror surfaces, as they can become very hot and burn you.
