Nissan Sentra B18 (2020-2025) Service Manual: Garage Jack and Safety Stand and 2-Pole Lift
Warning:
-
Park the vehicle on a level surface when using the jack. Make sure to avoid damaging pipes, tubes, etc. under the Nissan Sentra vehicle.
-
Never get under the vehicle while it is supported only by the jack. Always use safety stands when you have to get under the Nissan Sentra vehicle.
-
Place wheel chocks at both front and back of the wheels on the ground.
-
Lift at reinforced area of front suspension member where lower control arm attaches, staying in center line of wheels.
-
When lifting the Nissan Sentra vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
-
When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, fuel lines and sill spoiler.
|

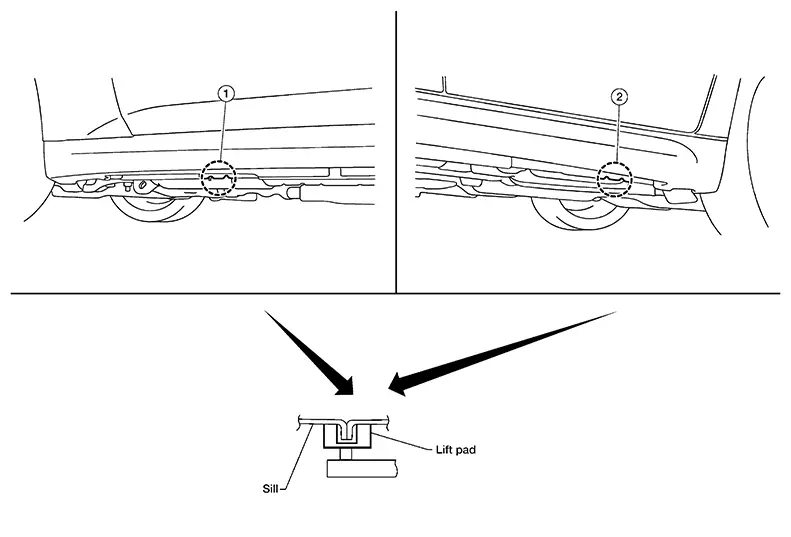

1. |
Safety stand point and lift up point (front) |
2. |
Safety stand point and lift up point (rear) |
Special Service Tool
Special Service Tool
The actual shapes of Kent-Moore tools may differ
from those of special service tools illustrated here.
Tool number
...
Board-On Lift
Board-on Lift
CAUTION:
Make sure vehicle is empty when lifting.
The board-on lift attachment (A) set at front end
of Nissan Sentra vehicle should be set on the f ...
