Toyota Camry Owner's Manual (2023): Garage door opener

The garage door opener can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, security systems, and other devices.

System components

The HomeLink wireless control system in your vehicle has 3 buttons which can be programmed to operate 3 different devices. Refer to the programming methods on the following pages to determine the method which is appropriate for the device.

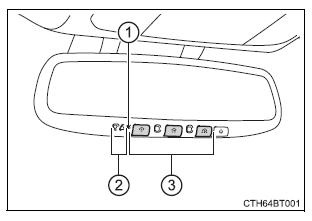

  1. HomeLink indicator light
  2. Garage door operation indicators
  3. Buttons

Other interior features

■ Before programming the HomeLink

■ HomeLink programming procedure

The programming procedures can also be found at the following URL.

Website: www.homelink.com/ toyota

For support, contact customer support at the following.

Help Line: 1-800-355-3515

Other interior features

■ Programming the HomeLink

Steps 1 through 3 must be performed within 60 seconds, otherwise the indicator light will stop flashing and programming will not be able to be completed.

1. Press and release the HomeLink button you want to program and check that the HomeLink indicator light flashes orange.

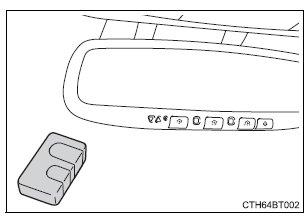

2. Point the remote control transmitter for the device at the rear view mirror, 1 to 3 in.

(25 to 75 mm) from the HomeLink buttons.

Keep the HomeLink indicator light in view while programming.

Other interior features

3. Program a device.

Other interior features

Programming a device other than an entry gate (for U.S.A. owners)

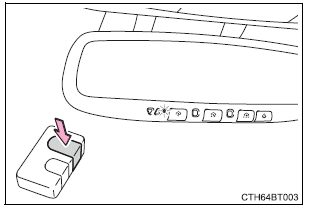

Press and hold the remote control transmitter button until the HomeLink indicator light changes from slowly flashing orange to rapidly flashing green (rolling code) or continuously lit green (fixed code), then release the button.

Programming an entry gate (for U.S.A. owners)/Programming a device in the Canadian market

Press and release the remote control transmitter button at 2 second intervals, repeatedly, until the HomeLink indicator light changes from slowly flashing orange to rapidly flashing green (rolling code) or continuously lit green (fixed code).

4. Test the HomeLink operation by pressing the newly programmed button and observing the indicator light:

5. Repeat the steps above to program another device for any of the remaining HomeLink buttons.

■ Programming a rolling code system

2 or more people may be necessary to complete rolling code programming.

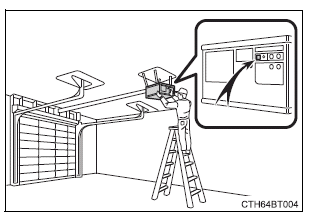

1. Locate the "Learn" or "Smart" button on the garage door opener motor in the garage.

This button can usually be found where the hanging antenna wire is attached to the unit. The name and color of the button may vary by manufacturer.

Refer to the Owner's manual supplied with the garage door opener motor for details.

Other interior features

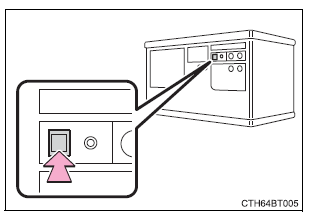

2. Press and release the "Learn" or "Smart" button.

Perform 3 within 30 seconds after performing 2.

Other interior features

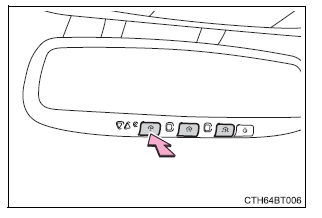

3. Press and hold the desired HomeLink button (inside the vehicle) for 2 seconds and release it. Repeat this sequence (press/hold/ release) up to 3 times to complete programming.

If the garage door opener motor operates when the HomeLink button is pressed, the garage door opener motor recognizes the HomeLink signal.

Other interior features

■ Enabling 2-way communication with a garage door (only available for compatible devices)

When enabled, 2-way communication allows you to check the status of the opening and closing of a garage door through indicators in your vehicle.

2-way communication is only available if the garage door opener motor used is a compatible device. (To check device compatibility, refer to www.HomeLink.com.)

1. Within 5 seconds after programming the garage door opener has been completed, if the garage door opener motor is trained to HomeLink, both garage door operation indicators will flash rapidly green and the light on the garage door opener motor will blink twice, indicating that 2-way communication is enabled.

If the indicators do not flash, perform 2 and 3 within the first 10 presses of the HomeLink button after programming has been completed.

2. Press a programmed HomeLink button to operate a garage door.

3. Within 1 minute of pressing the HomeLink button, after the garage door operation has stopped, press the "Learn" or "Smart" button on the garage door opener motor. Within 5 seconds of the establishment of 2-way communication with the garage door opener, both garage door operation indicators in the vehicle will flash rapidly green and the light on the garage door opener motor will blink twice, indicating that 2-way communication is enabled.

■ Reprogramming a single HomeLink button

When the following procedure is performed, buttons which already have devices registered to them can be overwritten:

1. With one hand, press and hold the desired HomeLink button.

2. When the HomeLink indicator starts flashing orange, continue to hold the HomeLink button and perform "Programming the HomeLink" (it takes 20 seconds for the HomeLink indicator to start flashing).

Operating the HomeLink

Press the appropriate HomeLink button. The HomeLink indicator light should turn on.

Armrest (if equipped)
Fold down the armrest for use. NOTICE To prevent damage to the armrest, do not apply too much load on the armrest. Assist grips An assist grip installed on the ceiling can be used to support ...

Garage door operation indicators
The status of the opening and closing of a garage door is shown by the indicators. Opening Closing This function is only available if the garage door opener motor used is a compatible d ...
