Nissan Sentra Service Manual: Front regulator

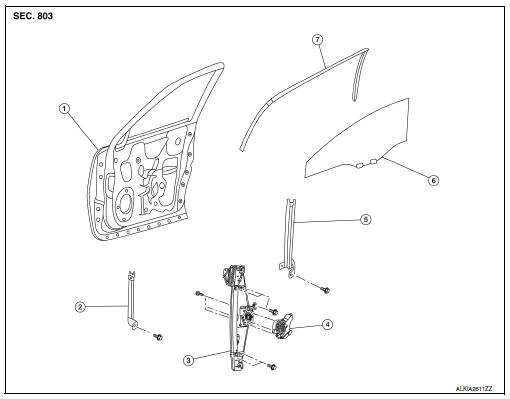

Exploded View
- Front door panel
- Front door glass channel front
- Front door glass regulator
- Front door glass regulator motor
- Front door glass channel rear
- Front door glass
- Front door glass rubber run
Removal and Installation
REMOVAL
WARNING:
- Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least three minutes.
- Do not use air tools or electric tools for servicing.
NOTE:
LH front door panel shown; RH side similar.
- Disconnect the battery positive and negative terminal. Refer to PG-50, "Removal and Installation (Battery)".
- Remove the front door finisher. Refer to INT-15, "Removal and Installation".
- Remove the vapor barrier.
CAUTION:
Use care to not damage or tear vapor barrier during removal.
- Temporarily reconnect both battery terminals and the main power window and door lock/unlock switch (LH door) or power window and door lock/unlock switch (RH door) to raise/lower the door glass until the door glass bolts can be seen through the access holes.
- Remove the front door regulator to glass bolts (A).
- Raise the front door glass and hold with a suction lifter (A).
- Disconnect the harness connector from the front door glass regulator motor.
- Remove front door glass regulator bolts (A) and the front door glass regulator.
INSPECTION AFTER REMOVAL
Check the front door glass regulator for the following items. If a malfunction is detected, replace the regulator.
- Excessive cable wear (B).
- Regulator channel deformation (A).
- Apply multi-purpose grease at the application points (
) as shown.
INSTALLATION
Installation is in the reverse order of removal.
Inspection and Adjustment
SYSTEM INITIALIZATION (IF NECESSARY)
- If any of the following occur, system initialization must be performed.
- Electric power supply to power window switch or motor is interrupted by blown fuse or disconnecting battery cable, etc.
- Removal and installation of the regulator assembly.
- Removal and installation of the motor from the regulator assembly.
- Removal and installation of the harness connector of the power window switch.
- Operation of the regulator assembly as a unit.
- Removal and installation of the door glass.
- Removal and installation of the door glass run.
- Window is partly opened and or closed multiple times with out being fully closed.
- To perform system initialization, refer to PWC-29, "Work Procedure".
INSPECT THE FUNCTION OF THE ANTI-PINCH SYSTEM.
To inspect the anti-pinch system, refer to PWC-29, "Work Procedure".
