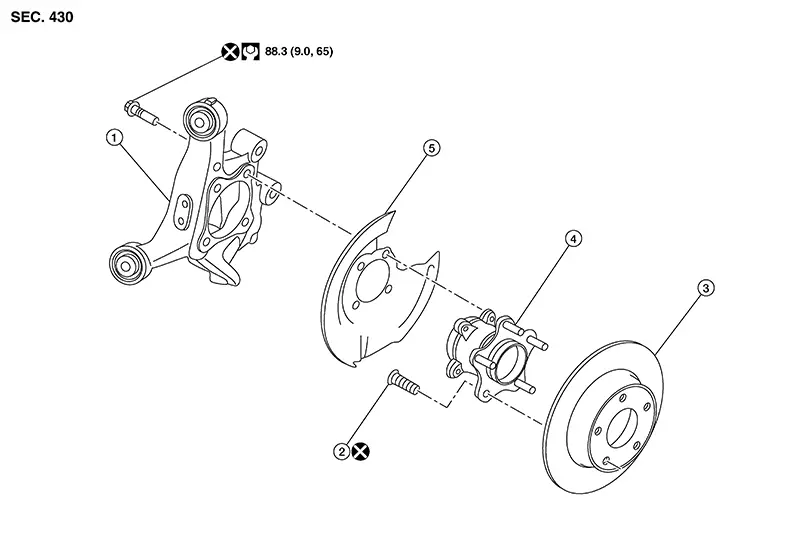

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View - Without Drum Brake
|
1. |
Rear knuckle |
2. |
Wheel stud |
3. |
Disc rotor |
|
4. |
Wheel hub assembly (Bearing-integrated type) |
5. |
Back plate |
Removal and Installation — with Drum Brake
Removal and
Installation — With Drum Brake
REMOVAL
Remove rear brake drum. Refer to Removal and Installation.
CAUTION:
Do not depress brake pedal while rear brake drum
...
Removal and Installation - Without Drum Brake
Removal and
Installation - Without Drum Brake
REMOVAL
Remove the rear brake caliper assembly
and disc rotor. Refer to Removal and Installation.
CAUTION:
Do not depress brake p ...
