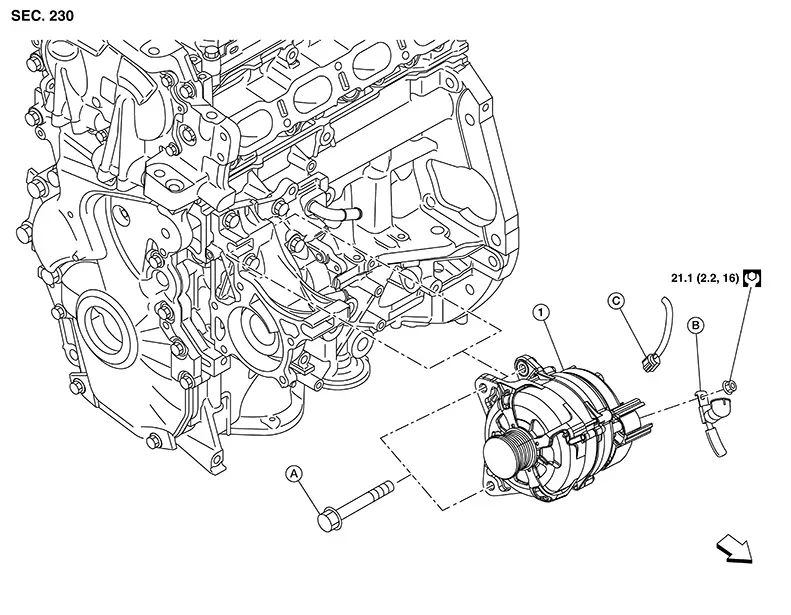

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Generator |
A. |
Refer to Removal and Installation. |
B. |
"B" terminal harness |
|
C. |
Harness connector |
 |
Front |
Generator
...
Removal and Installation
Removal and Installation
REMOVAL
Disconnect
the battery negative terminal. Refer to Battery Disconnect.
Remove
intake manifold. Refer to Removal and Installation.
Partially
re ...
