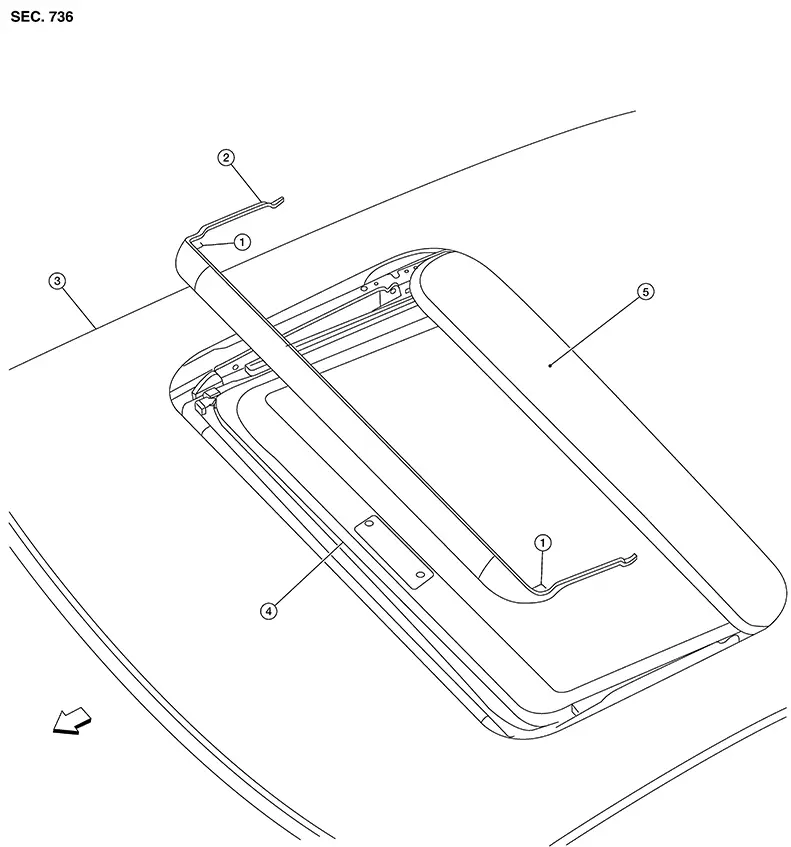

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Spring |
2. |
Wind deflector |
3. |
Roof panel |
|
4. |
Sunshade |
5. |
Glass lid |
|
Front |
Wind Deflector
...
Removal and Installation
Removal and Installation
REMOVAL
Open the
glass lid.
Release
wind deflector (1) from hooks (A).
:
Front
Release the
springs (LH/RH), then remove the wind deflector.
...
