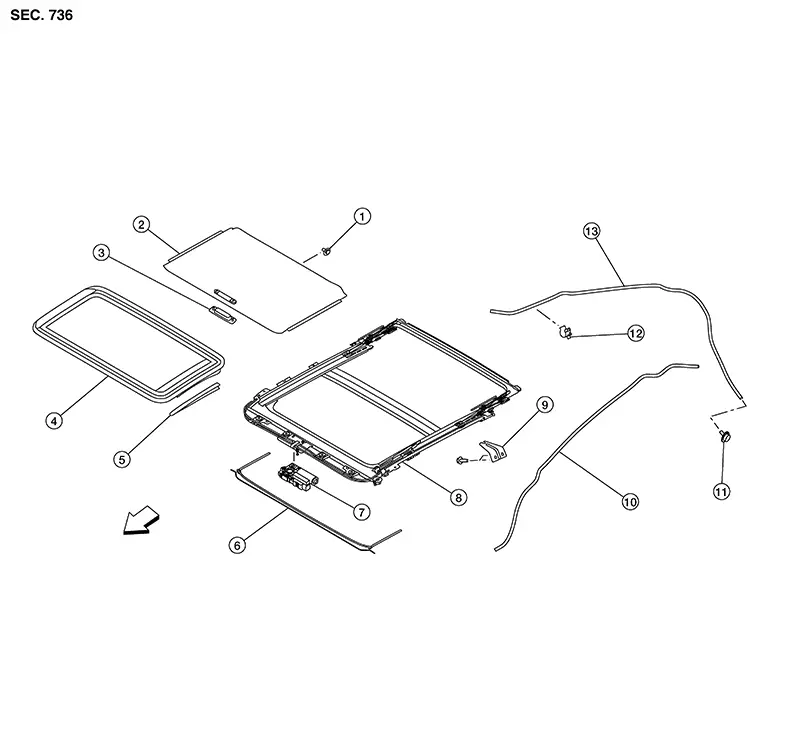

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Sunshade stopper |
2. |
Sunshade |
3. |
Sunshade handle |
|
4. |
Glass lid |
5. |
Inner blind (LH/RH) |
6. |
Wind deflector |
|
7. |
Moonroof motor assembly |
8. |
Moonroof unit assembly |
9. |
Rear moonroof bracket (LH/RH) |
|
10. |
Front drain hose (LH/RH) |
11. |
Plug |
12. |
Clip |
|
13. |
Rear drain hose (LH/RH) |
|
Front |
Inspection
Inspection
WIND DEFLECTOR
Open glass
lid fully.
Visually
check for proper installation, damaged/deteriorated components, or
foreign objects within mechanism. Correct as required f ...
Removal and Installation
Removal and Installation
CAUTION:
After installing either moonroof unit assembly or
glass lid, check gap/height adjustments and operation to make sure
ther ...
