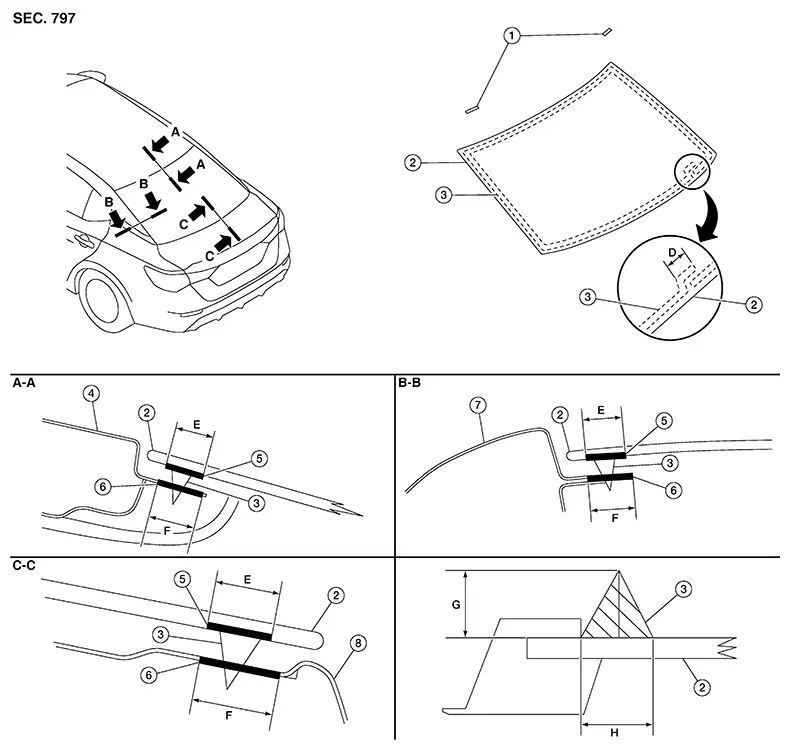

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Spacer |
2. |
Rear window glass |
3. |
Adhesive |
|
4. |
Roof panel |
5. |
Glass primer |
6. |
Body primer |
|
7. |
Body side outer |
8. |
Body side outer |
D. |
30 mm (1.2 in) |
|
E. |
13 mm (0.51 in) |
F. |
15 mm (0.59 in) |
G. |
14 mm ± 1.0 mm (0.55 ± 0.03) |
|
H. |
8.0 mm ± 1.0 mm (0.31 ± 0.03) |
Removal and Installation
Removal and Installation
REMOVAL
Remove the
rear pillar finishers (LH/RH). Refer to Removal and Installation — Rear Pillar
Upper Finisher.
Remove the
connectors and grounds for ...
