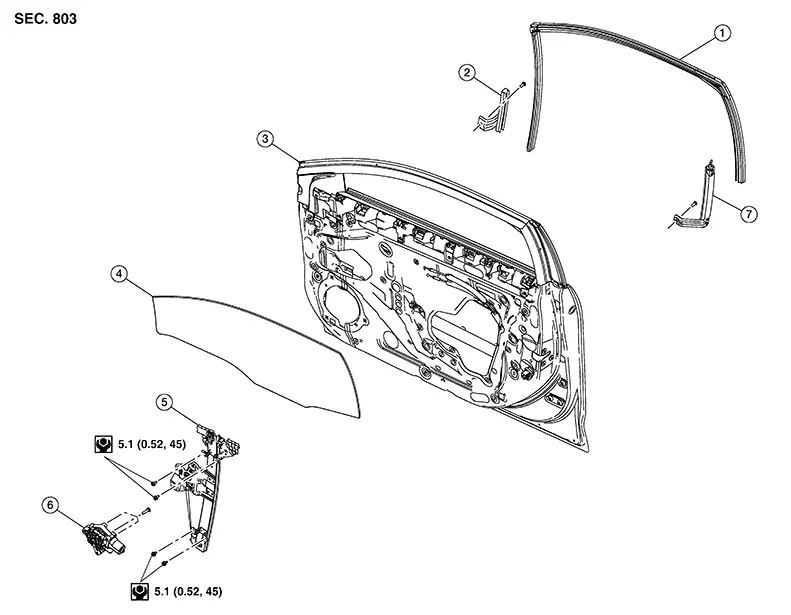

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Door glass rubber run |
2. |
Front door glass front run |
3. |
Front door panel |
|
4. |
Front door glass |
5. |
Front door glass regulator |
6. |
Front power window motor |
|
7. |
Front door glass rear run |
Front Door Glass
...
Removal and Installation
Removal and Installation
REMOVAL
Warning:
Before servicing, turn ignition switch OFF,
disconnect both battery terminals and wait at least three
minutes.
...
