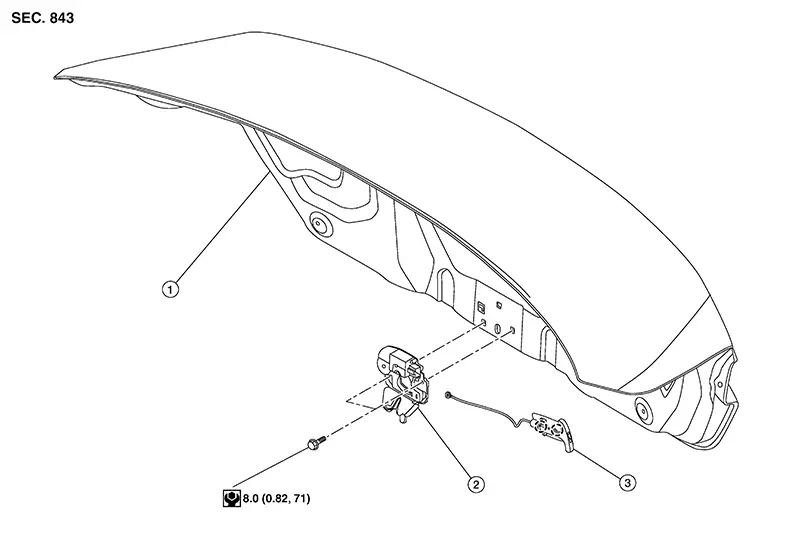

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Trunk lid assembly |
2. |
Trunk lid opener assembly |
3. |
Emergency lever assembly |
|
|
Pawl |
Trunk Lid Opener Assembly
Removal and Installation
Removal and Installation
REMOVAL
Remove
trunk lid trim. Refer to Removal and Installation.
Remove
trunk lid opener assembly bolts.
Disconnect
harn ...
