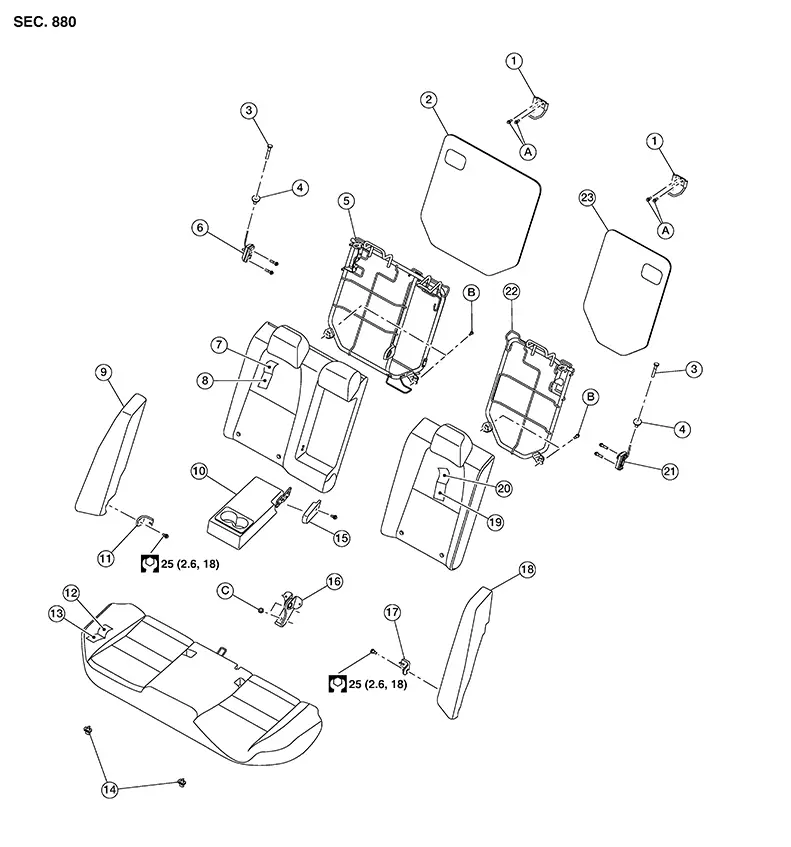

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
60:40 SPLIT SEATBACK
|
1. |
Seatback striker |
2. |
Rear seatback insulator (RH) |
3. |
Seatback latch release knob |
|
4. |
Seatback latch release knob finisher |
5. |
Rear seatback frame (RH) |
6. |
Seatback latch assembly (RH) |
|
7. |
Seatback trim (RH) |
8. |
Seatback pad (RH) |
9. |
Rear seat bolster (RH) |
|
10. |
Armrest assembly (if equipped) |
11. |
Seatback hinge bracket (RH) |
12. |
Seat cushion trim |
|
13. |
Seat cushion pad |
14. |
Seat cushion hook |
15. |
Armrest hinge finisher (if equipped) |
|
16. |
Seatback hinge bracket (center) |
17. |
Seatback hinge bracket (LH) |
18. |
Seatback bolster (LH) |
|
19. |
Seatback pad (LH) |
20. |
Seatback trim (LH) |
21. |
Seatback latch assembly (LH) |
|
22. |
Rear seatback frame (LH) |
23. |
Rear seatback insulator (LH) |
A. |
Refer to Removal and Installation |
|
B. |
Refer to Removal and Installation |
C. |
Refer to Removal and Installation |
Rear Seat
...
Removal and Installation - Seat Cushion Assembly
Removal and Installation - Seat Cushion Assembly
REMOVAL
Lift up the
seat cushion assembly close to the front edge (B) to release it
from the seat cushion hooks (A) (one for each side).
...
