Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|

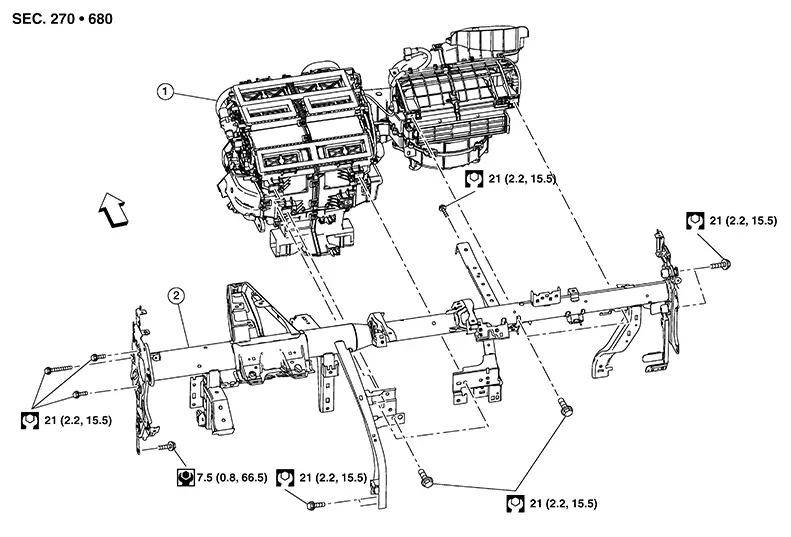

1. |
Heating and cooling unit assembly |
2. |
Steering member assembly |
|
Front |
|

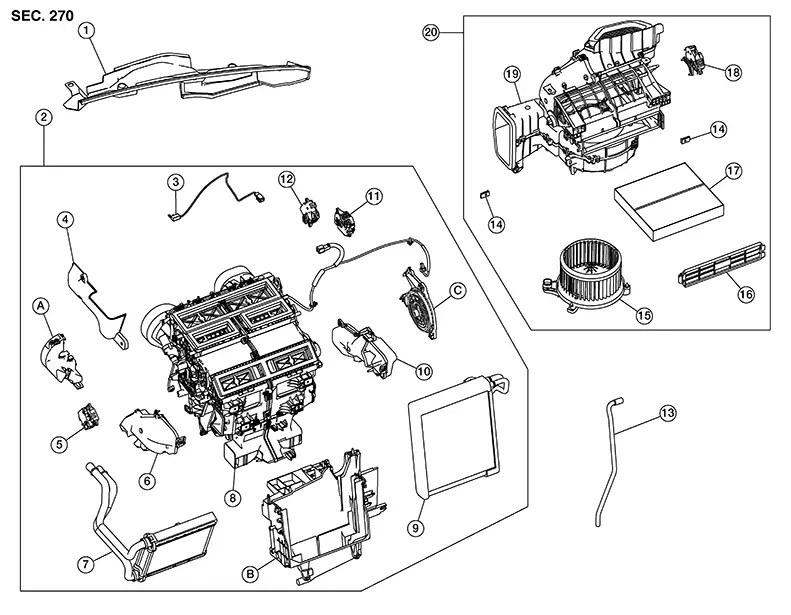

1. |
Air intake cover |
2. |
Heating and cooling unit assembly |
3. |
Intake sensor |
|
4. |
Heater core pipe cover |
5. |
Air mix door motor [LH (automatic A/C only)] |
6. |
Foot duct (LH) |
|
7. |
Heater core |
8. |
Heating and cooling unit |
9. |
Evaporator |
|
10. |
Front floor duct (RH) |
11. |
Mode door motor |
12. |
Air mix door motor (RH) |
|
13. |
Drain hose |
14. |
J nut |
15. |
Blower motor |
|
16. |
In-cabin microfilter cover |
17. |
In-cabin microfilter |
18. |
Intake door motor |
|
19. |
Blower unit |
20. |
Blower unit assembly |
A. |
Heater core pipe support |
|
B. |
Evaporator lower cover |
C. |
Mode door motor bracket |
Heating and Cooling Unit Assembly
Removal and Installation
Removal and Installation
REMOVAL
Discharge
the refrigerant. Refer to Recycle Refrigerant.
Remove bolt
(A) and disconnect internal heat exchanger from expan ...
