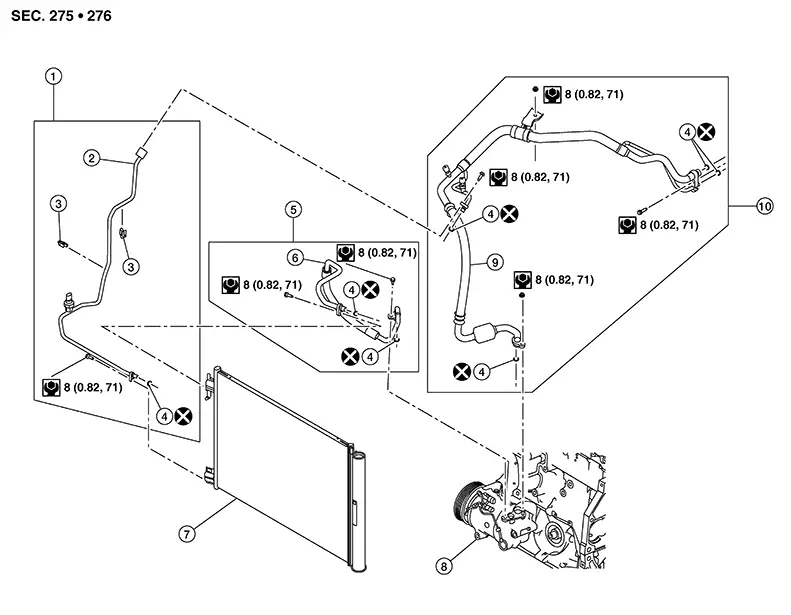

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
High-pressure pipe assembly |
2. |
High-pressure pipe |
3. |
Clip |
|
4. |
O-ring |
5. |
High-pressure flexible hose assembly |
6. |
High-pressure flexible hose |
|
7. |
Condenser |
8. |
Compressor |
9. |
Internal heat exchanger |
|
10. |
Internal heat exchanger assembly |
High-Pressure Flexible Hose
Removal and Installation
Removal and Installation
REMOVAL
Discharge
the refrigerant. Refer to Recycle Refrigerant.
Remove
front under cover. Refer to Removal and Installation.
...
