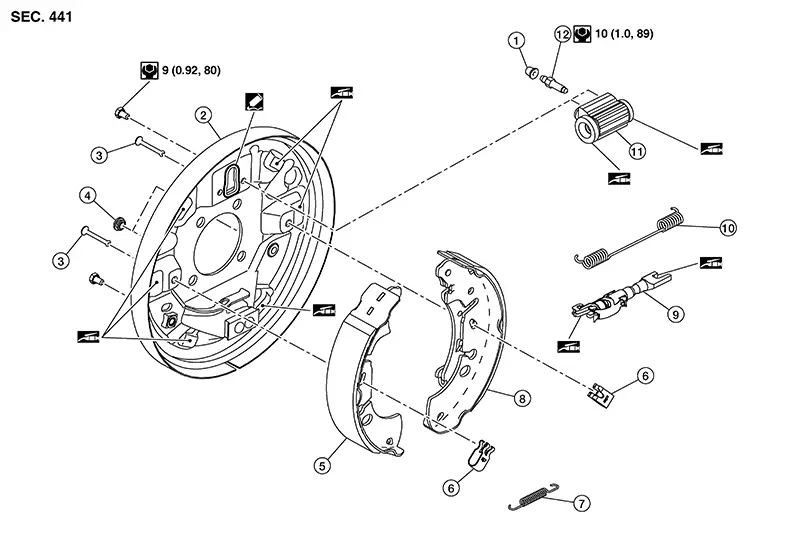

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Bleeder Cap |
2. |
Back plate |
3. |
Shoe hold pin |
|
4. |
Plug |
5. |
Brake shoe (leading side) |
6. |
Retainer |
|
7. |
Return spring (lower side) |
8. |
Brake shoe (trailing side) |
9. |
Adjuster |
|
10. |
Adjuster spring |
11. |
Wheel cylinder |
12. |
Bleeder Valve |
|
|
Molyguard GS 2039 or Kluber Syntheso GLEP 1 grease |
|
Silicone sealant |
Removal and Installation
Removal and Installation
Warning:
Clean dust on the rear brake assembly using a
vacuum dust collector to minimize the hazard of airborne particles
or other material.
CAUTI ...
