Nissan Sentra Service Manual: AIR Breather hose

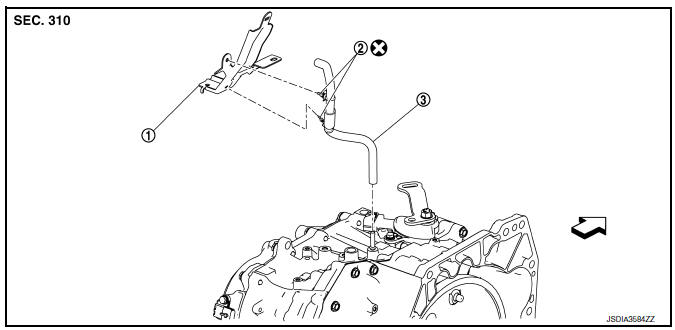

Exploded View
- Harness bracket
- Clip
- Air breather hose
Vehicle front
Always replace after every
disassembly.
Removal and Installation
REMOVAL
- Remove clips from harness bracket
- Remove air breather hose from transaxle assembly.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- Do not bend the air breather hose to prevent damage to the hose.
- Do not reuse clips.
- Securely install the clips to the harness bracket.
- Be sure to insert it fully until its end reaches the stop when inserting air breather hose (1) to transaxle tube (A).
- Install air breather hose to transaxle tube so that the paint mark (B) is facing frontward.
TCM
Exploded View
Bracket
TCM
: Vehicle front
: NВ·m (kg-m, in-lb)
Removal and Installation
CAUTION:
When replacing TCM, note the “CVTF DETERIORATION DATE” value
displ ...
G Sensor
Exploded View
G sensor
Bracket
Vehicle front
NВ·m (kg-m, ft-lb)
NВ·m (kg-m, in-lb)
Removal and Installation
WARNING:
Do not leave any objects (screwdrivers, tools, etc.) on ...
