Nissan Sentra B18 (2020-2025) Service Manual: Exploded View

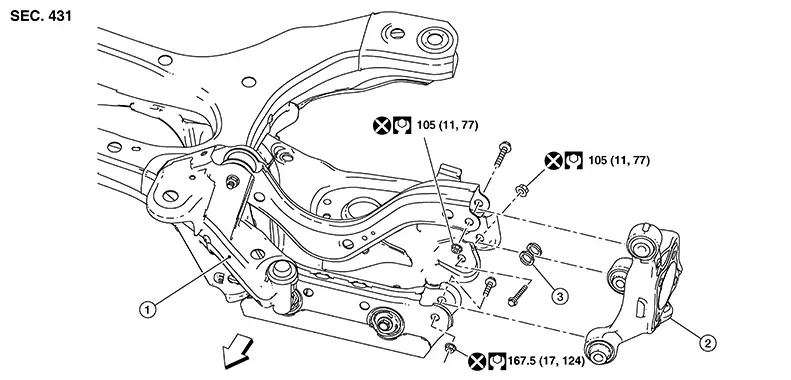

With Drum Brake
|
1. |
Rear suspension assembly |
2. |
Rear knuckle |
3. |
bushings |
|
|
Front |

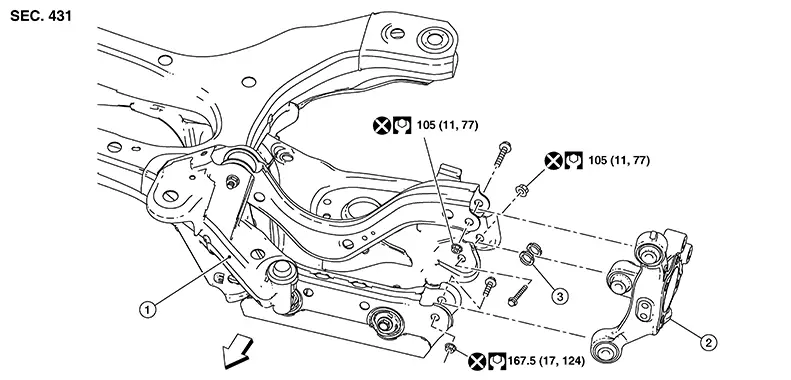

With Disc Brake
|
1. |
Rear suspension assembly |
2. |
Rear knuckle |
3. |
Bushing |
|
|
Front |
Rear Knuckle
...
Removal and Installation - Disc Brake
Removal and Installation - Disc Brake
REMOVAL
Remove rear
hub assembly. Refer to Removal and Installation.
Place a
suitable jack under the outer end of the rear lower link to relieve
...
