Nissan Sentra B18 (2020-2025) Service Manual: Exploded View

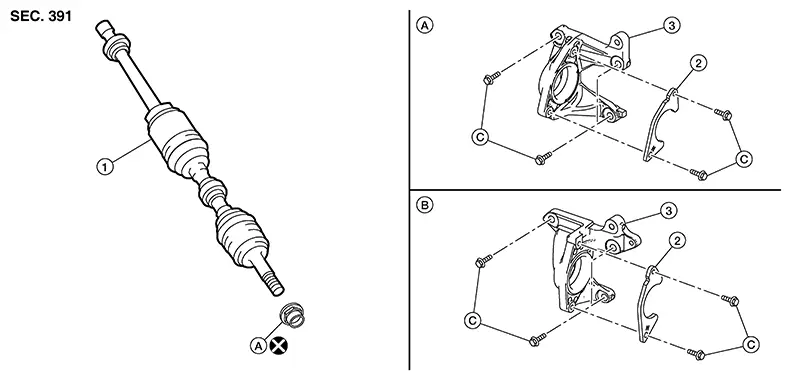

Exploded View

RH

1.

Front drive shaft

2.

Bearing retainer

3.

Support bearing bracket

A.

Support bearing bracket (CVT)

B.

Support bearing bracket (MT)

C.

Refer to Installation.
