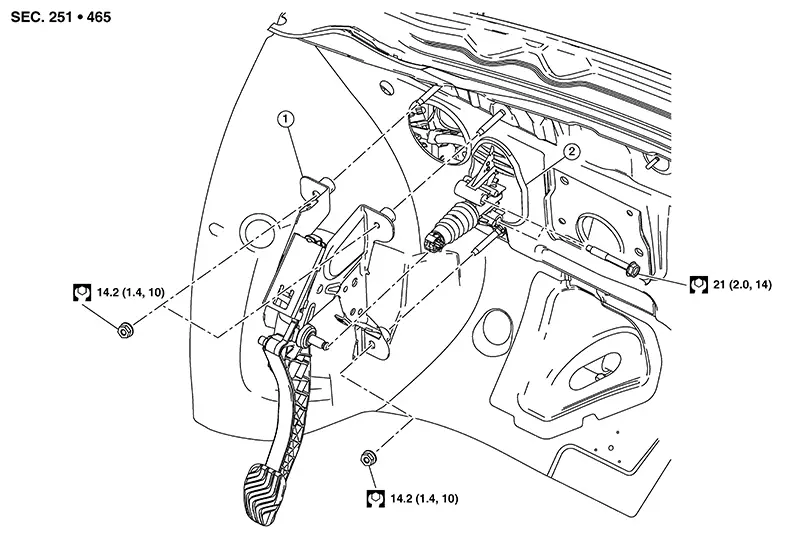

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Clutch pedal |
2. |
Clutch master cylinder |
Clutch Pedal
...
Removal and Installation
Removal and Installation
REMOVAL
If
necessary, remove instrument lower panel LH. Refer to Removal and Installation.
Using a
suitable tool, release clutch master cylinder rod end (A) f ...
