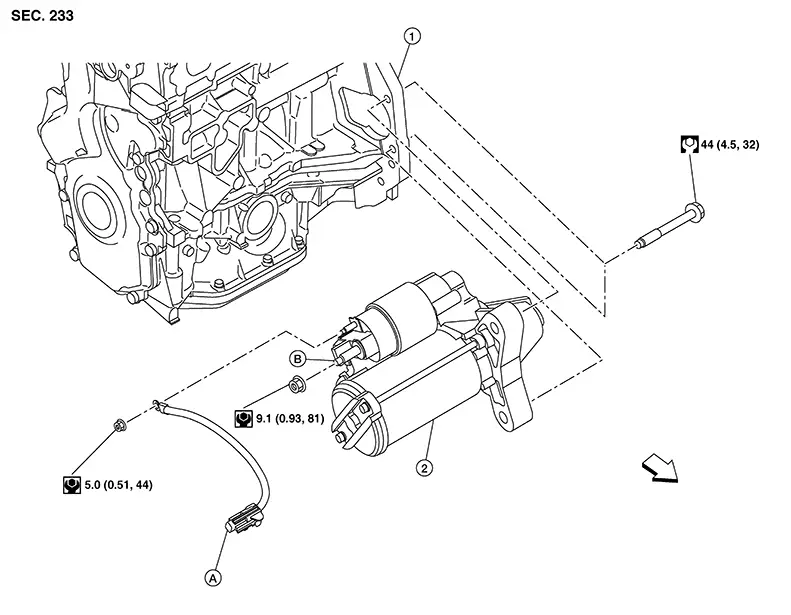

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Cylinder block |
2. |
Starter motor |
A. |
Terminal “S” harness |
|
B. |
Terminal “B” |
|
Front |
||
Starter Motor
...
Removal and Installation
Removal and Installation
REMOVAL
Disconnect
the battery negative terminal. Refer to Battery Disconnect.
Remove
front undercover. Refer to Removal and Installation.
Remove
sta ...
