Nissan Sentra B18 (2020-2025) Service Manual: Evap Canister Purge Volume Control Solenoid Valve

Removal and Installation

Removal and Installation

REMOVAL

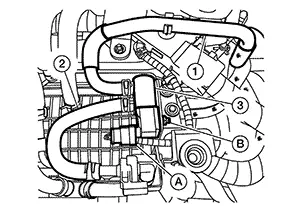

Disconnect harness connector (A) from EVAP canister purge volume control solenoid valve (3).

Remove EVAP hose B (1) and EVAP hose C (2) from EVAP canister purge volume control solenoid valve.

Remove nut (B), then remove EVAP canister purge volume control solenoid valve.

INSTALLATION

Installation is in the reverse order of removal.

Note:

  • Install hoses with marks and hose clamp pawls facing up.

  • The angle (B) created by the hose clamp pawl and the specified line (A) must be within ±15° as shown in the figure.

  • To install hose clamps (1), check that the dimension (A) from the end of the radiator hose to the hose clamp is within the reference value.

    (A)

    : 3 – 7 mm (0.12 – 0.28 in)
