Nissan Sentra B18 (2020-2025) Owner's Manual: Engine compartment check locations
2.0L 4 cylinder (MR20DD engine model)

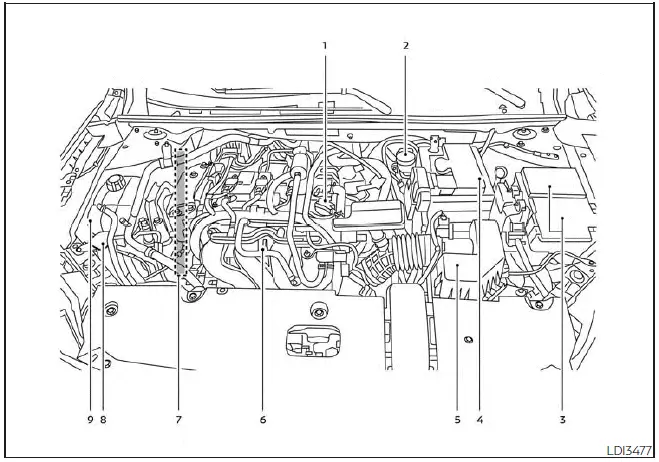

This illustration shows the main service and inspection points in the Nissan Sentra engine compartment, allowing owners to perform basic checks with confidence.
- Engine oil filler cap
- Brake and clutch (if so equipped) fluid reservoir
- Fuse and relay box
- Battery
- Air cleaner
- Engine oil dipstick
- Drive belt location
- Windshield-washer fluid reservoir
- Engine coolant reservoir
NOTE:
Your Nissan Sentra may not be equipped with an engine cover, depending on model and market specifications.
