Nissan Sentra B18 (2020-2025) Service Manual: Inspection
If a compressor is malfunctioning (internal noise, insufficient cooling), check the compressor oil.
-
COMPRESSOR OIL JUDGMENT
-
-
Remove the compressor. Refer to Removal and Installation.
-

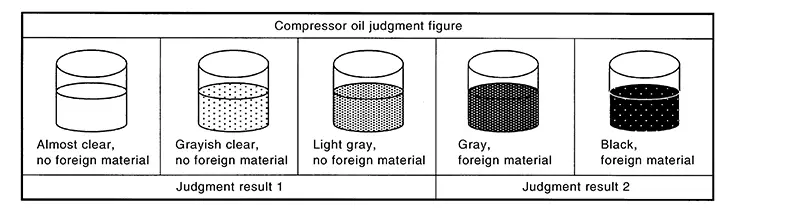

Sample compressor oil and judge below according to the figure.
-
Replace compressor only.
Judgement result 2>>Replace compressor and liquid tank.
-
Description
Description
MAINTENANCE OF OIL LEVEL
The compressor oil is circulating in the system
together with the refrigerant. It is necessary to fill compressor
with oil when replacing A/C system pa ...
Perform Oil Return Operation
Perform Oil Return Operation
CAUTION:
If a large amount of refrigerant or oil leakage
is detected, do not perform oil return operation.
Start the
engine and set to the foll ...
