Nissan Sentra B18 (2020-2025) Service Manual: Ecm

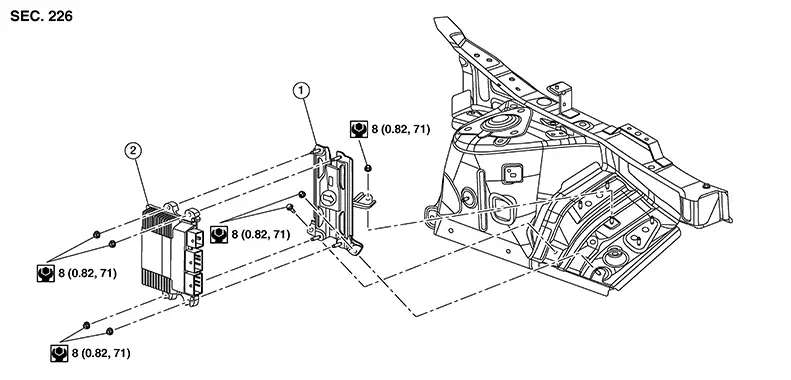

Ecm : Exploded View
|
1. |
Bracket |
2. |
ECM |
Ecm : Removal & Installation
CAUTION:
-
Perform "ADDITIONAL SERVICE WHEN REPLACING ECM". Refer to Work Procedure.
-
When replacing the ECM, a new ECM must be used. The functions controlled by the ECM do not operate properly if a ECM fromanother Nissan Sentra vehicle is used.
REMOVAL
Remove the battery tray. Refer to Removal and Installation (Battery Tray).
Disconnect the harness connectors from the ECM. Refer to Harness Connector (lever locking type).
Remove nuts and ECM from ECM bracket.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Perform "ADDITIONAL SERVICE WHEN REPLACING ECM". Refer to Work Procedure.
Electric Intake Valve Timing Control Module
Electric Intake Valve Timing Control Module : Exploded View
ELECTRIC INTAKE
VALVE TIMING CONTROL MODULE : Exploded View
...
